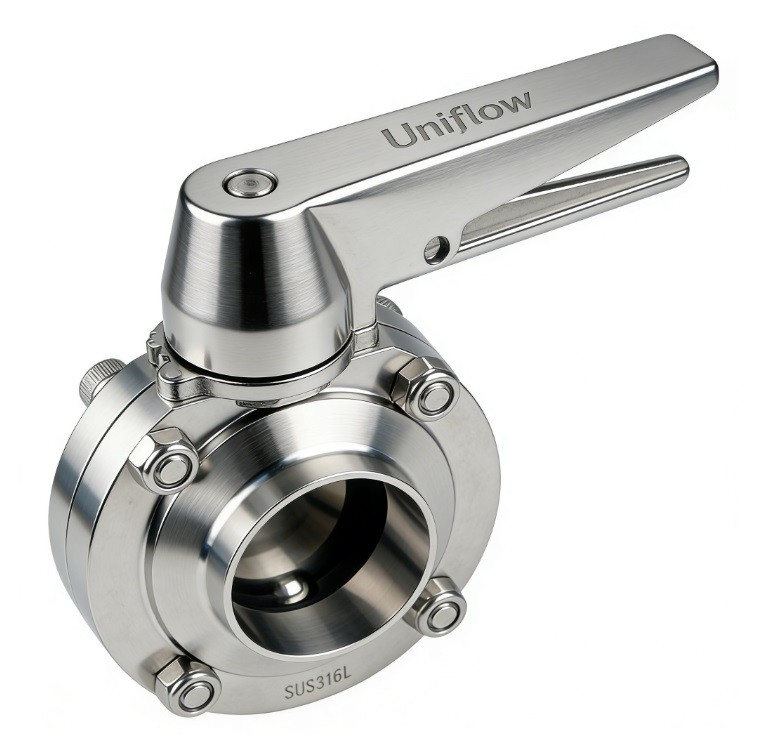

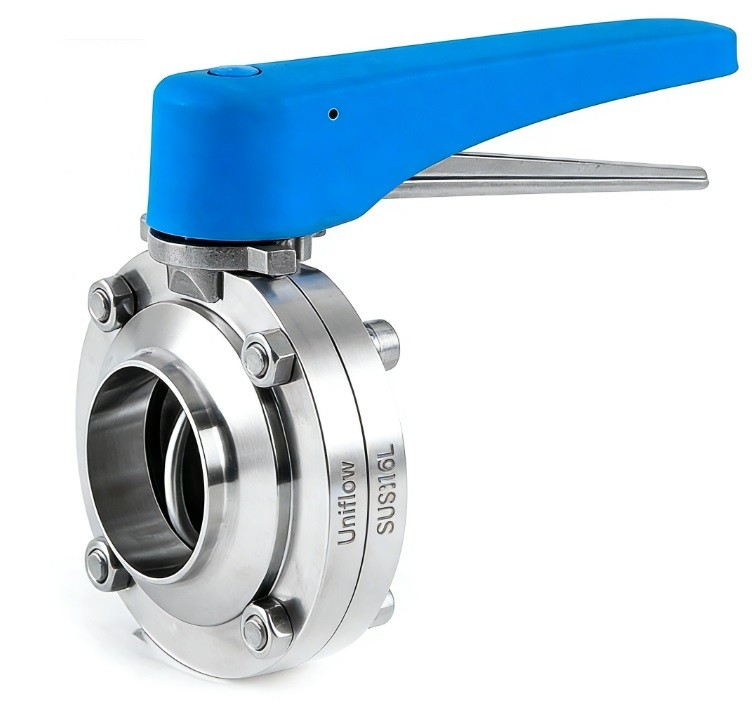

The Trigger Handle Butt-Weld 316SS Butterfly Valve is a high-integrity manual controller for permanent sanitary lines. The butt-weld ends ensure a leak-proof, crevice-free connection to headers, while the 316L Stainless Steel body offers maximum corrosion resistance. Its multi-notch trigger handle allows for precise flow throttling. Equipped with an EPDM seat, it handles acids, alkalis, and steam making it ideal for CIP-intensive food and pharma processes.
Technical Attributes: Trigger Handle Weld-End Valve (EPDM)
1,Size Range,1/2" to 6" (DN15 – DN150)
2,Body Material,ASTM A270 Stainless Steel 316L
3,Seat Material,Black EPDM (Ethylene Propylene Diene Monomer)
4,Handle Type,Multi-position Trigger (Squeeze) Handle
5,End Connection,Butt-Weld (Matches Tube OD/Wall Thickness)
6,Surface Finish,Internal Ra<0.4μm; External Ra<0.8μm
7,Max Pressure,10 Bar (145 PSI) at ambient temperature
8,Temp. Range,−20∘C to +135∘C (Short term +150∘C for SIP)
9,Throttling steps,15° increments (Standard 12-position plate)
10,Compliance,"3-A Sanitary, FDA 21CFR177.2600, CE/PED"
11,Seal Compatibility,"Excellent for Water, Steam, Dilute Acids, and Alkalis"
12,Seal Restriction,"Not for use with Oils, Greases, or Hydrocarbons"
13,Cleaning,Fully CIP/SIP (Steam-in-Place) compatible
14,Disk Design,Polished 316L spherical disk for bubble-tight seal
15,Body Style,Two-piece split body (Maintenance-friendly)
