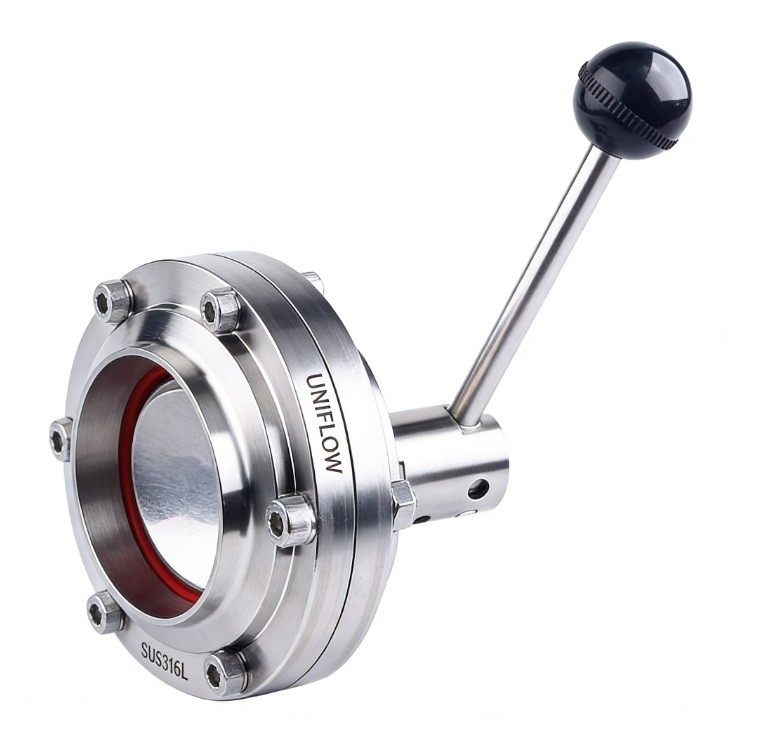

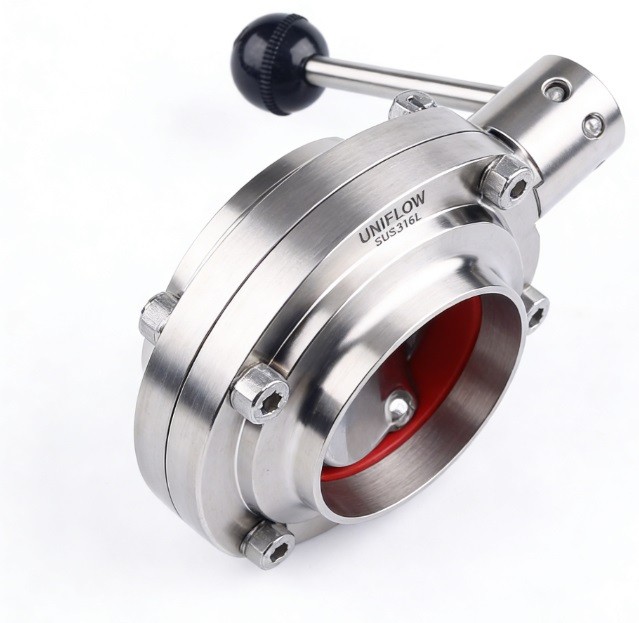

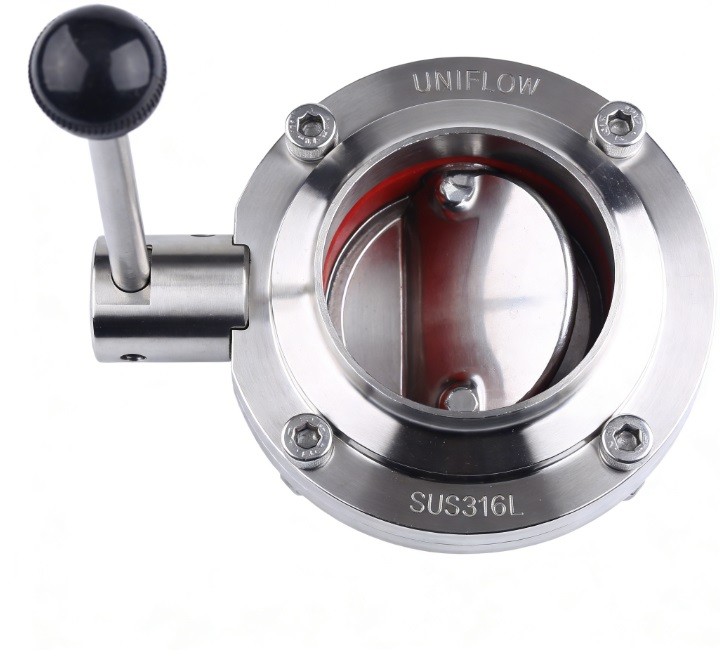

Hygienic butt welding butterfly valve

Technical Attributes: Hygienic Butt-Welding Butterfly Valve

1,Size Range,1/2" to 12" (DN10 – DN300)

2,Body Material,Forged or Investment Cast Stainless Steel 316L

3,End Connection,Plain Butt-Weld ends (Squared for orbital welding)

4,Pipe Standards,"Matches ASME BPE, DIN 11850, or ISO 2037 tubing"

5,Internal Finish,Mirror Polish Ra≤0.4μm (Grit 400)

6,External Finish,Bright/Satin Polish Ra≤0.8μm

7,Seal Material,"FDA-grade EPDM (Standard), Silicone, FKM, or HNBR"

8,Pressure Rating,10 Bar (145 PSI) working pressure

9,Temp. Range,-10°C to +135°C (150°C for sterilization cycles)

10,Cleanability,Fully CIP/SIP compatible; No dead-leg design

11,Compliance,"3-A Sanitary, FDA 177.2600, USP Class VI"

12,Structure,Three-piece or Two-piece split body design

13,Operation,Manual (Trigger/Pull) or Actuated (Pneumatic/Electric)

14,Disk Geometry,Spherical machined disk for low torque & high flow

15,Maintenance,Accessible internals by removing body bolts
