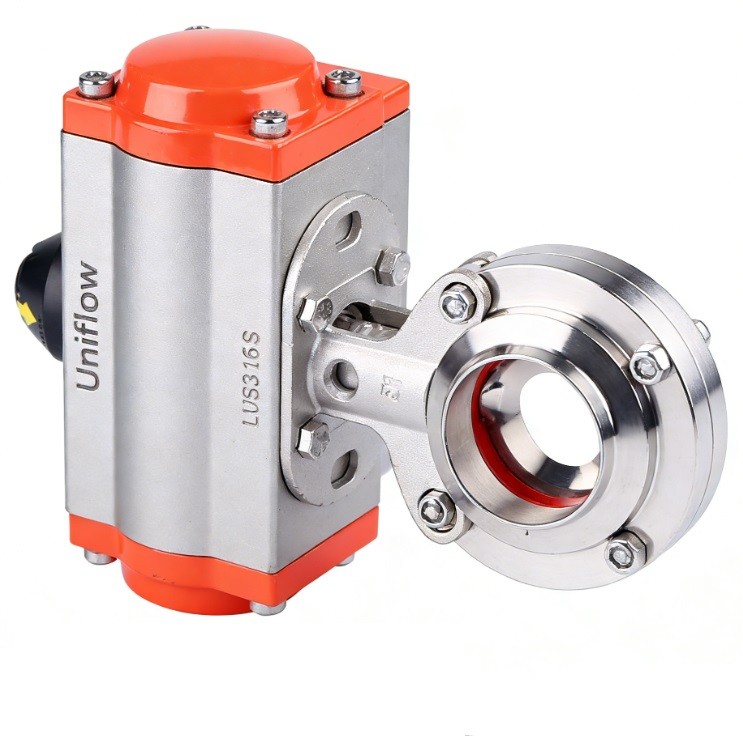

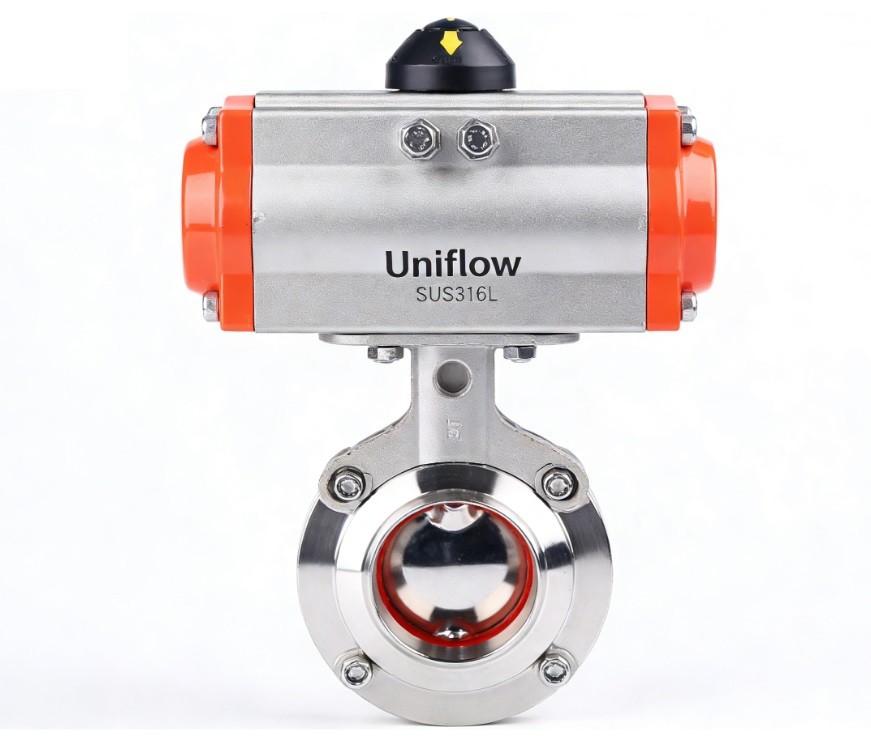

The Sanitary Pneumatic Welded Butterfly Valve is an automated flow-control solution for permanent high-purity pipelines. It features a polished SS316L body with butt-weld ends for leak-proof integration. The pneumatic actuator allows for remote operation via compressed air, supporting "Normally Closed," "Normally Open," or "Double Acting" modes. These valves are 3A/FDA compliant, CIP-able, and often include a control top for electronic position feedback in automated plants.
Technical Attributes: Sanitary Pneumatic Welded Butterfly Valve
1,Size Range,1/2" to 8" (DN15 – DN200)
2,Body Material,Forged or Investment Cast Stainless Steel 316L
3,Actuator Type,Pneumatic (Stainless Steel or Anodized Aluminum)
4,Functionality,Spring Return (NC/NO) or Double Acting (DA)
5,End Connection,"Butt-Weld (Matches ASME BPE, DIN, or ISO tube)"
6,Air Supply,5.0 to 7.0 bar (72 to 101 PSI) dry filtered air
7,Surface Polish,Internal Ra≤0.4μm; External Ra≤0.8μm
8,Seal Material,"FDA EPDM (Standard), Silicone, or FKM (Viton)"
9,Max Pressure,10 bar (145 PSI) line pressure
10,Temp. Range,-10°C to 135°C (150°C for sterilization)
11,Feedback Options,"Inductive Sensors or ""C-Top"" Control Unit"
12,Control Logic,Solenoid Valve (24VDC or 110/220VAC)
13,Cleaning,Fully CIP (Clean-in-Place) & SIP (Steam-in-Place)
14,Compliance,"3-A Sanitary, FDA 177.2600, CE/PED"
15,Maintenance,Actuator is field-reversible (NC to NO)
