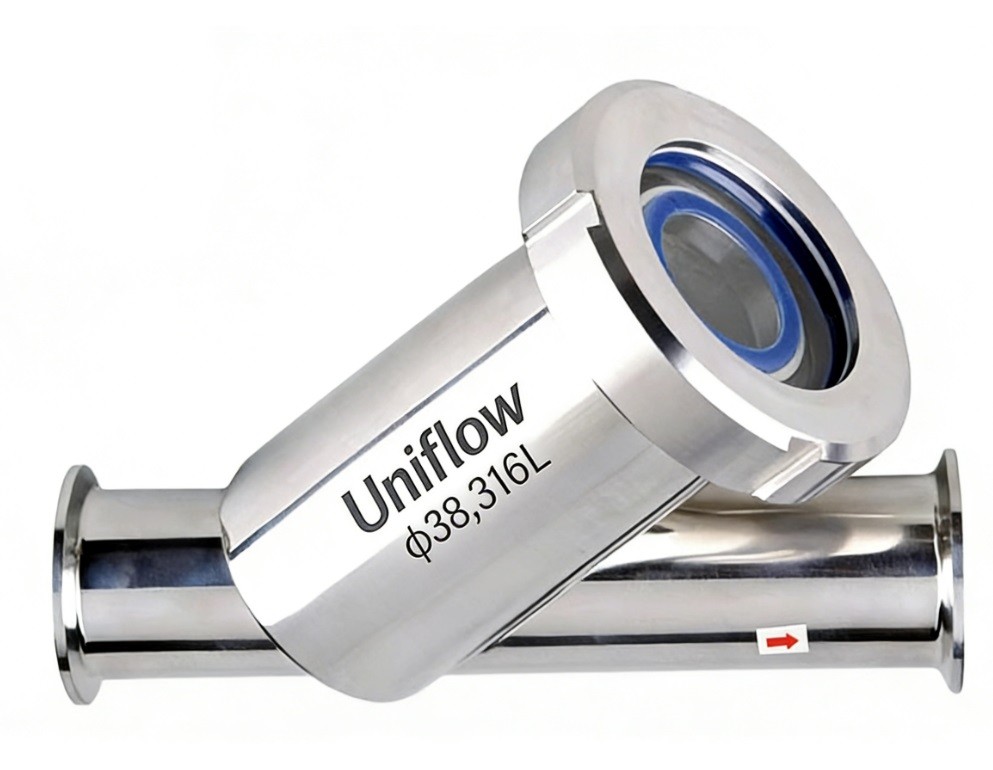

Hygienic Y-Type Strainer with Sight Glass
This hybrid component combines filtration and real-time monitoring. The Y-pattern traps solids in a stainless steel mesh, while the integrated borosilicate sight glass allows operators to visually inspect the accumulation of debris or fluid clarity without stopping the line.
Visibility: Instant check on filter clogging and flow color.
Hygiene: AISI 316L body with Tri-Clamp ends for sterile processing.
Safety: High-strength glass handles SIP/CIP temperatures.
Technical Attributes: Hygienic Y-Type Strainer with Sight Glass
1,Primary Function,Dual-purpose: Fluid filtration and visual flow monitoring.
2,Sight Glass Material,Borosilicate Glass (high thermal shock resistance).
3,Body Material,AISI 316L (1.4404) Stainless Steel for all wetted parts.
4,Connection Type,"Tri-Clamp (TC), DIN Union, or SMS for sanitary use."
5,Filter Element,Removable 316L Stainless Steel mesh or perforated plate.
6,Mesh Sizes,30 mesh to 400 mesh (approx. 500μm to 35μm).
7,Surface Finish,Internal Ra ≤ 0.4 μm; External mirror or satin polish.
8,Seal Material,EPDM or FKM (Viton); FDA 21 CFR 177.2600 compliant.
9,Glass Protection,Optional stainless steel protective cage or shield.
10,Working Pressure,Rated up to 10 bar (145 psi) (limited by glass thickness).
11,Operating Temp.,Max 150°C (limited by the glass/gasket thermal limit).
12,Maintenance,Clamp-style bonnet for rapid sight glass and mesh removal.
13,Cleaning,Fully compatible with CIP (Clean-in-Place) cycles.
14,Visibility,360∘ visibility or windowed view depending on model.
15,Application,Ideal for brewing (yeast monitoring) and food processing.
