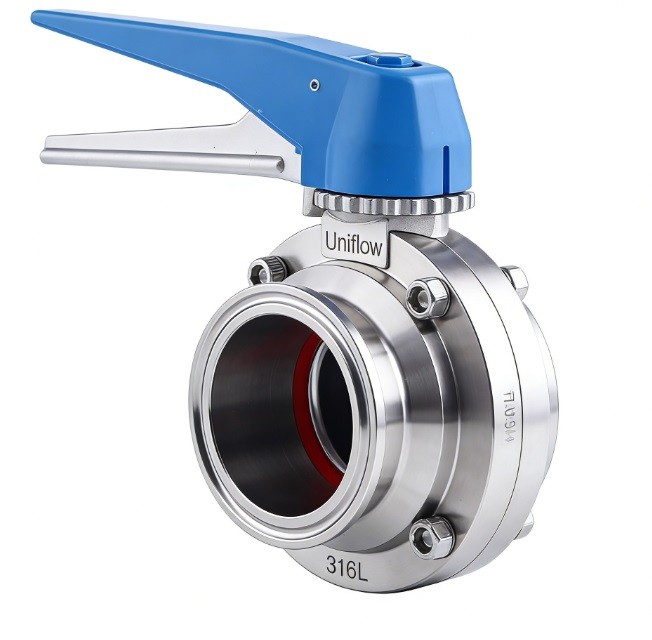

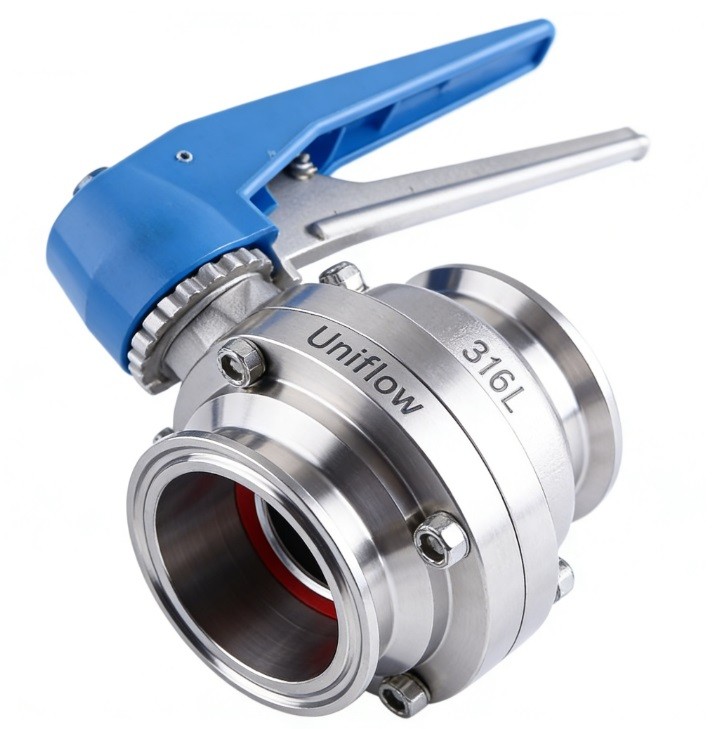

Tri-Clamp Hygienic Butterfly Valves with Trigger Handles are precision flow-control devices for food, dairy, and pharma. The multi-position trigger handle (usually 12-position) allows for manual throttling and precise flow adjustment, unlike standard 2-position pull handles. Made from polished SS304/316L, they use Tri-Clamp ends for tool-free maintenance. These valves are 3A-certified, feature FDA-grade seats, and are built to withstand rigorous CIP/SIP cleaning cycles
Technical Attributes: Trigger Handle Butterfly Valve
1,Size Range,1/2" to 10" (DN15 – DN250)
2,Handle Material,Stainless Steel 304 or Heavy-Duty Nylon/Plastic
3,Positioning,12-Position Multi-notch (Standard) for throttling
4,Body Material,Stainless Steel 316L (Contact) / 304 (Non-contact)
5,Internal Finish,Mirror Polish Ra≤0.4μm (Grit 400)
6,End Connection,Tri-Clamp (Quick-Release) per ASME BPE / DIN / SMS
7,Seat Material,"FDA-Grade Silicone, EPDM, FKM (Viton), or HNBR"
8,Max Pressure,10 bar (145 psi) for standard sizes
9,Max Temperature,130°C (266°F) for EPDM; 180°C (356°F) for Viton
10,Locking Mechanism,Spring-loaded trigger pin for secure positioning
11,Compliance,"3-A Sanitary, FDA 21CFR177.2600, CE/PED"
12,Serviceability,100% field-serviceable; no special tools required
13,Disk Design,Spherical machined disk for low torque and tight seal
14,Flow Type,Full-bore (Bi-directional flow)
15,Weight Class,Lightweight/Compact compared to actuated valves
