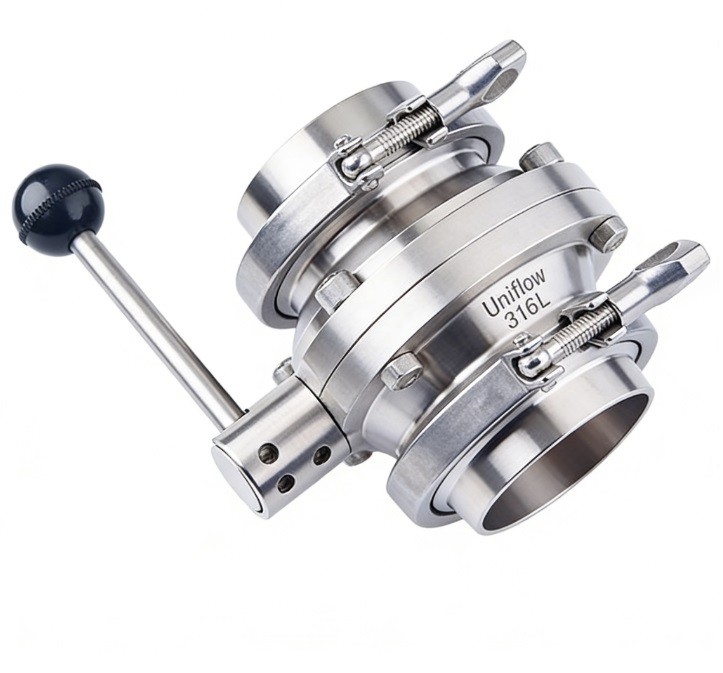

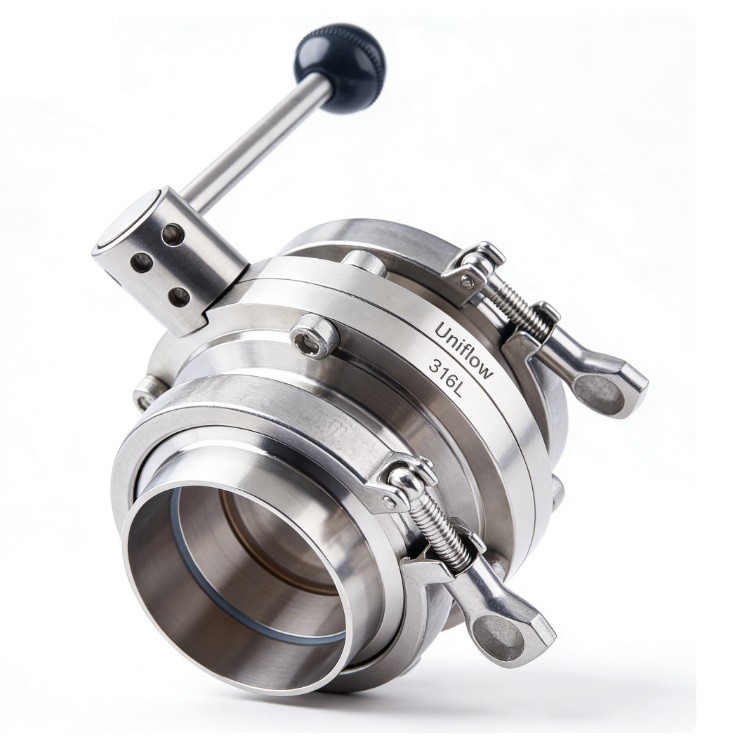

A Hygienic Tri-Clamp Butterfly Valve Whole Set is a comprehensive flow control assembly tailored for sanitary environments. It typically includes the SS304/316L valve body, FDA-approved seats, a manual handle or actuator (pneumatic/electric), and the necessary clamps and gaskets for installation. This "plug-and-play" solution ensures full compatibility between components, simplifies maintenance, and meets strict 3A/DIN standards for rapid, tool-free setup in food and pharma lines.
Technical Attributes: Hygienic Butterfly Valve Whole Set, with additional Two Tri-clamp Union;
1,Size Range,1/2" to 12" (Standard sets usually 1" to 4")
2,Valve Body,Stainless Steel 316L (Contact) / 304 (Non-contact)
3,Mating Components,"Includes 2x Ferrules, 2x Clamps, and 2x Gaskets"
4,Seal Materials,"FDA-Grade EPDM, Silicone, or FKM (Viton)"
5,Automation,Pneumatic (DA/SR) or Electric Actuator included
6,Control Accessories,Solenoid Valve (24VDC/220VAC) & Limit Switch Box
7,Surface Polish,Internal Ra<0.4μm (Mirror); External Ra<0.8μm
8,Pressure Rating,10 Bar (145 PSI) working pressure
9,End Connection,"Tri-Clamp (ASME BPE, DIN 32676, or SMS)"
10,Cleanability,Fully CIP (Clean-in-Place) & SIP (Steam-in-Place)
11,Fasteners,All SS304 Bolts/Nuts for washdown resistance
12,Feedback Type,"Mechanical Switches or Inductive ""C-Top"" Control"
13,Mounting,Direct Mount (ISO 5211) for low-profile assembly
14,Temp. Range,-10°C to +135°C (150°C for sterilization cycles)
15,Documentation,Material Mill Certs (3.1) and FDA Compliance Certs
