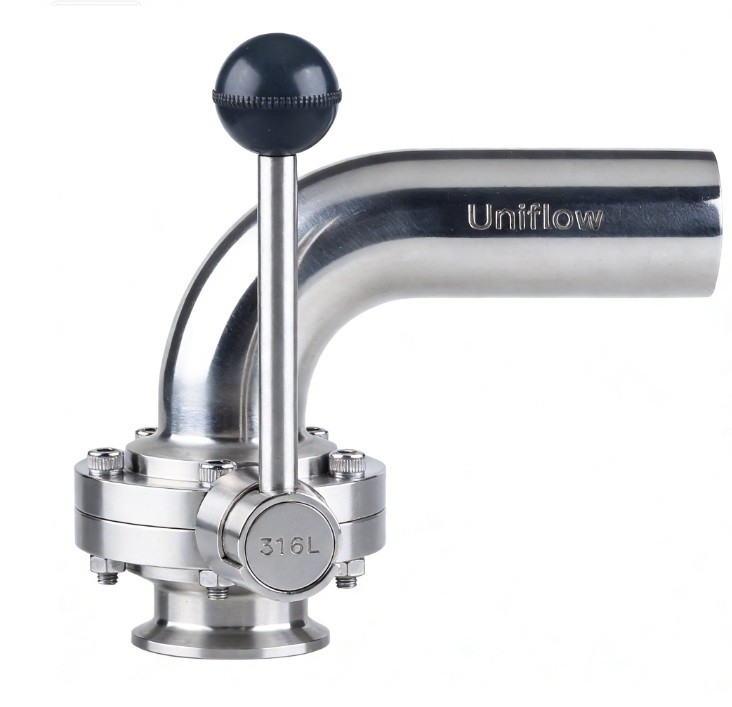

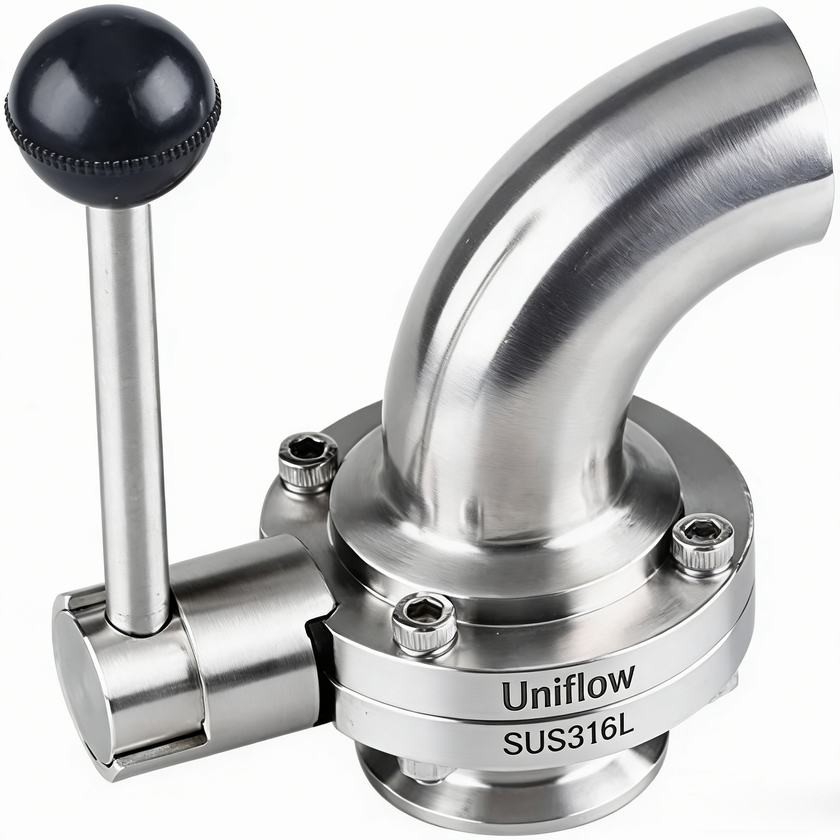

The Stainless Steel 316 Tri-Clamp Valve with Elbow is a space-saving sanitary assembly used in tight piping layouts. By integrating a 90° elbow directly with a butterfly or ball valve, it reduces the number of connections and "dead legs" where bacteria can grow. The SS316L construction provides superior corrosion resistance for acidic foods or pharma. It features Tri-Clamp ends for quick cleaning and is polished to 3A/FDA standards to ensure high-purity flow
Technical Attributes: SS316 Tri-Clamp Valve with Elbow
1,Size Range,1/2" to 4" (DN15 – DN100)
2,Primary Material,Stainless Steel 316L (ASTM A270/A269)
3,Configuration,Integrated 90° Elbow (Long or Short Radius)
4,Connection,Tri-Clamp / Sanitary Clamp (Quick-Release)
5,Internal Finish,Mirror Polish Ra≤0.4μm (Grit 400)
6,External Finish,Satin or Polished Ra≤0.8μm
7,Seat Material,FDA-grade Silicone (Standard) or EPDM/Viton
8,Pressure Rating,1.0 MPa (145 psi / 10 bar)
9,Temp. Range,-10°C to 120°C (150°C for SIP cycles)
10,Valve Type,Butterfly (Most common) or Sanitary Ball Valve
11,Compliance,"3-A Sanitary, FDA 177.2600, ASME BPE"
12,Operation,Manual (Pull/Trigger) or Pneumatic/Electric
13,Cleaning,Optimized for CIP (Clean-in-Place) flow-through
14,Dead-Leg Design,Minimized distance between valve seat and elbow radius
15,Application,"Tank bottom outlets, pump inlets, and manifold corners"
