Stainless steel gauge manifold 2 valve male to female NPT

Detailed Product Introduction

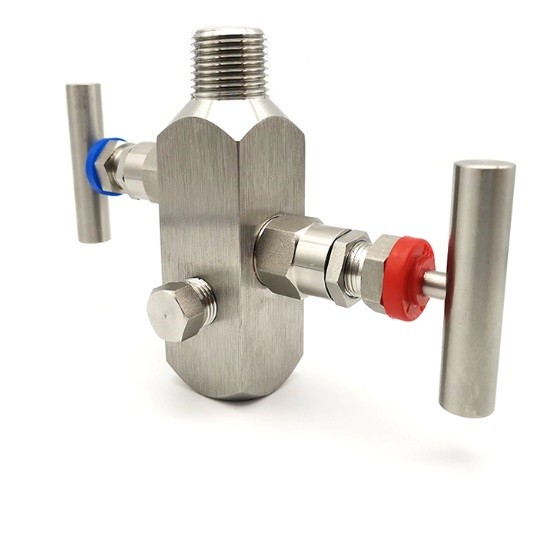

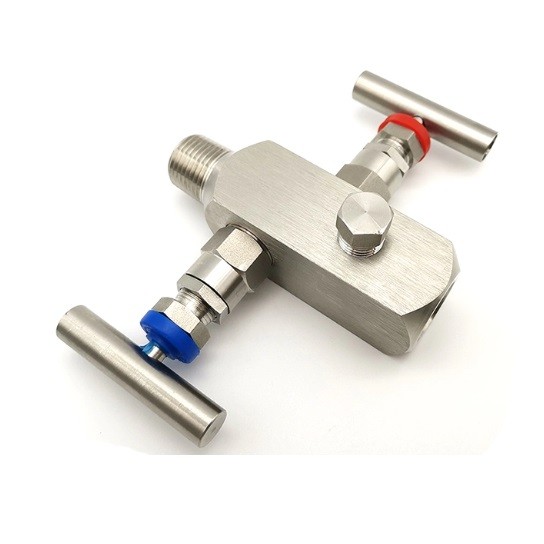

The series integrated 2-way stainless steel instrument gauge manifold valve is a high-performance block-and-bleed component engineered to streamline the installation, calibration, and isolation of pressure gauges, transducers, and transmitters. CNC-machined from a single block of heavy-duty forged bar-stock stainless steel, this compact manifold houses one primary isolate/block valve and one dedicated vent/bleed valve. The valve assemblies feature highly functional, color-coded dust caps (Red for isolation and Blue for venting/calibration processes) paired with ergonomic metal T-handles to eliminate operational error in the field. By permitting safe process isolation and venting of trapped pressure prior to instrument removal or zero-point calibration, it significantly reduces maintenance downtime and guarantees leak-free reliability in high-pressure processing lines.

Technical Specifications

• Manifold Configuration: 2-Valve Integrated Block and Bleed Instrument Manifold

• Functional Layout: One Primary Block (Isolate) Valve, One Vent (Bleed/Test) Valve

• Primary Body Material: Premium Bar-stock Stainless Steel 316 (SS316) / SS316L / SS304

• Stem Tip Engineering: Non-rotating hardened stem tip design preventing seat galling for extended lifespan

• Handle Assembly Style: Heavy-duty ergonomic stainless steel T-bar handles with secure locking set screws

• Visual Safety Coding: Distinct color-coded functional rings on stems (Red: Isolate/Block; Blue: Vent/Bleed)

• Stem Packing Material: High-purity adjustable PTFE standard / High-density Graphite for thermal grids

• Process Inlet Port Size: 1/2" NPT Male (or alternative threaded configurations like BSPT/G)

• Instrument Outlet Port Size: 1/2" NPT Female for direct gauge or transmitter mounting alignment

• Vent/Bleed Outlet Connection: Integrated 1/4" NPT Female vent port pre-fitted with a removable blanking plug

• Nominal Pressure Capacity: Rated for continuous heavy-duty service up to 6000 PSI (414 Bar)

• Operational Temperature Range: Continuous performance from -54°C up to +204°C with soft PTFE sealing elements

• Seat Geometry Pattern: Metal-to-metal bubble-tight integrated body seat configuration for rigorous shut-off

• Sealing Performance Rating: Meets or exceeds ANSI Class VI and EN 12266-1 Rate A zero-leakage standards

• Stem Protection Guard: Internal safety back-sealing mechanism prevents operational stem blowout under full load

• Bonnet Locking System: Robust safety bonnet locking pins prevent accidental disassembly during high-vibration service

• Internal Flow Passages: Smooth-bore internal pathways polished to maximize flow efficiency and prevent media clogging

• Shell Hydrostatic Validation: 100% factory hydro-tested at 1.5 times the maximum rated engineering limit

• Manufacturing Foundations: Fabricated and certified in strict accordance with MSS SP-99, ASME B16.34, and API 598

• Shipment Integrity Protection: Threaded interfaces are fitted with protective vinyl caps and individually clean-room packed
