SF-2B 3 way instrument manifold valve stainless steel

Detailed Product Introduction

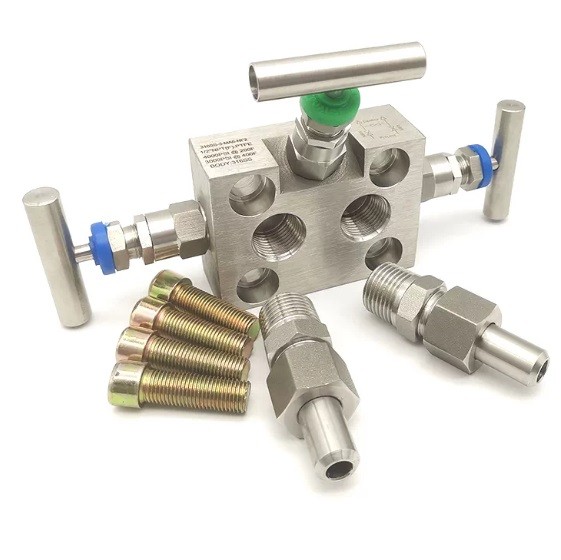

The SF-2B series integrated 3-way stainless steel instrument manifold valve is a high-performance fluid control component engineered to optimize the installation, operation, and zero-point calibration of differential pressure instruments. CNC-machined from a single block of high-density bar-stock stainless steel, this robust unit integrates two primary process isolation/block valves and one central equalization valve into a unified structural body. The valve assemblies are fitted with protective, functional color-coded dust rings (Red for block/isolation service and Blue for the equalization loop) attached to ergonomic metal T-handles to eliminate operational risk in the field. By facilitating secure process isolation and precise instrument equalization prior to maintenance or testing, it significantly minimizes downtime and guarantees a leak-free mechanical environment for critical automated process loops.

Technical Specifications

• Manifold Configuration: 3-Valve Integrated Instrument Manifold Block

• Functional Valve Layout: Two Primary Block (Isolate) Valves, One Central Equalize Valve

• Model Designation: SF-2B Instrumentation Series Standard Design

• Primary Body Metallurgy: Premium Bar-stock Stainless Steel 316 (SS316) / SS316L / SS304

• Stem Tip Engineering: Non-rotating hardened conical stem tip preventing seat galling for extended life

• Handle Assembly Style: Heavy-duty ergonomic stainless steel T-bar handles with secure locking set screws

• Visual Safety Coding: Distinct color-coded functional rings on stems (Red: Isolate/Block; Blue: Equalize)

• Stem Packing Material: High-purity adjustable PTFE standard / High-density Graphite for high-temperature tiers

• Process Inlet Connection: 1/2" NPT Female ports (Alternative G or BSPT thread options available)

• Instrument Outlet Connection: 1/2" NPT Female or standard flange mounting face matching standard transmitter footprints

• Nominal Pressure Capacity: Continuous heavy-duty rating up to 6000 PSI (414 Bar / 41.4 MPa)

• Operational Temperature Range: Secure performance from -54°C up to +204°C with standard soft PTFE elements

• Seat Geometry Pattern: Metal-to-metal bubble-tight integrated body seat configuration resisting high velocity erosion

• Sealing Performance Rating: Meets or exceeds ANSI Class VI and EN 12266-1 Rate A zero-leakage standards

• Stem Protection Guard: Internal safety back-sealing mechanism prevents operational stem blowout under full load

• Bonnet Locking System: Robust safety bonnet locking pins prevent accidental disassembly during high-vibration service

• Internal Flow Passages: Smooth-bore internal pathways polished to maximize flow efficiency and prevent media clotting

• Shell Hydrostatic Validation: 100% factory hydro-tested at 1.5 times the maximum rated engineering limit

• External Surface Aesthetics: Fine matte-brushed sandblasted finish with permanently laser-etched specification markings

• Manufacturing Foundations: Fabricated and certified in strict accordance with MSS SP-99, ASME B16.34, and API 598

• Shipment Integrity Protection: Interfaces are fitted with protective vinyl thread caps and individually clean-room packed
