Air Header Distribution Manifold

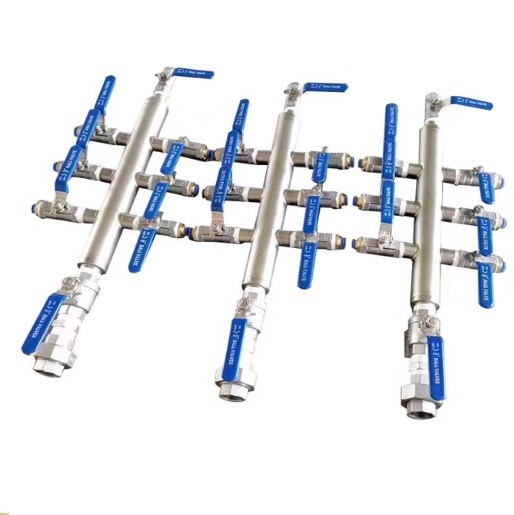

The stainless steel air distribution manifold (also widely classified as an instrument air header) is a heavy-duty, centralized pneumatic management station designed to systematically disperse compressed air from a primary supply line to multiple field instruments and pneumatic actuators. Fabricated from high-grade seamless stainless steel pipe with precision-welded branch ports, this assembly incorporates a robust flanged main inlet to handle high volumetric flow rates, multiple independent isolation ball valves for precise multi-channel output control, and a terminal isolation valve equipped for safe end-of-line condensate drainage or purging. By integrating these components into a single pre-fabricated layout, it dramatically simplifies field installation, reduces potential pipeline leak paths, and establishes a clean, organized, and easily serviceable pneumatic infrastructure within processing plants.

Technical Specifications

• Manifold Design Configuration: Multi-Port Linear Air Header Distribution Manifold with Integrated Isolation Outlets

• Main Header Body Material: Premium Seamless 316/316L or 304 Stainless Steel Pipe for optimized structural integrity

• Primary Inlet Connection: Standard ANSI/ASME B16.5 Raised Face (RF) Flange (e.g., 1", 1-1/2", or 2" Class 150/300)

• Branch Outlet Configurations: Staggered multi-port arrangement offering customized configurations (such as 4, 6, 8, 10, or 12 ways)

• Branch Isolation Mechanism: Miniature high-precision stainless steel ball valves fitted to each distribution port

• Branch Outlet Port Connections: 1/4" or 1/2" NPT/BSPP female threads or compression tube fittings for seamless instrument hookup

• Terminal Drain Port Configuration: Dedicated end-of-line or bottom-facing drain valve designed for regular moisture and condensate purging

• Maximum Working Pressure Rating: Engineered to safely sustain up to 1000 psi (69 bar) relative to valve limits

• Standard Operational Pressure: Optimized for standard instrument air supply networks ranging from 4 to 10 bar (60 to 150 psi)

• Temperature Operational Limits: -29°C to 180°C (-20°F to 356°F) depending entirely on soft seat seal material variants

• Ball Valve Seat Compound: Premium reinforced Teflon (RPTFE) or PTFE ensuring absolute bubble-tight shut-off capabilities

• Handle Assembly Layout: Ergonomic vinyl-sleeved quarter-turn lever handles providing rapid branch isolation and clear status indication

• Header Tube Welding Quality: 100% full-penetration TIG welding across all branch nipples to eliminate structural micro-leaks

• Internal Volume Geometry: Large inner diameter header design to maintain constant pressure stabilization and minimize dynamic flow drops

• Mounting Integration Options: Pre-drilled structural wall-mounting brackets or floor-standing support frames for rigid facility attachment

• Surface Coating and Finish: Fully passivated and acid-pickled internal/external surfaces to resist harsh marine or chemical environments

• Applicable Medium Profile: Highly optimized for compressed instrument air, dry nitrogen gas, and inert process blanketing gas lines

• Testing and Verification Quality: Rigorous factory pneumatic pressure test executed at 1.1 to 1.5 times the maximum rated design threshold

• Metallurgical Standard Compliance: Complete material heat traceability and certifications aligning strictly with ASTM standards

• Design Standards Reference: Fabricated and inspected in compliance with ASME B31.3 chemical plant and petroleum refinery piping codes
