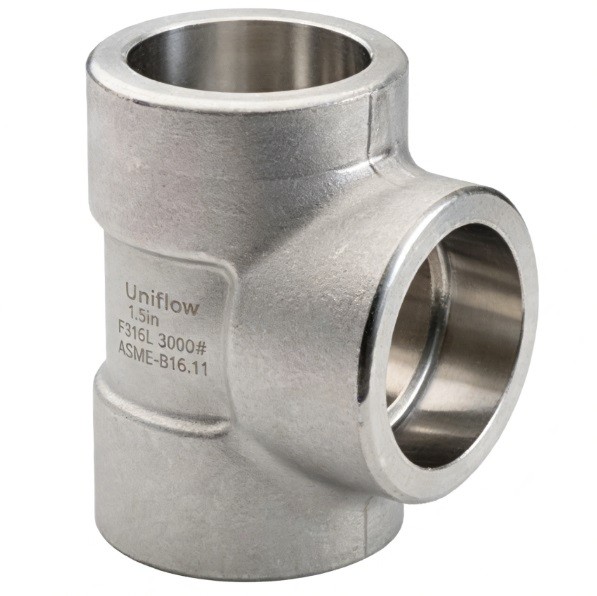

The ASME B16.11 Stainless Steel 3000# Socket Weld Tee is a premium branching fitting for high-pressure, small-bore piping. Forged from grades like 316L or 316Ti, it offers superior resistance to pitting and thermal stabilization. The socket design ensures precise alignment and a robust, leak-proof fillet weld. Rated for 3000 PSI, it is essential for pharmaceutical, marine, and chemical sectors where corrosive media and high-integrity branch connections are required in compact spaces.
Technical Attributes: SS 3000# Socket Weld Tee
Standard,ASME B16.11 / BS 3799
Material Grades,"ASTM A182 F304/L, F316/L, F316Ti, F321"
Fitting Type,Straight Tee (Equal Tee)
Pressure Class,3000 LBS (Class 3000)
Size Range,1/8" to 4" (NPS)
Manufacturing,"Forged, Solution Annealed, Machined"
End Connection,Socket Weld (SW)
Chromium Content,16.0%–20.0%
Nickel Content,8.0%–14.0%
Molybdenum (316L),2.0%–3.0%
Titanium (316Ti),5×(C+N) min –0.70% max
Tensile Strength,≥485 MPa (70 ksi)
Yield Strength,≥170–205 MPa
Heat Treatment,Solution Annealing & Water Quenching
Testing Standard,"PMI, UT, PT (Liquid Penetrant), Visual"
Hardness,≤192 HBW
Surface Finish,Pickled and Passivated
Certification,EN 10204 3.1 / MTR
Marking,"Grade, Rating, Size, Heat No, B16.11"
Primary Use,"Sanitary, Chemical, & Offshore Piping"
