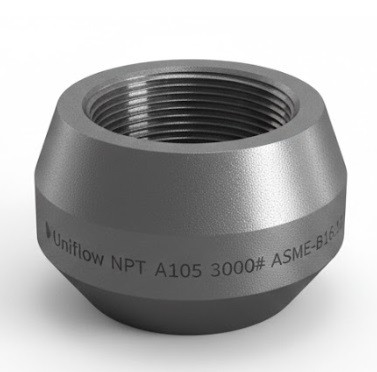

ANSI B16.11 Forged Steel STD XS SCH160 XXS Threadolet

The ASME B16.11 Forged Threadolet is a self-reinforcing branch connection used to create a 90-degree threaded outlet from a main header pipe. Designed to integrate with various wall thicknesses—from STD and XS to SCH160 and XXS—it features precision NPT internal threads. Forged for maximum structural integrity, it eliminates the need for pipe reinforcement pads. It is essential for high-pressure instrumentation and drain ports in oil refineries and heavy industrial piping.

Download

Technical Attributes: Forged Steel Threadolet

Standard,MSS SP-97 / ASME B16.11

Material Grades,"ASTM A105, A182 (F11, F22, F304/L, F316/L)"

Connection Type,Threaded Branch Outlet (90°)

Wall Thickness,"STD, XS, SCH 160, XXS"

Run Pipe Size,1/2" to 60" (NPS)

Branch Size,1/4" to 6" (NPS)

Thread Type,NPT (ASME B1.20.1) / BSPT

Manufacturing,"Forged, Heat Treated, Machined"

Pressure Class,3000 LBS / 6000 LBS

Carbon Content,≤0.35% (Grade A105)
