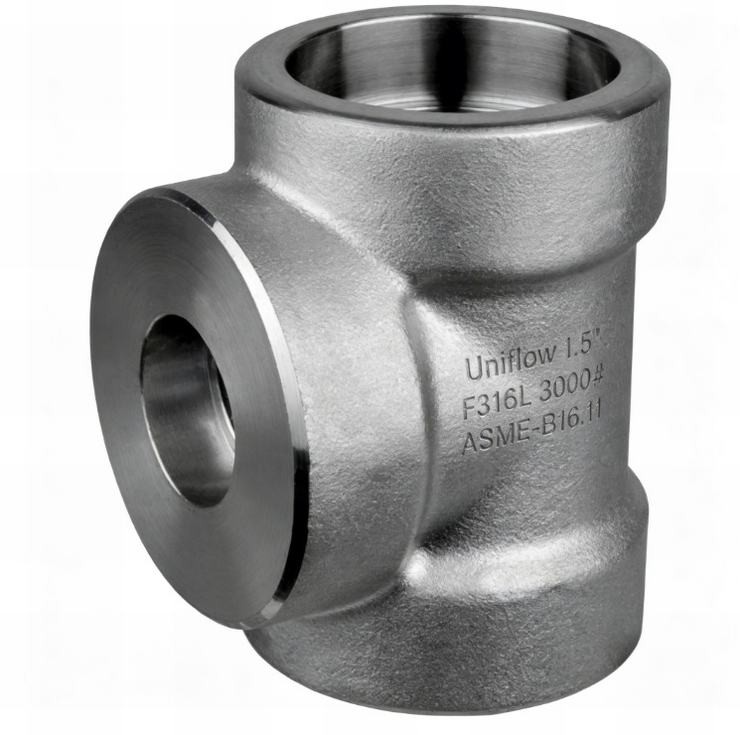

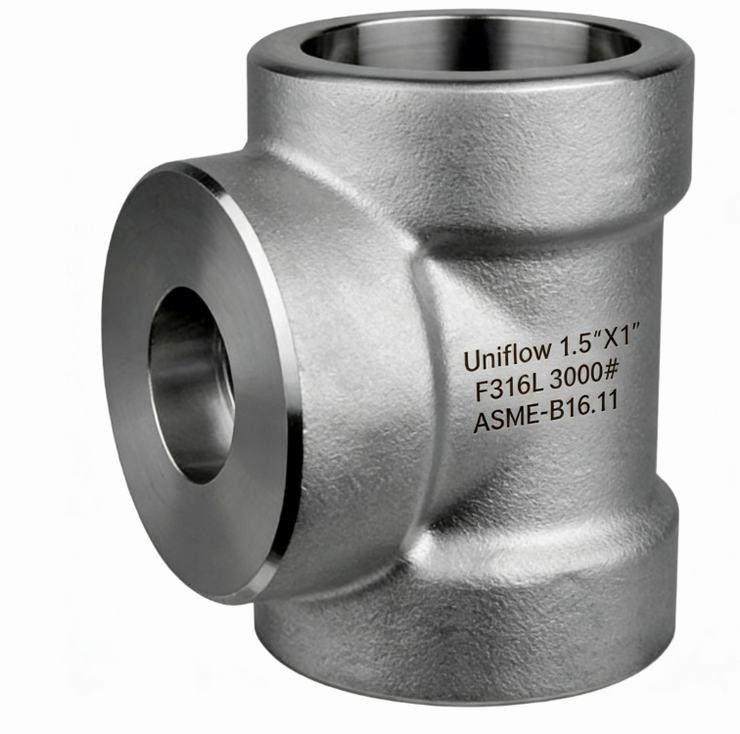

The ASME B16.11 Stainless Steel 3000# Socket Weld Reducing Tee is a high-pressure forged fitting used to connect a smaller branch line to a larger main header. Forged from premium grades like 316L or 316Ti, it offers superior resistance to pitting and thermal sensitization. The socket design ensures precise alignment and a robust, leak-proof fillet weld. Rated for 3000 PSI, it is essential for chemical, offshore, and pharmaceutical systems where reliable, space-saving branch reductions are required.
Technical Attributes: SS 3000# SW Reducing Tee
Standard,ASME B16.11 / BS 3799
Material Grades,"ASTM A182 F304/L, F316/L, F316Ti, F321"
Fitting Type,Reducing Tee (Unequal Outlets)
Pressure Class,3000 LBS (Class 3000)
Size Range,1/4"×1/4"×1/8" to 4"×4"×3"
Manufacturing,"Forged, Solution Annealed, Machined"
End Connection,Socket Weld (SW)
Chromium Content,16.0%–20.0%
Nickel Content,8.0%–14.0%
Molybdenum (316L),2.0%–3.0%
Titanium (316Ti),Stabilized against sensitization
Tensile Strength,≥485 MPa (70 ksi)
Yield Strength,≥170–205 MPa
Heat Treatment,Solution Annealing & Water Quenching
Testing Standard,"PMI, UT, PT (Liquid Penetrant), Visual"
Hardness,≤192 HBW
Surface Finish,Pickled and Passivated
Certification,EN 10204 3.1 / MTR
Marking,"Grade, Rating, Size, Heat No, B16.11"
Primary Use,High-Pressure Chemical/Sanitary Branching
