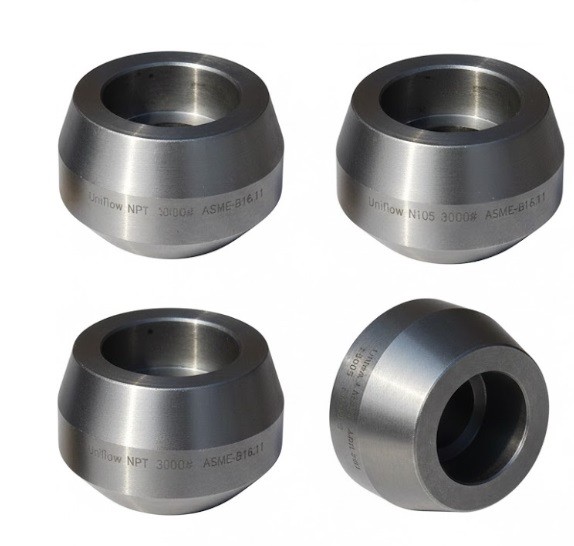

The ANSI B16.11 Sockolet is a high-strength forged outlet fitting used to provide a 90° pipe branch. Designed for high-pressure systems, it facilitates a socket-weld connection, ensuring smooth flow and structural reinforcement. It is categorized by wall thicknesses—Standard (STD), Extra Strong (XS), Schedule 160, and Double Extra Strong (XXS)—to match the header pipe's integrity and pressure rating.
Technical Attributes
Standard,ASME/ANSI B16.11
Product,Sockolet (Socket Weld Outlet)
Material,Forged Carbon/Stainless Steel
Pressure Class,"3000#, 6000#, 9000#"
Wall Thickness 1,STD (Standard)
Wall Thickness 2,XS (Extra Strong)
Wall Thickness 3,SCH 160
Wall Thickness 4,XXS (Double Extra Strong)
Size Range,"1/8"" to 4"" (Branch Size)"
Connection Type,Socket Weld
Common Grades,"ASTM A105, A182 F304/F316"
Manufacturing,"Forged, Heat Treated"
Run Pipe Size,"Up to 36"" or Flat"
Joint Type,Fillet Weld to Header
Function,Branch Reinforcement
Surface,Anti-rust Oil / Galvanized
Testing,"Hydrostatic, UT, MPI"
Application,"Oil, Gas, Petrochemical"
