Stainless Steel Instrumentation Ball Valve with Lever Handle

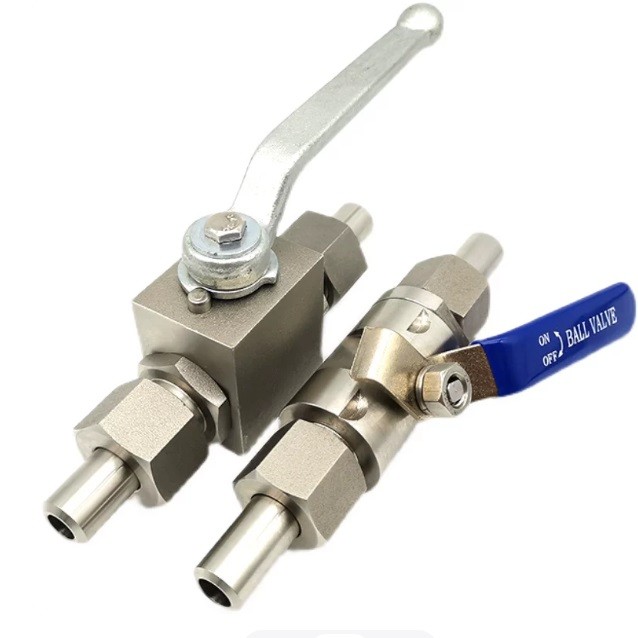

The Q21F-64P series instrumentation ball valve is designed to deliver reliable on-off flow control within compact gas supply and high-pressure fluid networks. Available in both robust square block and sleek cylindrical bar-stock body styles, it utilizes high-grade 304 stainless steel for superior oxidation and chemical resistance. Equipped with extended weldable pipe stubs and a heavy-duty vinyl-insulated or solid metallic lever handle, it provides low-torque, fast-acting isolation for critical industrial pipelines.

Technical Specifications

• Valve Model: Q21F-64P

• Valve Type: High Pressure Instrument Ball Valve / Gas Source Valve

• Body Material: 304 Stainless Steel (SUS304)

• Ball Material: Hardened 304 Stainless Steel

• Stem Material: 304 Stainless Steel

• Seat / Packing Material: Reinforced PTFE (RPTFE) / PEEK for extended lifecycle

• Handle Design: Heavy-duty lever handle (available in metallic finish or blue vinyl sleeve)

• Connection Ends: Butt-Weld (BW) / Extended tube stubs for welding or compression fittings

• Nominal Pressure Rating: PN64 / 6.4 MPa (Up to 1000 psi)

• Maximum Allowable Pressure: 64 bar at ambient temperature

• Operating Temperature Range: -20°C to 180°C (-4°F to 356°F)

• Flow Configuration: Full port / Standard port straight-through flow pattern

• Actuation Method: Manual quarter-turn (90-degree) lever rotation

• Handle Travel Stop: Built-in mechanical stops for precise open/closed alignment

• Applicable Media: Compressed air, nitrogen, inert gases, water, oil, and non-corrosive liquids

• Body Structure Options: Forged square block body or bar-stock cylindrical body

• Leakage Class: Zero-leakage bubble-tight shut-off tested to international standards

• Cleanliness Standard: Cleaned and degreased for oxygen and high-purity air line compatibility

• Port Size Options: Custom tube outer diameters available (e.g., 6mm, 8mm, 10mm, 12mm)

• Wall Thickness Compliance: Designed to match heavy-duty instrumentation tubing wall thickness

• Installation Flexibility: Bidirectional flow design allows versatile pipeline mounting orientations
