Power Plant High Pressure Shut-off Valve

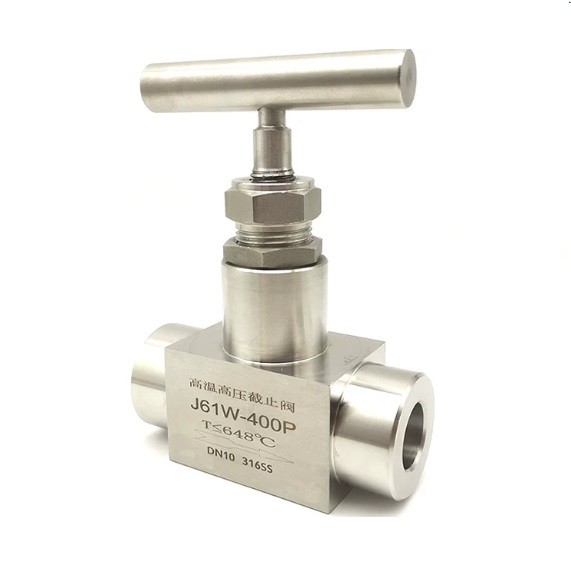

The J61W-400P is a heavy-duty industrial needle/globe valve specifically designed to handle extreme thermal and pressure stress. Utilizing a high-grade 316SS forged square body and standard socket weld ends, it ensures a permanent, leak-free connection to pipelines. The robust T-bar handle allows operators to safely achieve reliable metal-to-metal shut-off in demanding power plant, steam, and petrochemical systems.

Technical Specifications

• Valve Model: J61W-400P

• Valve Type: High Pressure High Temperature Needle Valve / Globe Valve

• Body Material: 316 Stainless Steel (316SS)

• Stem Material: Hardened 316SS / Stellite overlay

• Handle Type: Heavy-duty T-Bar handle

• Connection Type: Socket Weld (SW)

• Nominal Size: DN10 (3/8 inch)

• Pressure Rating: Class 2500 / PN400 (Up to 40 MPa / 6000 psi)

• Maximum Operating Temperature: ≤ 648°C (1200°F)

• Sealing Design: High-integrity metal-to-metal seat

• Packing Material: Flexible graphite / Grafoil for high-temperature sealing

• Flow Pattern: Straight-through pattern with unidirectional arrow indicator

• Body Structure: Forged square block body design for enhanced pressure containment

• Applicable Media: Superheated steam, water, oil, corrosive chemicals, and high-temperature gases

• Bonnet Type: Screwed-in / Union bonnet design for high safety margins

• Test Inspections: 100% shell and seat pressure tested according to API 598

• NACE Compliance: Available for sour gas service configurations upon request

• Cleanliness Level: Free from oil, grease, and industrial surface contaminants

• Wall Thickness: Meets ASME B16.34 standards for high-pressure safety

• Mounting Orientation: Can be installed in any orientation relative to flow direction

• Durability: Rated for extended lifecycle operations under severe thermal cycling
