Pneumatic high pressure ball valve PN320 PN500 stainless steel

Detailed Product Introduction

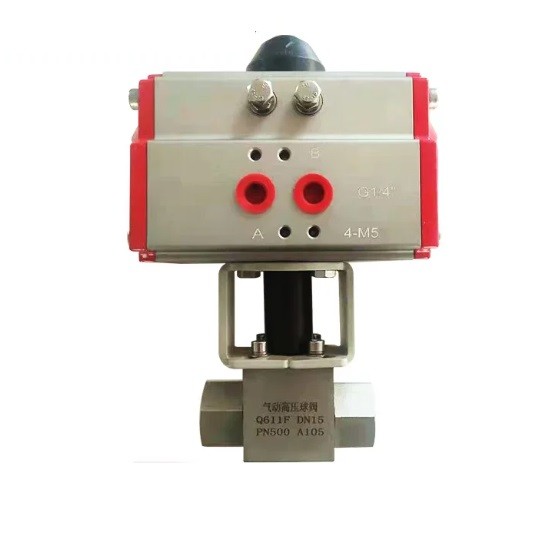

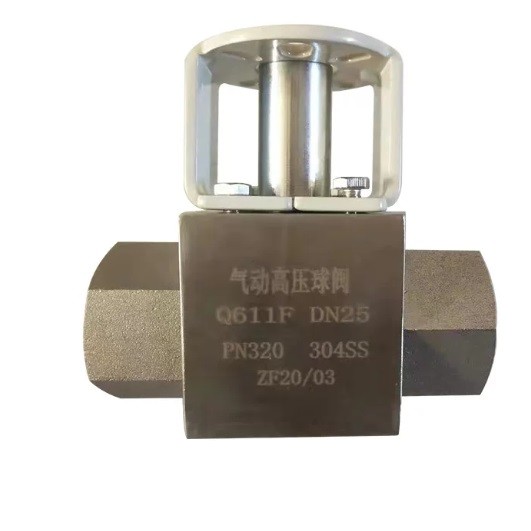

The Q611F series pneumatic high-pressure forged steel ball valve represents a premium solution for automated high-pressure media management. Machined from high-density forged square blocks (including SS304, SS316, and heavy-duty A105), this valve line is structurally optimized to withstand tremendous line pressures rating from PN320 up to PN500 (approx. 4640 to 7250 PSI). The valve is fitted with a rugged ISO 5211 standard mounting bracket connected to a precision-engineered aluminum rack-and-pinion pneumatic actuator. Featuring female threaded inlet and outlet ports, it creates a highly secure, leak-proof mechanical joint. It delivers exceptional performance under rapid, high-cycle automated cutting operations for hydraulic oils, high-pressure gases, water jetting systems, and severe process chemicals.

Technical Specifications

• Valve Mechanism: Quarter-Turn Forged Square Body Ball Valve

• Automation Type: Pneumatic Rack and Pinion Actuator (Available in Double Acting and Spring Return)

• Model Configuration: Q611F Series High-Pressure Instrumentation Standard

• Body Material Matrix: Forged Stainless Steel 304 (SS304), Stainless Steel 316 (SS316), or Carbon Steel A105

• Ball and Stem Metallurgy: Heavy-duty, high-tensile Stainless Steel 316 / F51 Duplex

• Primary Valve Seat Packing: High-density PEEK / POM / Delrin / PPL to sustain ultra-high structural pressure loads

• Nominal Pressure Rating Tiers: PN320 (32 MPa / 320 Bar) and PN500 (50 MPa / 500 Bar / Up to 7250 PSI)

• Size Availability: DN15 (1/2 Inch), DN20 (3/4 Inch), DN25 (1 Inch) up to DN50 (2 Inch)

• Connection Standards: Female Threaded Ends conforming to NPT, BSPT, or ISO G-Thread specifications

• Actuator Control Interface: NAMUR standard solenoid valve interface with G1/4" air supply ports

• Air Supply Operation Range: 3.0 to 8.0 bar (0.3 to 0.8 MPa) driving pneumatic pressure

• Top Mounting Pad Spec: ISO 5211 direct mount configuration with heavy-duty open-type yoke yoke bracket

• Sealing Performance Rating: ANSI Class VI / Zero Bubble Leakage under full differential pressure testing

• Operational Temperature Range: -29°C to +150°C (with PEEK/POM seats) / Up to +230°C under high-temperature PPL builds

• Flow Velocity Profile: Optimized internal full-bore or reduced-bore fluid path minimizing cavitation and pressure drops

• Stem Engineering Protections: Heavy-duty blowout-proof stem assembly designed safely from internal high pressure

• Visual Diagnostics: Top-mounted position indicator on the actuator cap showing immediate clear Open/Close alignment

• Actuator Housing Build: Hard anodized aluminum extruded body with epoxy coated cast aluminum end caps

• Accessory Adaptability: Seamlessly supports limits switches, 5/2-way solenoid valves, and pneumatic positioners

• Design and Testing Compliance: Manufactured and certified in accordance with ASME B16.34, API 598, and EN 12266-1
