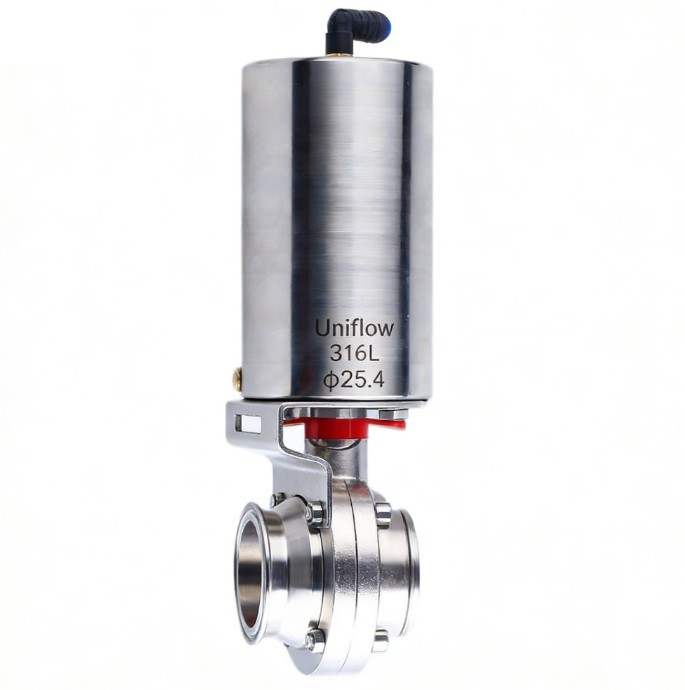

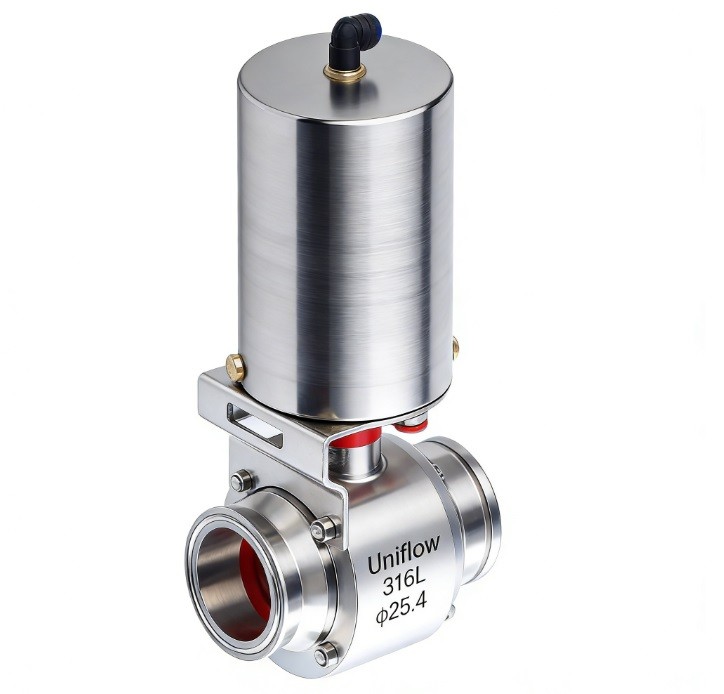

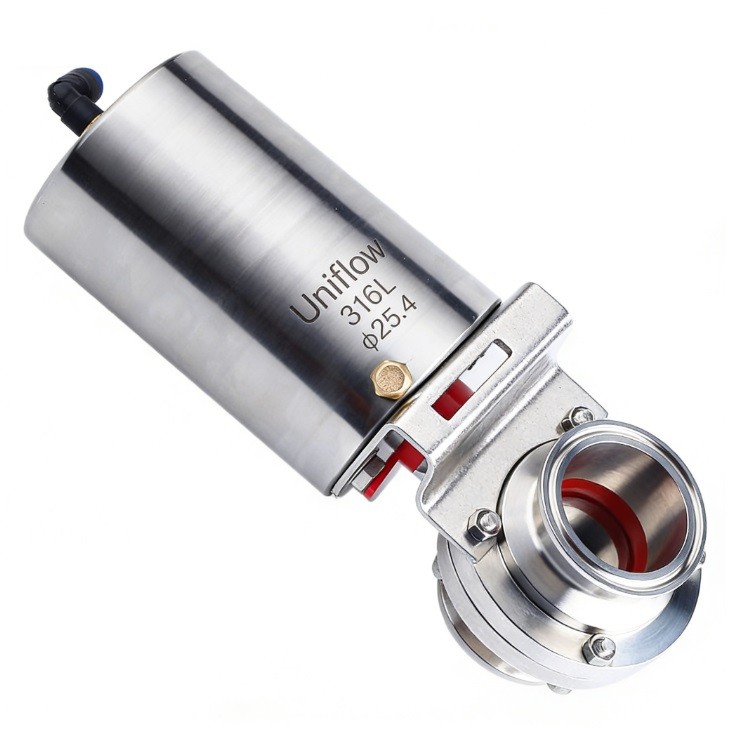

Pneumatic Tri-Clamp Butterfly Valves are automated sanitary valves used in high-purity sectors like food, beverage, and pharma. Combining a stainless steel (SS304/316L) body with a pneumatic actuator, they offer rapid, remote flow control. The Tri-Clamp ends ensure easy removal for cleaning, while the polished disk meets 3A/FDA standards ($Ra < 0.8\mu m$). They typically feature "Spring Return" or "Double Acting" modes and are compatible with CIP/SIP processes.
Pneumatic Tri-Clamp Butterfly Valve Technical Attributes
1,Size Range,1/2" to 10" (DN15 – DN250)
2,Body/Disk Material,Stainless Steel 304 or 316L (ASTM A270)
3,Internal Finish,Mirror Polished (Ra≤0.4μm or 0.8μm)
4,Connection,Sanitary Tri-Clamp (Quick-Release)
5,Actuator Type,Rack & Pinion or Stainless Steel Vertical Piston
6,Actuator Function,Spring Return (NC/NO) or Double Acting
7,Seat Material,"FDA-Grade EPDM (Standard), Silicone, or Viton"
8,Max Media Press.,10 bar (145 psi)
9,Air Supply Press.,4 bar to 8 bar (58 to 116 psi)
10,Control Options,Solenoid Valve (DC24V/AC220V)
11,Feedback Signal,Limit Switch Box or Inductive C-Top Sensor
12,Temperature Limit,-10°C to 120°C (150°C for short SIP sterilization)
13,Standard Compliance,3A, DIN 11850, SMS, ISO 2037
14,Design Feature,"Full-bore, low turbulence, zero-dead-leg design"
15,Optional Accessories,"Air filter-regulator, Positioner (for throttling)"
