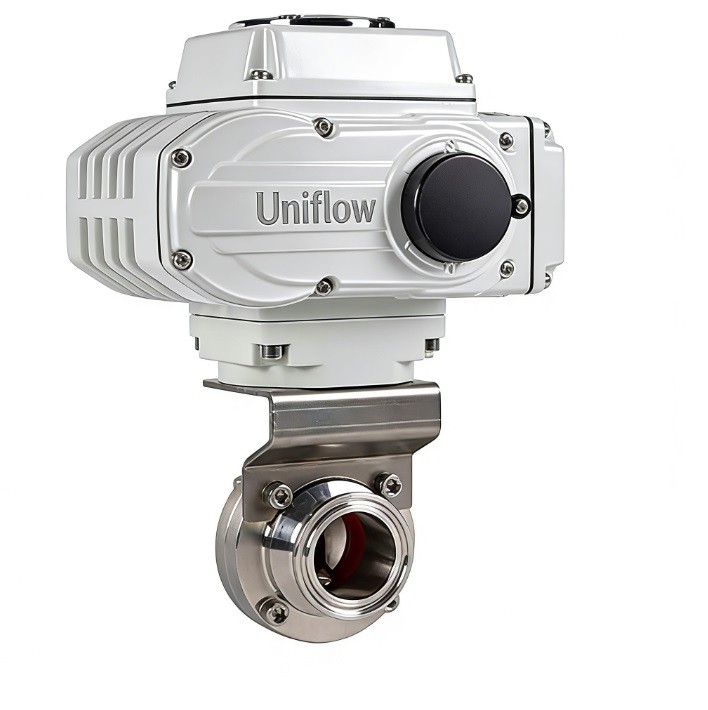

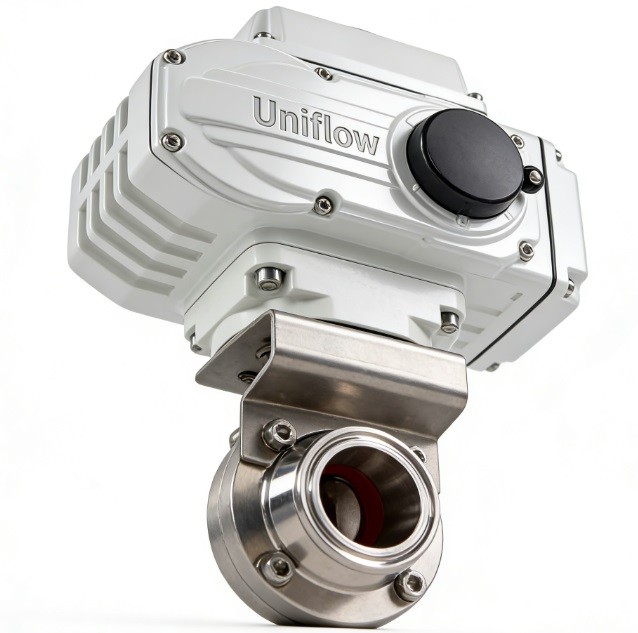

Electric Hygienic Tri-Clamp Butterfly Valves provide precise automated flow control for sanitary processes in the food, beverage, and pharma sectors. Combining a polished SS304/316L body with an electric actuator, they allow for remote operation without the need for compressed air. The Tri-Clamp ends ensure easy disassembly for cleaning, while FDA-approved seats and a Ra < 0.8um finish maintain high purity. They are ideal for systems requiring multi-positioning or smart integration.
Electric Hygienic Tri-Clamp Butterfly Valve Technical Attributes
1,Size Range,1/2" to 8" (DN15 – DN200)
2,Body Material,Stainless Steel 304 or 316L (Forged or Investment Cast)
3,Surface Finish,Polished Ra≤0.4μm (Internal) / 0.8μm (External)
4,Connection,Tri-Clamp (Sanitary Clamp) per ISO / DIN / SMS / 3A
5,Actuator Voltage,"24V DC, 110V AC, 220V AC, or 380V AC (3-Phase)"
6,Control Type,On/Off (Standard) or Modulating (4-20mA / 0-10V)
7,Seat Material,"FDA-Grade Silicone, EPDM, or FKM (Viton)"
8,Cycle Time,10 to 30 seconds (Size dependent)
9,Protection Class,IP67 (Standard) or IP68 (Waterproof/Submersible)
10,Manual Override,Manual handwheel or hex key for emergency use
11,Operating Temp.,-10°C to +120°C (Valve); -20°C to +60°C (Actuator)
12,Duty Cycle,30% to 75% (Standard) / 100% (Continuous)
13,Safety Feature,Built-in thermal protection and limit switches
14,Visual Indicator,Mechanical 3D pointer and LED status lights
15,Communication,"Optional Modbus RTU, Profibus, or HART protocols"
