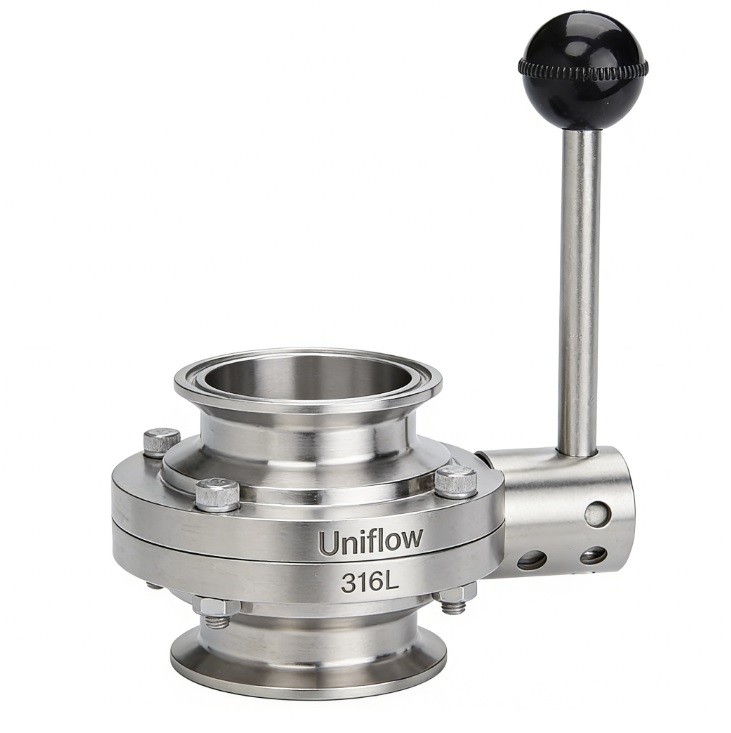

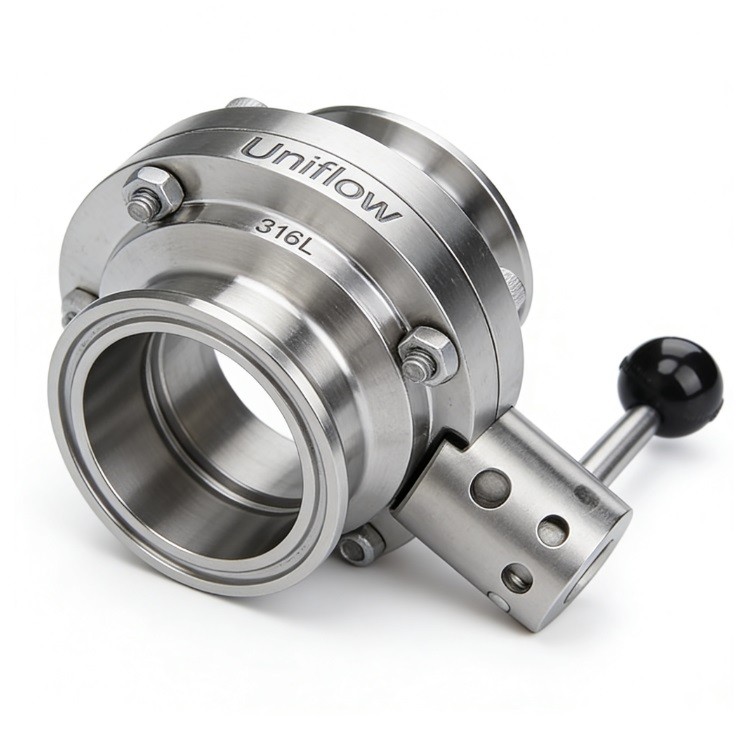

Hygienic Tri-Clamp Butterfly Valves are high-purity flow control devices essential for food, dairy, and pharma industries. Made from SS304/316L, they feature a polished internal surface (Ra < 0.8um) to prevent bacterial buildup. The Tri-Clamp ends allow for rapid tool-free disassembly for Cleaning-in-Place (CIP). They use FDA-grade seals (EPDM/Silicone) and are prized for their slim profile, easy operation, and strict compliance with 3A/DIN/SMS sanitary standards.
Technical Attributes
1,Size Range,1/2"" to 12" (NPS) / DN15 to DN300
2,Body Material,Forged or Investment Cast SS304 or SS316L
3,Internal Surface,Polished to Ra≤0.4μm or 0.8μm (Mirror)
4,Connection,Tri-Clamp (Quick-Release) per ISO 2852 / ASME BPE
5,Seat Material,"FDA-approved Silicone, EPDM, FKM (Viton), or HNBR"
6,Design Standard,"3-A Sanitary, SMS, DIN, or RJT"
7,Max Pressure,10 bar (145 psi) for standard sizes up to 4"
8,Max Temperature,120°C (248°F) with EPDM; higher with FKM/Steam
9,Operation,"Pull-handle (4-pos), Trigger-handle (13-pos), or Actuated"
10,Disk Type,Precision machined spherical disk for low friction
11,Compliance,FDA 21CFR177.2600 & USP Class VI (Medical Grade)
12,Cleaning Mode,CIP (Clean-in-Place) & SIP (Steam-in-Place) compatible
13,Actuation Pad,ISO 5211 (Universal mounting for actuators)
14,Visual Indication,Clear position indicator on handle or control top
15,Sealing Style,Full-encapsulation (seat wraps around the disk)
