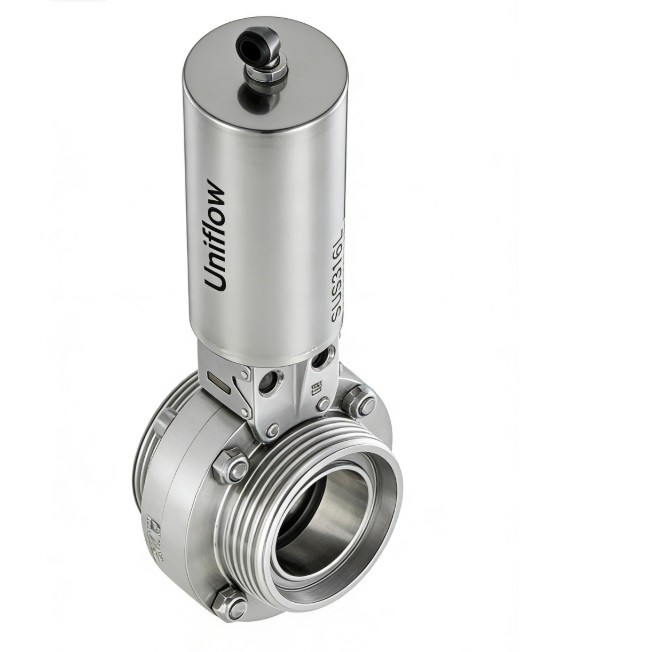

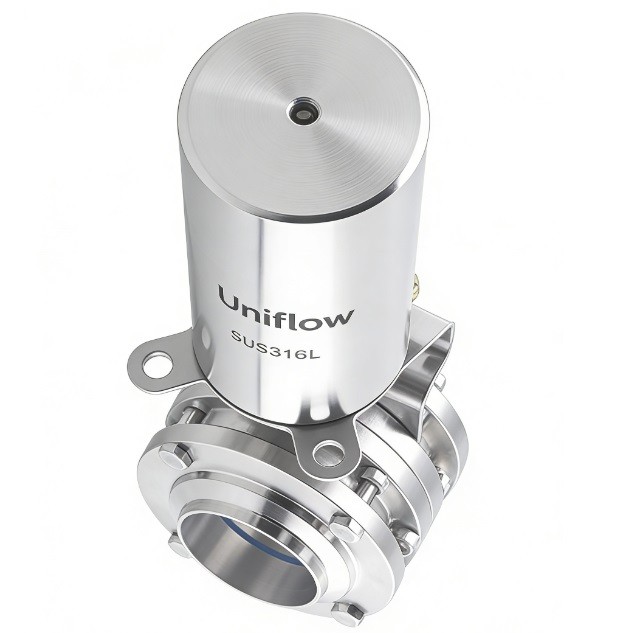

The Pneumatic SS Sanitary 3-Piece Butterfly Valve is an automated, high-serviceability solution for permanent pipelines. The 3-piece design allows the central body to be removed from its welded end-flanges for maintenance without cutting the pipe. Controlled by a stainless pneumatic actuator, it supports remote automation in CIP systems. Made from SS316L, it is 3A/FDA compliant, offering a crevice-free, mirror-polished bore for critical food and pharma processes.
Technical Attributes: Pneumatic 3-Piece Welded Butterfly Valve
1,Size Range,1/2" to 6" (DN15 – DN150)
2,Body Material,Forged or Investment Cast Stainless Steel 316L
3,Actuator Material,Polished Stainless Steel (standard) or Anodized Aluminum
4,End Connection,Plain Butt-Weld ends (Matches ASME BPE / DIN 11850)
5,Design Structure,"3-Piece ""Sandwich"" with intermediate flanges"
6,Operation Mode,Spring Return (NC/NO) or Double Acting
7,Internal Finish,Mirror Polish Ra≤0.4μm
8,External Finish,Satin or Bright Polish Ra≤0.8μm
9,Seal Material,"FDA EPDM (Standard), Silicone, or FKM (Viton)"
10,Air Supply,"5.0 to 7.0 bar (Dry, filtered air)"
11,Max Pressure,10 bar (145 psi) line pressure
12,Temp. Range,−10∘C to +135∘C (Subject to seal material)
13,Feedback/Control,Optional C-Top (Solenoid + Limit Switches)
14,Compliance,"3-A Sanitary, FDA 21CFR177.2600, CE/PED"
15,Cleaning,Fully CIP (Clean-in-Place) and SIP (Steam-in-Place)
