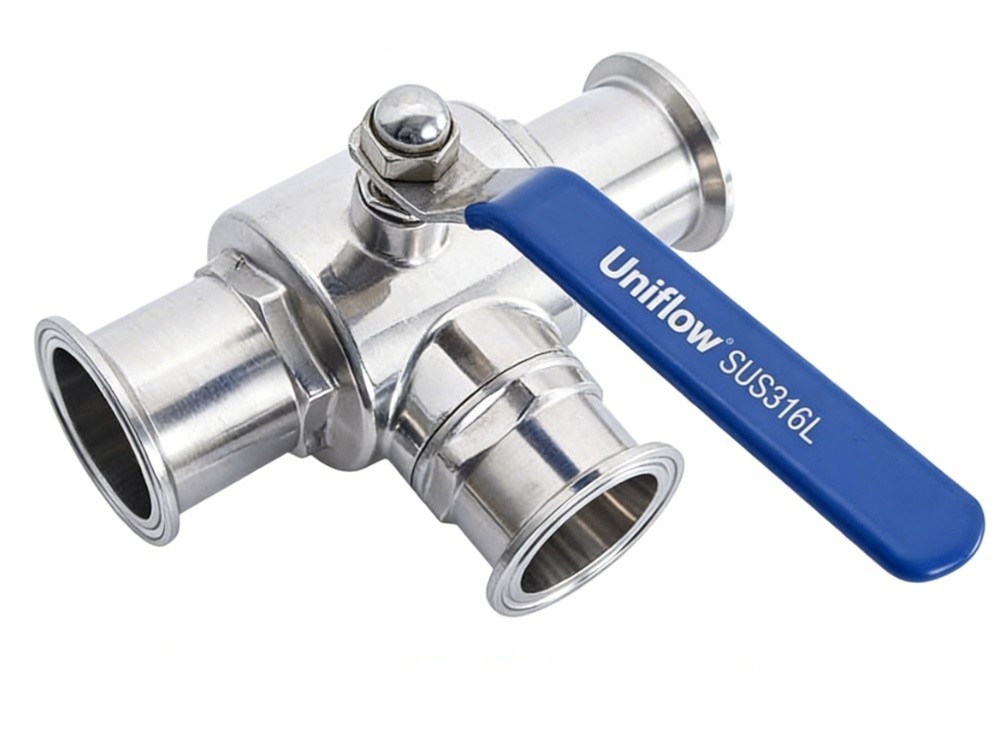

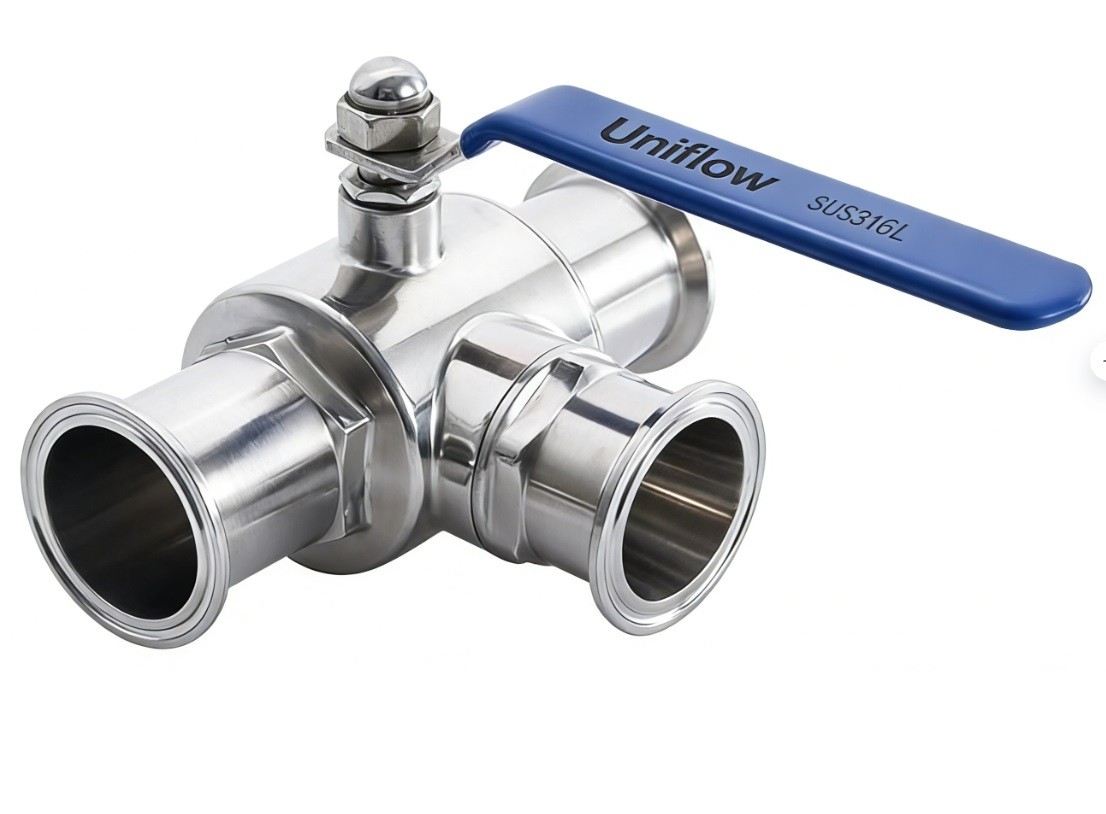

The Hygienic 3-Way T-Bore Ball Valve is a versatile flow-diversion component used in sanitary piping. The "T-bore" configuration allows for fluid to flow through all three ports simultaneously or divert between them, depending on the handle position. Featuring Tri-Clamp ends for rapid assembly, it is made from SS316L with an encapsulated seat to minimize "dead legs." It is FDA/3A compliant, making it ideal for mixing or bypass loops in food, dairy, and beverage production.
Technical Attributes: Hygienic 3-Way T-Bore Tri-Clamp Valve
1,Size Range,1/2" to 4" (DN15 – DN100)
2,Flow Pattern,T-Bore (Allows 3-way flow or 90° diversion)
3,Connection Type,Tri-Clamp (ASME BPE / ISO 2852)
4,Body Material,SS316L (1.4404) Forged or CF8M
5,Ball Seat,Fully Encapsulated PTFE (Cavity Filler)
6,Internal Finish,Mirror Polish Ra≤0.4μm
7,External Finish,Satin or Bright Polish Ra≤0.8μm
8,Sealing Material,FDA-grade EPDM or FKM Stem Seals
9,Working Pressure,10 bar (145 psi) for standard sizes
10,Temp. Range,−20∘C to +150∘C (Based on PTFE/Seat)
11,Compliance,"3-A Sanitary, FDA 21CFR177.1550, USP Class VI"
12,Operation,Manual Lever (304SS) or ISO 5211 Actuator Pad
13,Cleaning,CIP/SIP compatible (with cavity filler seats)
14,Design Standard,Full Bore (No flow restriction)
15,Handle Rotation,"90°, 180°, or 360° limiting options"
