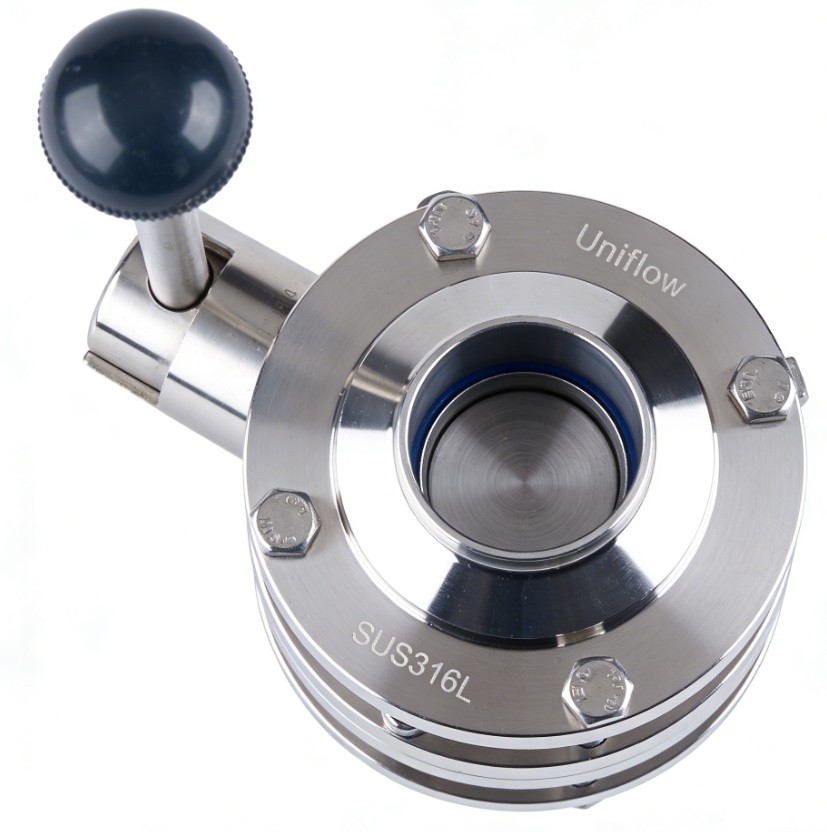

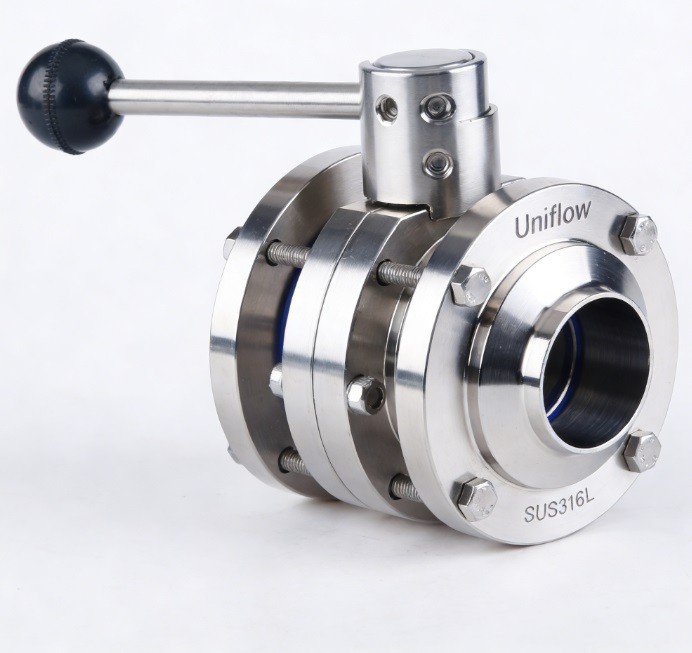

The Hygienic 3-Piece Butterfly Valve features an intermediate flange design that offers maximum serviceability. The central valve body is sandwiched between two end flanges (welded or clamped) and secured by bolts. This "drop-out" configuration allows you to remove the entire center section for seal replacement without cutting the pipeline or disturbing the pipe alignment. Made of SS316L, it is 3A/FDA compliant, providing a robust, leak-proof solution for critical sanitary headers.
Technical Attributes: 3-Piece Intermediate Flange Butterfly Valve
1,Size Range,1" to 6" (DN25 – DN150)
2,Design Structure,"3-Piece ""Drop-out"" design with intermediate flanges"
3,Body Material,Forged Stainless Steel 316L (1.4404)
4,End Connections,"Butt-Weld, Tri-Clamp, or Threaded (Interchangeable)"
5,Internal Finish,Mirror Polish Ra≤0.4μm
6,External Finish,Satin or Bright Polish Ra≤0.8μm
7,Seat Material,"FDA EPDM (Standard), Silicone, FKM, or PTFE-encapsulated"
8,Seal Performance,Multi-point compression (flange-to-body + body-to-disk)
9,Max Pressure,10 bar (145 PSI)
10,Temp. Range,−10∘C to +135∘C (Sterilization to +150∘C)
11,Compliance,"3-A Sanitary, FDA 21CFR177.2600, USP Class VI"
12,Operation,12-position manual handle or ISO 5211 Pneumatic Actuator
13,Alignment,"Integrated ""step"" on flanges for self-centering body"
14,Maintenance,No tools required for seal access once bolts are removed
15,Versatility,Body can be upgraded to actuation without removing end-flanges
