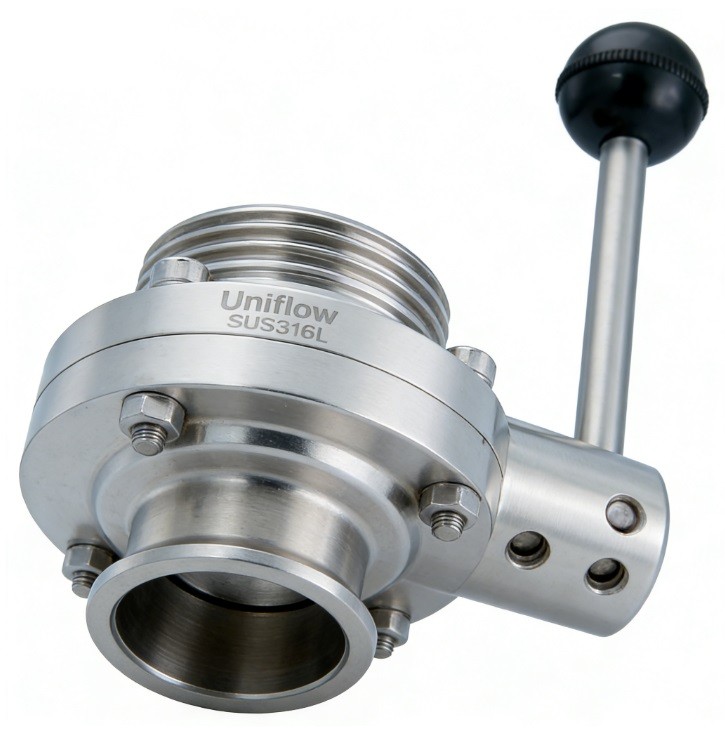

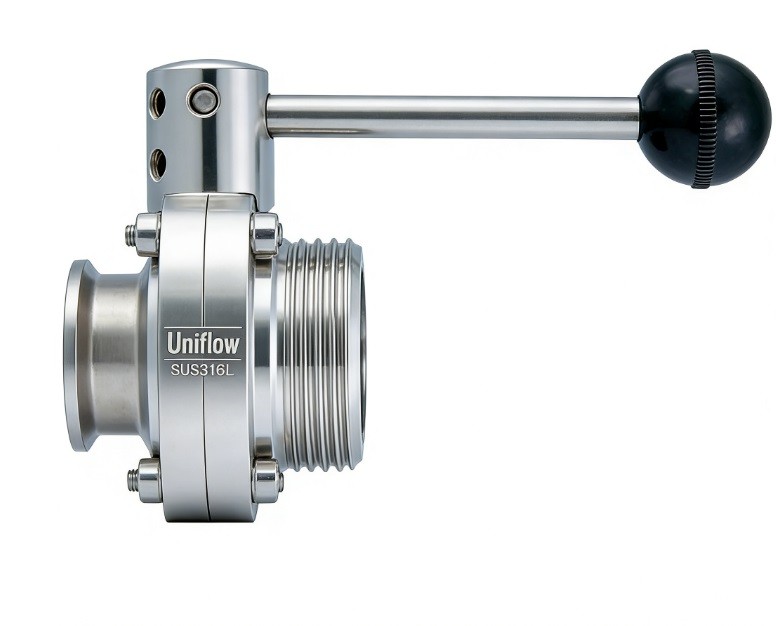

The Tri-Clamp to SMS Threaded Butterfly Valve is a hybrid sanitary component designed to bridge two different piping standards. One side features a standard Tri-Clamp for quick disassembly, while the other has an SMS (Swedish Milk Standard) male thread. Made from SS316L, it is common in European dairy and food plants where SMS fittings are the norm. It provides a leak-proof, hygienic transition, allowing easy integration of SMS-based equipment into Tri-Clamp systems.
Technical Attributes: Tri-Clamp to SMS Threaded Butterfly Valve
1,Size Range,1" to 4" (DN25 – DN100)
2,Inlet Connection,Tri-Clamp (Sanitary Clamp) per ISO 2852 / ASME BPE
3,Outlet Connection,SMS 1145 Male Thread (Round hygienic thread)
4,Material,Stainless Steel 316L (Contact) / 304 (Handle/Actuator)
5,Internal Polish,Ra≤0.4μm (Mirror) or 0.8μm (Satin)
6,Seat / Gasket,"FDA-grade EPDM (Standard), Silicone, or FKM (Viton)"
7,SMS Thread Type,Rd (Round) Thread according to DIN 405 / SMS 1145
8,Max Pressure,10 bar (145 psi)
9,Max Temperature,130°C (266°F) for EPDM; 180°C (356°F) for Viton
10,Operation,Manual (12-position Trigger) or Pneumatic Actuator
11,Compliance,"FDA 21CFR177.2600, 3-A Sanitary, SMS 1145"
12,Cleaning Protocol,Fully CIP (Clean-in-Place) and SIP (Steam-in-Place)
13,Body Design,Two-piece split body for fast seal replacement
14,Flow Type,"Straight-through, full-bore (low pressure drop)"
15,Sealing Style,Bubble-tight shut-off with low-friction disc
