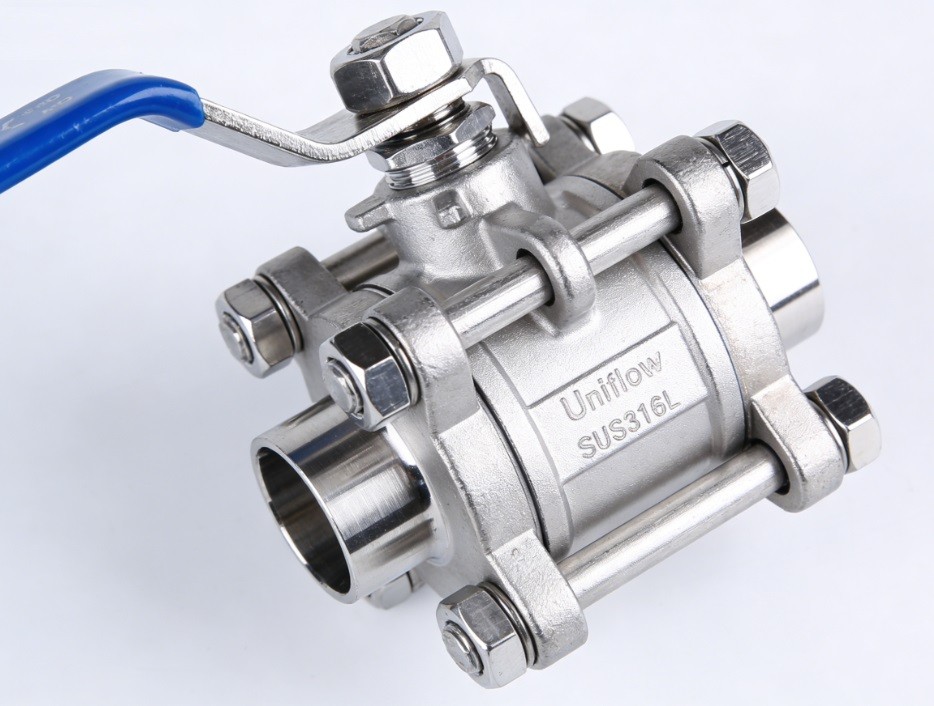

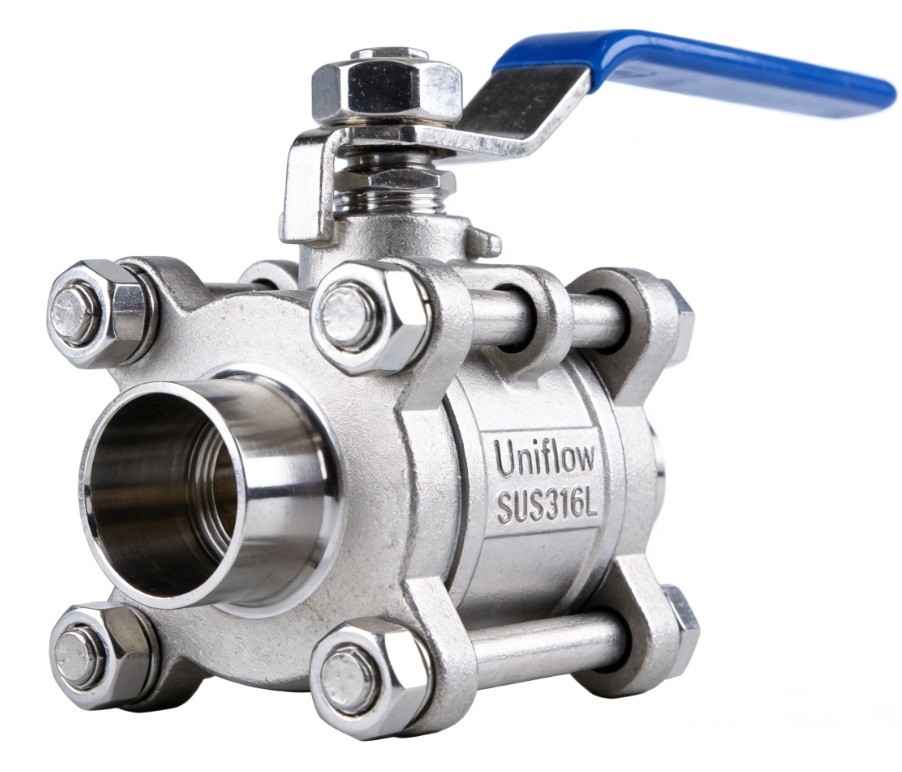

The Hygienic 316L Welded Ball Valve is a permanent, high-integrity flow control solution for sanitary pipelines. By using Butt-Weld ends, it eliminates the leak paths and crevices associated with mechanical joints, ensuring maximum hygiene. Made from low-carbon 316L stainless steel, it features encapsulated PTFE seats to prevent product entrapment. It is 3A/FDA compliant, 100% CIP/SIP compatible, and ideal for high-purity steam or sterile fluid applications.
Technical Attributes: Hygienic 316L Welded Ball Valve
1,Size Range,1/2" to 4" (Standard Sanitary OD Tube)
2,Body Material,ASTM A351 CF3M / Stainless Steel 316L
3,Connection Type,Butt-Weld (Extended ends for Orbital Welding)
4,Structure,3-Piece Bolted (Center section is removable)
5,Bore Type,Full Bore (Internal ID matches Tube ID)
6,Seat Design,Fully Encapsulated PTFE (Cavity Filler)
7,Internal Finish,Mirror Polish Ra≤0.4μm
8,External Finish,Satin or Machine Polish Ra≤0.8μm
9,Working Pressure,Up to 1000 psi (64 bar) depending on size
10,Temp. Range,−20∘C to +150∘C (Short-term +180∘C for SIP)
11,Sulfur Content,Controlled (0.005%−0.017%) for weld repeatability
12,Wall Thickness,Matches ASME BPE Table DT-4.1 or ISO 1127
13,Operation,Manual Lever with Locking Device or ISO 5211 Pad
14,Compliance,"3-A Sanitary, FDA 21CFR177.1550, USP Class VI"
15,Sealing,Multi-layer PTFE Stem Packing (Live-loaded)
