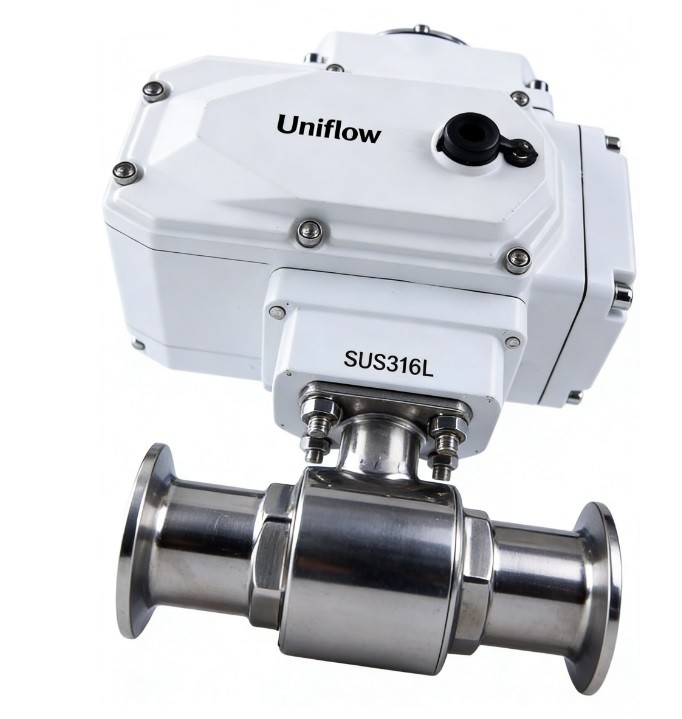

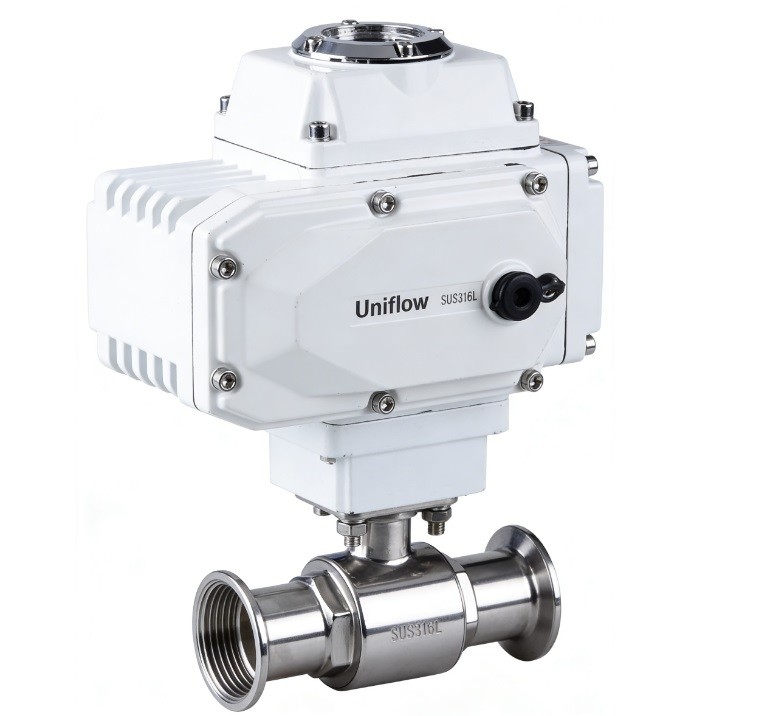

The Electrically Actuated Hygienic Clamp Ball Valve provides precise, automated flow control where compressed air is unavailable. It combines an SS316L 3-piece ball valve with an electric motor actuator, featuring a full-bore design and encapsulated PTFE seats to eliminate bacterial growth. With Tri-Clamp ends for rapid maintenance, it is 3A/FDA compliant. It is ideal for "smart" factories requiring high torque and digital position feedback in food or pharma lines.
Technical Attributes: Electrically Actuated Hygienic Ball Valve
1,Size Range,1/2" to 4" (DN15 – DN100)
2,Body Material,Forged or Investment Cast Stainless Steel 316L
3,Actuator Type,Reversible Motor (90° Rotation) with Manual Override
4,Connection,Tri-Clamp (ASME BPE / ISO 2852)
5,Voltage Options,"24V DC, 110V AC, or 220V AC (50/60Hz)"
6,Bore Design,Full Bore (Internal diameter matches pipe ID)
7,Seat Design,Fully Encapsulated PTFE (Cavity Filler)
8,Internal Finish,Mirror Polish Ra≤0.4μm
9,External Finish,Satin or Bright Polish Ra≤0.8μm
10,Protection Class,IP67 (NEMA 4/4X) - Washdown Resistant
11,Duty Cycle,25% to 75% (Depending on motor type)
12,Temp. Range,−20∘C to +150∘C (Media temp)
13,Control Type,On/Off or Modulating (4-20mA / 0-10V Input)
14,Compliance,"3-A Sanitary, FDA 21CFR177.1550, CE/UL"
15,Feedback,Internal Limit Switches (Dry contacts for Open/Close)
