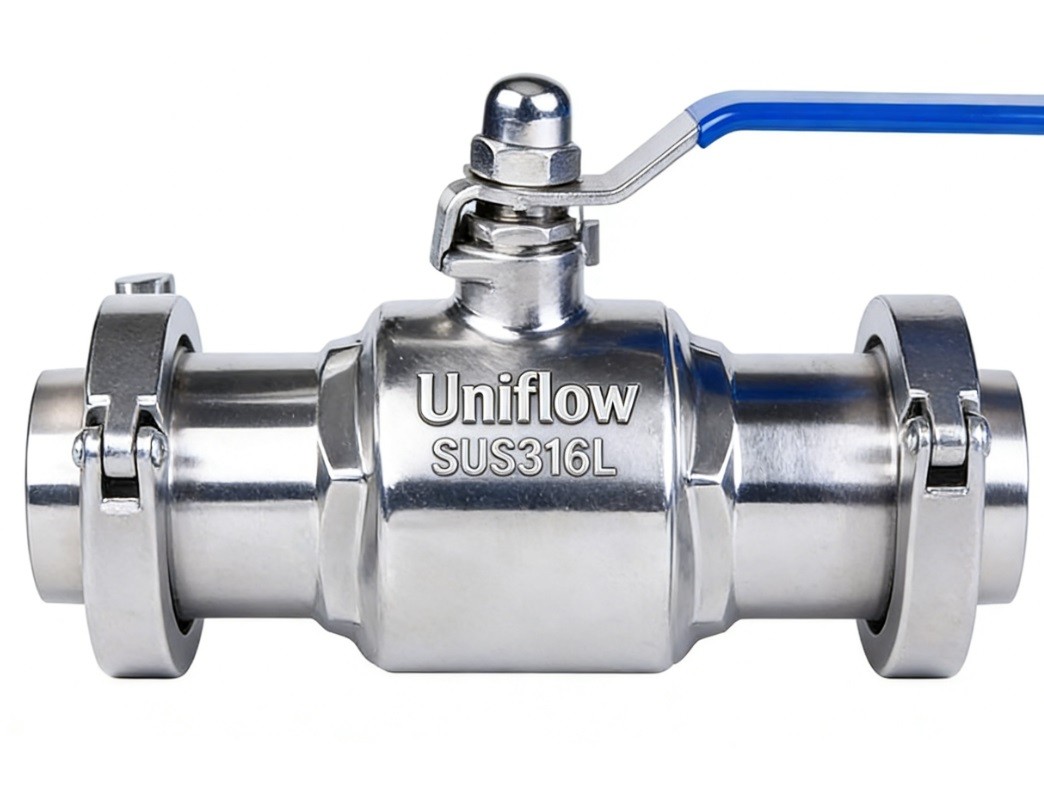

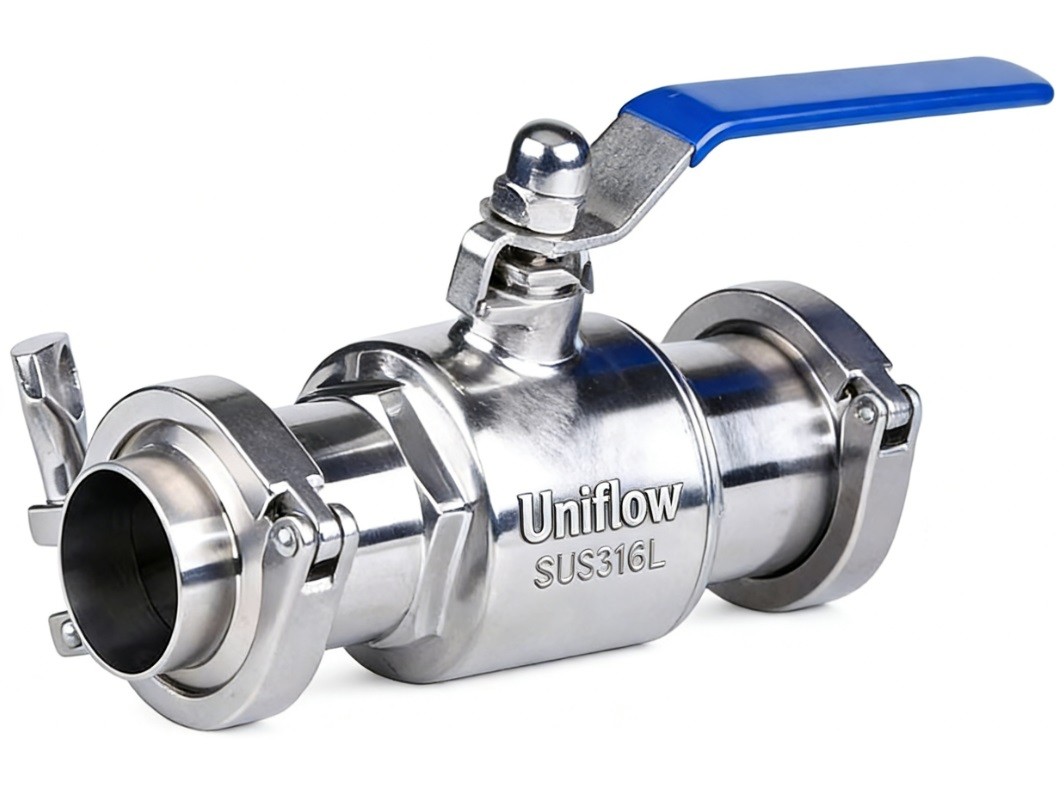

A Complete Set Sanitary Clamp Ball Valve is an all-in-one solution for rapid system integration. It includes a 316L stainless steel ball valve with encapsulated PTFE seats, paired with matching ferrules, high-pressure clamps, and gaskets. The inclusion of a union nut or adapter allows for transition between different piping standards. 3A/FDA compliant, this kit ensures a 100% leak-proof, "dead-leg" free connection right out of the box for food or pharma lines.
Technical Attributes: Complete Set Sanitary Ball Valve Assembly
1,Size Range,1/2"" to 4" (Full set components sized to match)
2,Valve Body,3-Piece 316L Stainless Steel (1.4404)
3,Included Ferrules,2x Matching Weld-on or Hose-shank Ferrules
4,Included Clamps,2x Heavy-Duty Double-Bolt or Single-Pin Clamps
5,Union Nut/Adapter,"SMS, DIN, or RJT Threaded Union Nut included"
6,Seat Design,Fully Encapsulated PTFE (Cavity Filler)
7,Gasket Material,"FDA-Grade EPDM, PTFE, or FKM (Viton)"
8,Bore Type,Full Bore (ID matches ferrule and tube ID)
9,Internal Finish,Mirror Polish Ra≤0.4μm
10,External Finish,Bright/Satin Polish Ra≤0.8μm
11,Max Pressure,10 Bar (145 psi) for the entire assembly
12,Temp. Range,−20∘C to +150∘C (Based on gasket/seat)
13,Operation,304SS Manual Handle with Locking Device
14,Mounting,ISO 5211 Pad for future automation
15,Compliance,"3-A Sanitary, FDA 21CFR, USP Class VI"
