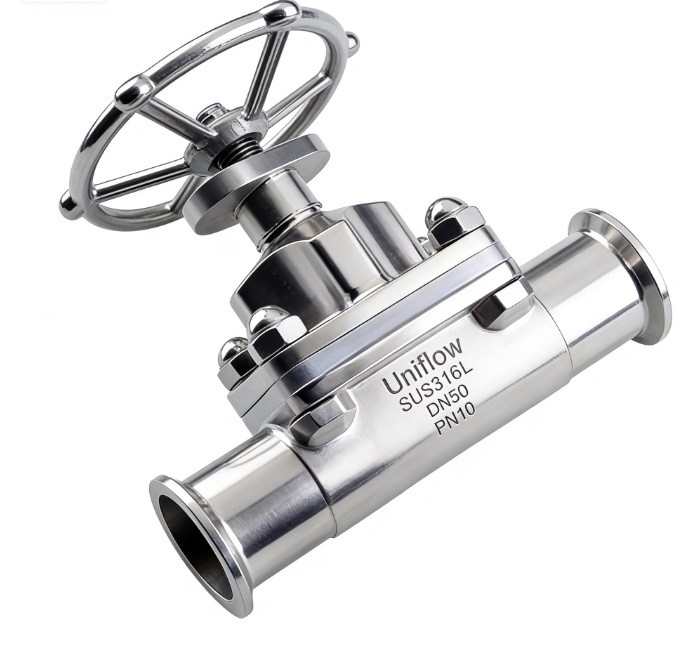

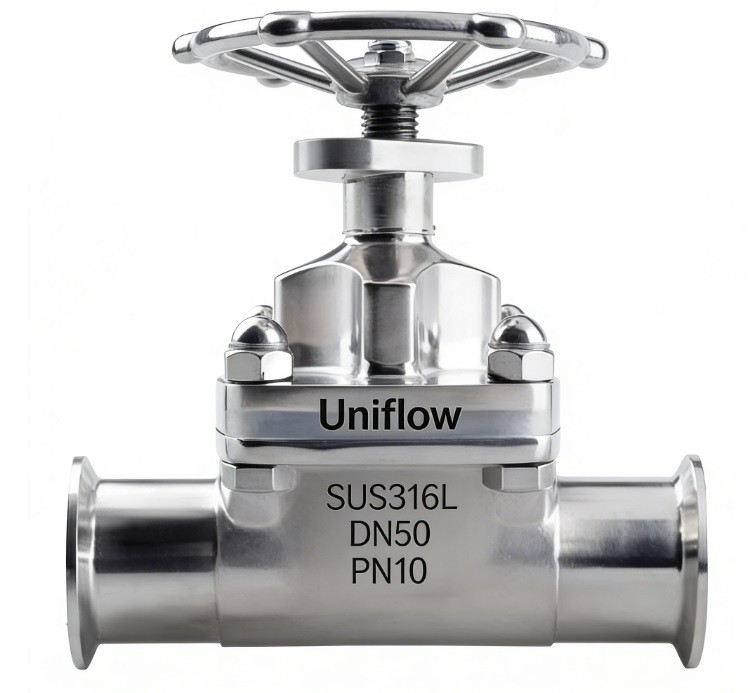

Hygienic Tri-Clamp Flow Control Diaphragm Valve (Lockable)
This valve combines precision flow regulation with enhanced security. The Tri-Clamp ends ensure a sterile connection, while the lockable device on the handle prevents unauthorized adjustments or accidental operation in critical lines. Its weir-style diaphragm design keeps the product isolated from the environment, making it perfect for hazardous or high-value pharmaceutical batches.
Security: Padlock-ready handle for LOTO (Lock-Out/Tag-Out).
Precision: Fine-thread adjustment for accurate flow control.
Hygiene: Hermetically sealed and CIP/SIP capable.
Technical Attributes: Hygienic Tri-Clamp Flow Control Valve (Lockable)
1,Locking Device,Built-in locking tab or hole for padlocks; prevents handle rotation.
2,Connection Standard,Tri-Clamp (TC) ferrules (conforms to ASME BPE / DIN 32676).
3,Body Material,ASTM 316L (1.4435); Low sulfur content for orbital welding compatibility.
4,Diaphragm Material,PTFE/EPDM dual-layer or high-purity EPDM (USP Class VI).
5,Flow Design,Weir-style (high-bridge) body for linear flow and high Cv.
6,Security Level,Mechanical stop ensures the valve remains in Fixed Position (Open/Closed).
7,Surface Finish,Internal Ra < 0.4 μm; External satin or high-mirror polish.
8,Position Monitoring,Integrated visual indicator to confirm valve status at a distance.
9,Temperature Range,−10°C to +150°C; designed for repeated SIP cycles.
10,Operating Pressure,Full vacuum up to 10 bar (145 psi) at ambient temperature.
11,Hermetic Isolation,Completely separates fluid from the bonnet and atmospheric exposure.
12,Drainability,Self-draining when mounted at the optimal weir angle (15∘–35∘).
13,Actuation,Manual handwheel with reinforced ergonomic grip.
14,Certifications,"FDA 21 CFR 177, 3-A Sanitary, and ASME BPE compliant."
15,Maintenance,Four-bolt bonnet design allows for quick internal cleaning/diaphragm replacement.
