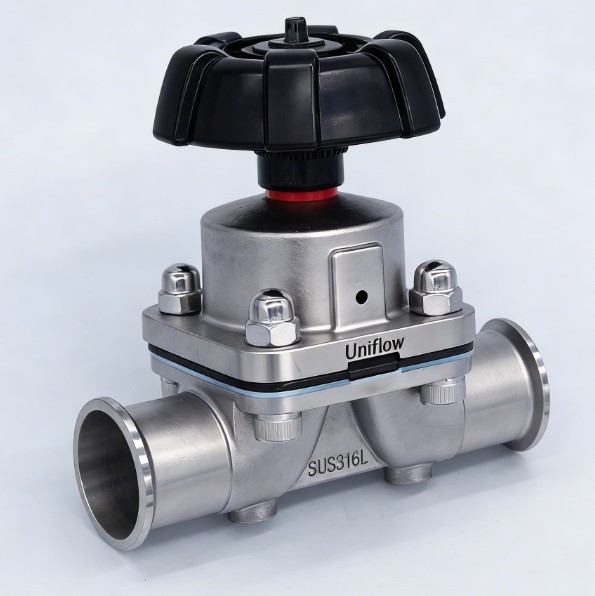

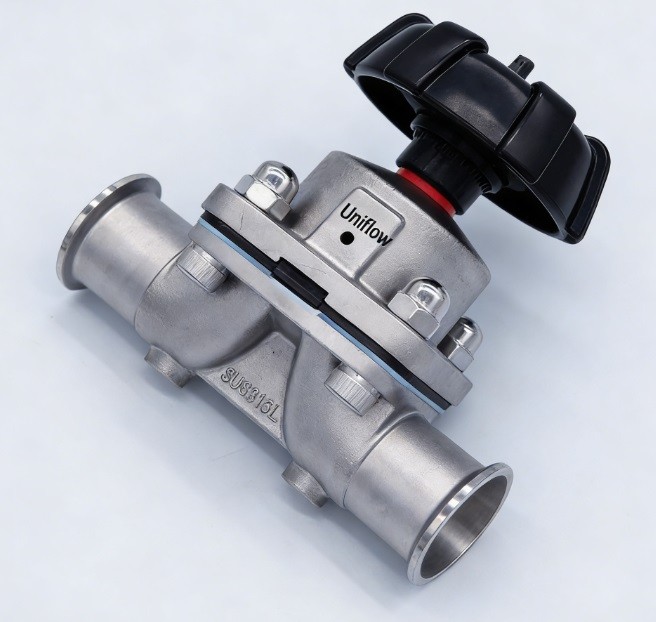

Hygienic Tri-Clamp Diaphragm Valve
The Tri-Clamp Diaphragm Valve is the industry standard for high-purity fluid control. It uses a flexible diaphragm to provide a hermetic seal, completely isolating the valve’s moving parts from the process media. The Tri-Clamp connections allow for rapid, tool-free removal for cleaning or inspection.
Design: Weir-style body ensures high flow and minimal turbulence.
Sterility: No pockets or crevices, preventing bacterial growth.
Maintenance: Easy diaphragm replacement without specialty tools.
Technical Attributes: Hygienic Tri-Clamp Diaphragm Valve
1,Body Material,ASTM 316L (1.4435) stainless steel; forged or high-quality cast.
2,Connection,"Tri-Clamp (TC) ferrules (BS 4825, ISO 2852, or DIN 32676)."
3,Sealing Principle,Weir-style design for precise flow control and bubble-tight shutoff.
4,Surface Finish,Internals polished to Ra ≤ 0.5 μm; Electropolishing available.
5,Diaphragm Material,PTFE/EPDM bonded or medical-grade EPDM (USP Class VI).
6,Dead Leg Design,Low-internal volume to minimize product holdup.
7,Operating Pressure,Typically rated up to 10 bar (145 psi).
8,Temperature Range,Operates between −10°C and +150°C (steam-proof).
9,Actuation,Manual (Handwheel) with travel stop or Pneumatic.
10,Sterilization,Fully compatible with CIP (Chemical) and SIP (Steam) processes.
11,Drainability,Achieves 100% self-drainage when tilted at the correct angle.
12,Compliance,"Meets FDA 21 CFR 177, 3-A Sanitary, and BPE standards."
13,Bonnet Design,Sealed or vented bonnets available to prevent corrosion of internals.
14,Visual Indicator,Often includes a position indicator to show open/closed status.
15,Maintenance,Top-entry design allows diaphragm changes without pipe removal.
