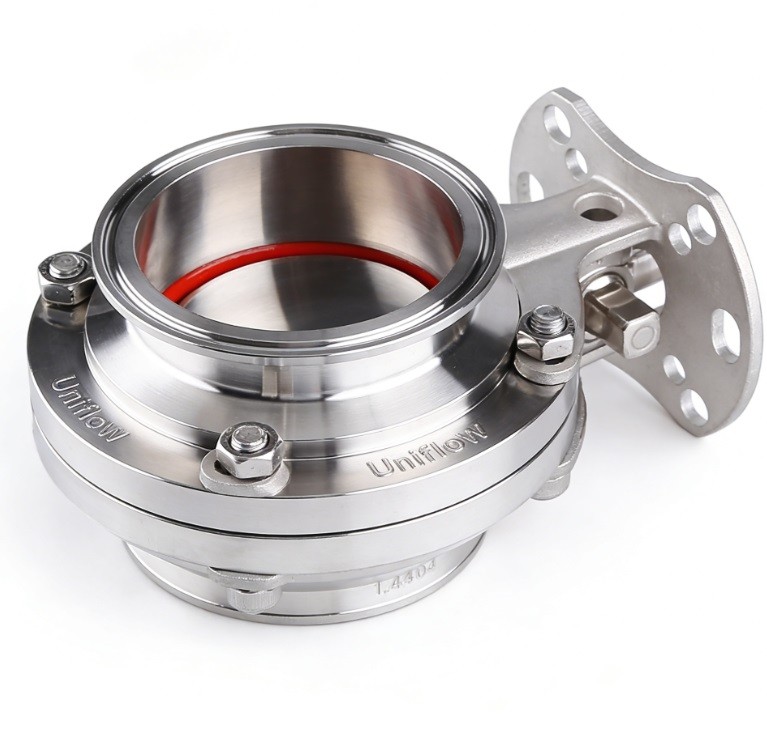

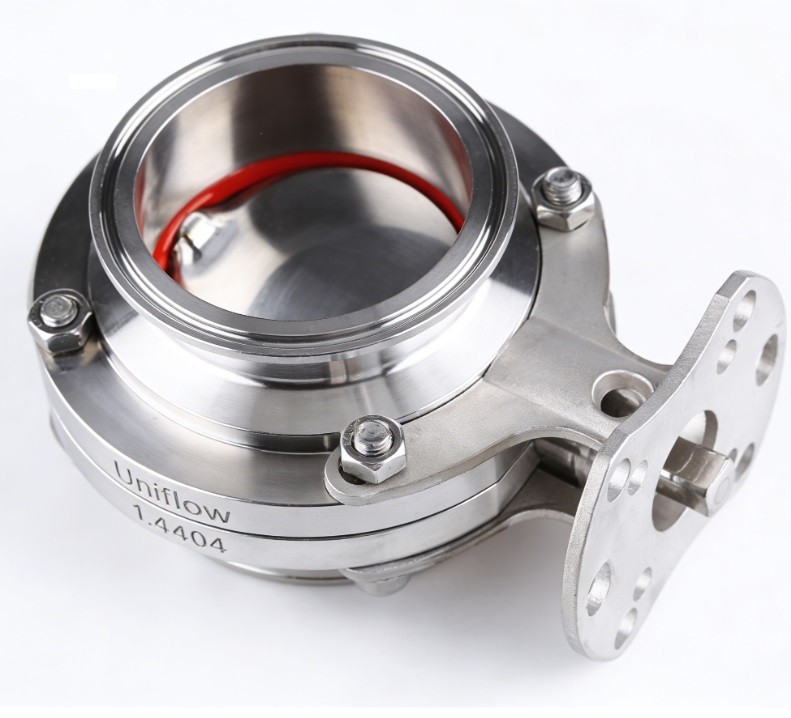

Hygienic Tri-Clamp butterfly valve with mount pad

Technical Attributes: Mount Pad Butterfly Valve

1,Size Range,1/2" to 10" (NPS 0.5 – 10.0)

2,Mounting Interface,"ISO 5211 Direct Mount Pad (F03, F04, F05, F07, etc.)"

3,Stem Shape,Square Stem (Double-D) or Splined for direct drive

4,Body Material,Forged or Investment Cast Stainless Steel 316L / 304

5,Internal Surface,Polished Ra≤0.4μm to 0.8μm (Grit 240-400)

6,End Connection,Quick-Release Tri-Clamp (ASME BPE / DIN 32676)

7,Seat Material,"FDA-Grade EPDM, Silicone, FKM (Viton), or HNBR"

8,Design Standard,"3-A Sanitary, SMS 1145, DIN 11850"

9,Max Pressure,10 bar (145 psi) for DN25–DN100

10,Max Temperature,130°C (266°F) for EPDM; 180°C (356°F) for Viton

11,Port Design,Full Bore / Full Port for unrestricted flow

12,Cleaning Protocol,Fully compatible with CIP (Clean) and SIP (Steam)

13,Sealing Design,Full-encapsulation (isolates stem/body from media)

14,Actuation Options,Easily fits Pneumatic (DA/SR) or Electric Actuators

15,Safety Certs,"FDA 21CFR177.2600, USP Class VI, CE/PED"
