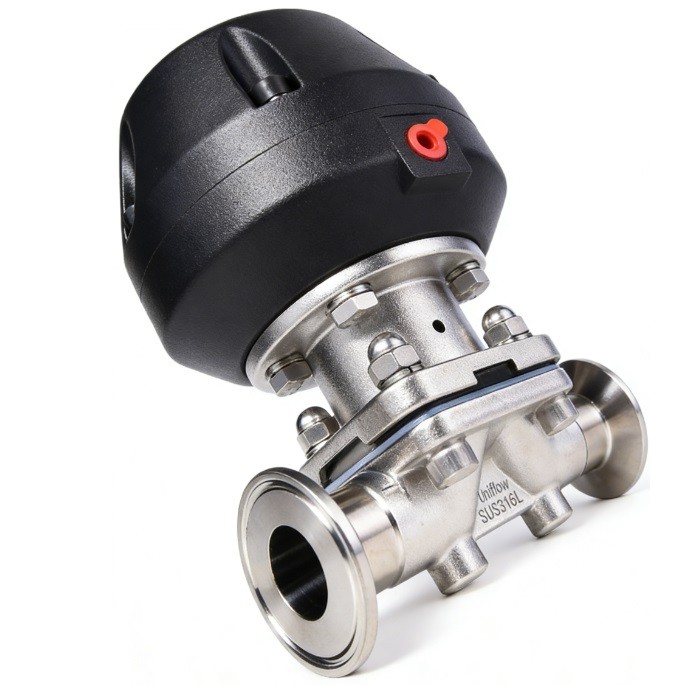

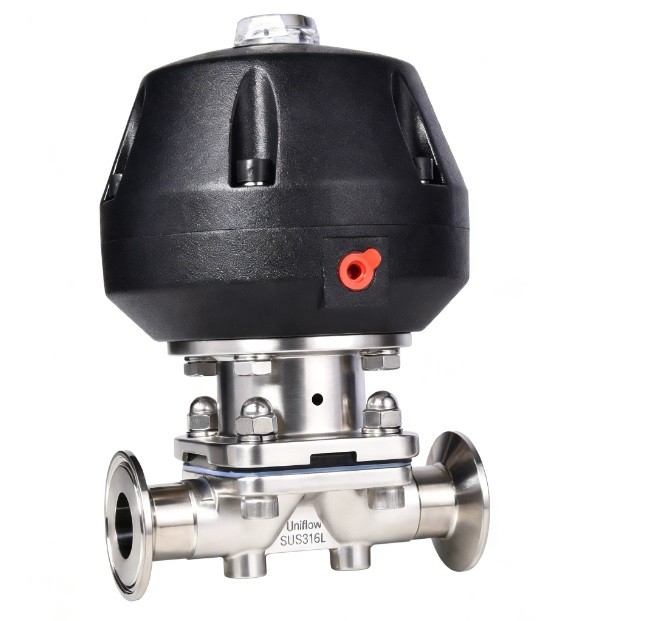

Hygienic Tri-Clamp Pneumatic Diaphragm Valve
This valve automates flow control in sterile environments using compressed air. The Tri-Clamp ends allow for rapid setup and teardown, while the pneumatic actuator enables remote operation and integration into PLC systems. Its diaphragm design ensures the process media is hermetically isolated from mechanical parts, making it a standard for biotech and food automation.
Automation: Precision control via air-to-open or air-to-close logic.
Hygiene: No stem seals or packing, eliminating leak paths.
Speed: Fast response times for frequent cycling.
Technical Attributes: Hygienic Tri-Clamp Pneumatic Diaphragm Valve
1,Actuation Type,"Pneumatic (Normally Closed, Normally Open, or Double Acting)."
2,Connection Type,"Tri-Clamp (TC) ferrules for rapid, tool-free installation."
3,Body Material,ASTM 316L Stainless Steel (Forged or Investment Cast).
4,Diaphragm Seal,Multi-layer PTFE/EPDM or reinforced medical-grade EPDM.
5,Isolation,Hermetic seal prevents contact between the actuator and media.
6,Surface Finish,Internals polished to Ra ≤ 0.5 μm (standard) or Electropolished.
7,Control Signal,Typically 3–6 bar (45–90 psi) compressed air supply.
8,Position Feedback,Compatible with limit switches or control tops (InduTop/ThinkTop).
9,Operating Pressure,Product line pressure up to 10 bar (145 psi).
10,Temperature,Suitable for fluids from −10°C to +140°C (SIP capable).
11,Drainability,Weir-style design ensures self-draining at 15°–35° installation angles.
12,Standards,"Compliant with FDA, USP Class VI, 3-A, and ASME BPE."
13,Flow Control,Capable of basic on/off or throttling with a positioner.
14,Actuator Housing,Stainless steel or high-strength acid-resistant plastic.
15,Safety,Fail-safe design (spring-return) ensures closure during power/air loss.
