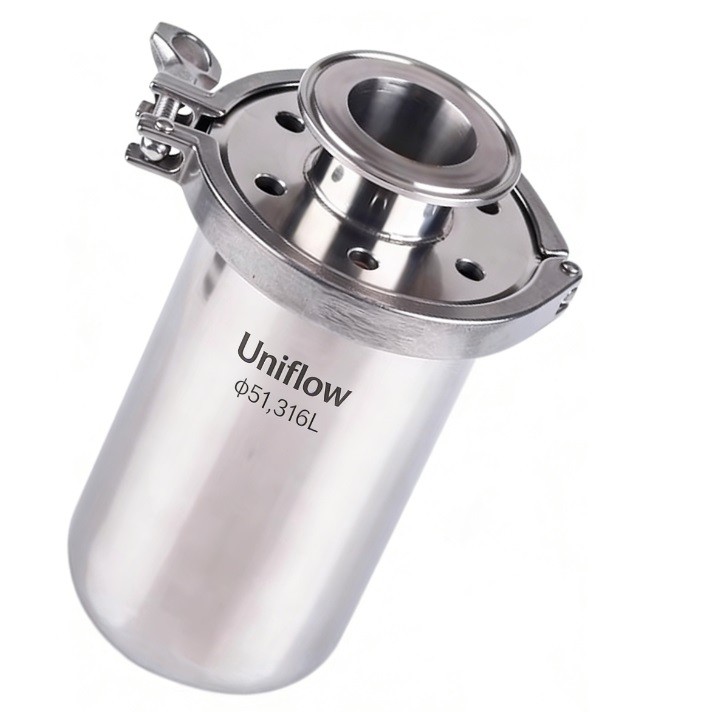

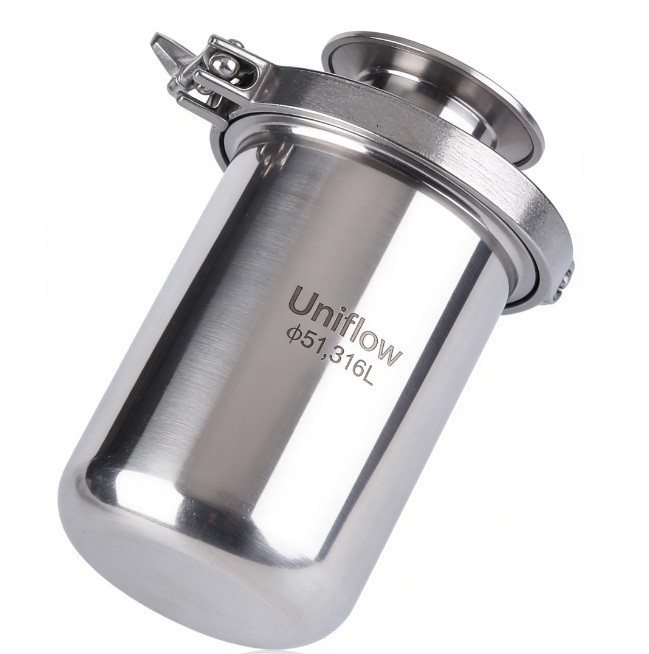

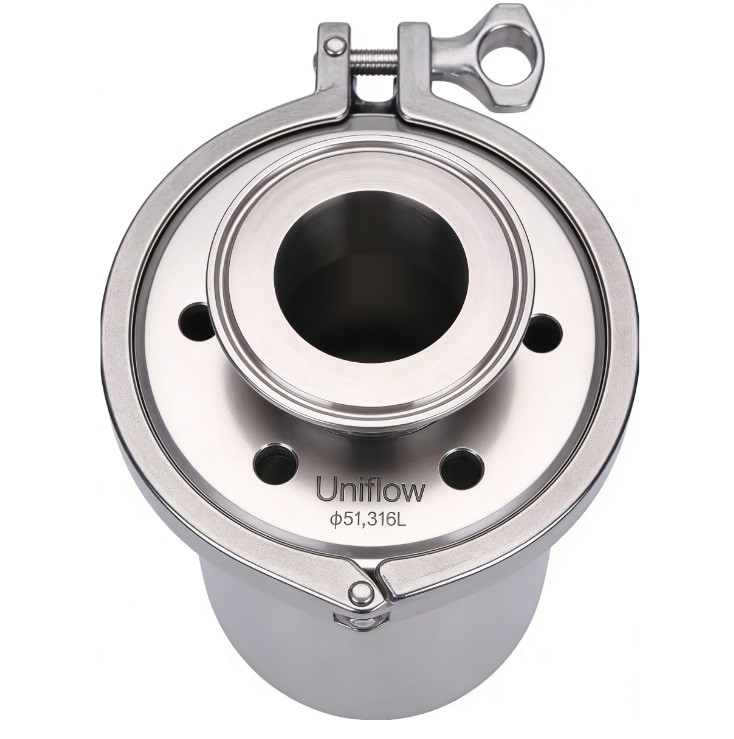

Hygienic Tri-Clamp Air Vent (AISI 316L)
The Hygienic Air Vent is an automatic valve used to exhaust air from pipelines or tanks during filling and prevent air pockets during operation. Crafted from AISI 316L stainless steel, it ensures maximum corrosion resistance. The Tri-Clamp connection allows for easy integration into sterile systems.
Function: Automatically releases trapped air to maintain flow efficiency.
Hygiene: Features a smooth, polished interior to prevent media buildup.
Safety: Protects pumps from cavitation and pipes from water hammer.
Technical Attributes: Hygienic Tri-Clamp Air Vent / Breather (AISI 316L)
1,Primary Function,Automatic air release during filling and system operation.
2,Body Material,AISI 316L (1.4404) Stainless Steel for superior purity.
3,Connection,Tri-Clamp (TC) ferrules (ASME BPE / ISO 2852).
4,Float Material,High-density Polypropylene (PP) or Hollow 316L SS.
5,Working Principle,Buoyancy-driven; liquid lifts the float to seal the vent.
6,Seal Material,"EPDM, Silicone, or FKM (Viton); FDA / USP Class VI."
7,Pressure Range,Typically rated from 0 to 10 bar (145 psi).
8,Temperature Range,−10°C to +120°C (dependent on float/seal material).
9,Surface Finish,Internals Ra ≤ 0.5 μm; Mirror polished exterior.
10,Orientation,Must be installed vertically at the highest point of the line.
11,Visual Inspection,Available with Borosilicate glass or full stainless housing.
12,Vent Capacity,High-volume air discharge designed to prevent water hammer.
13,Sterilization,Fully compatible with CIP (Clean-in-Place) systems.
14,Maintenance,Clamp-style bonnet for quick access to the float and seat.
15,Application,"Used in dairies, breweries, and pharmaceutical high-points."
