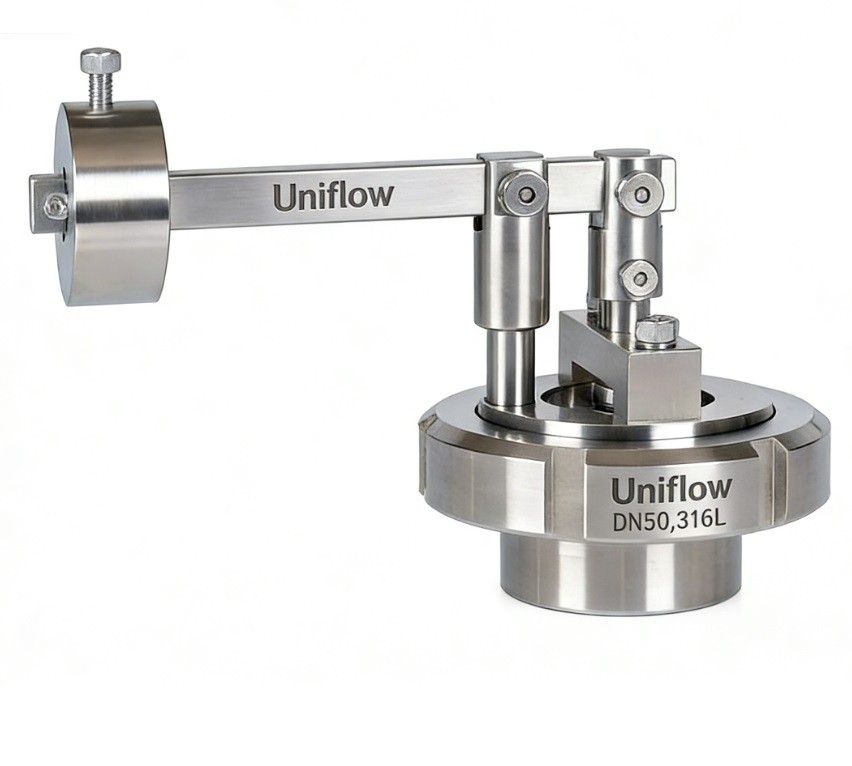

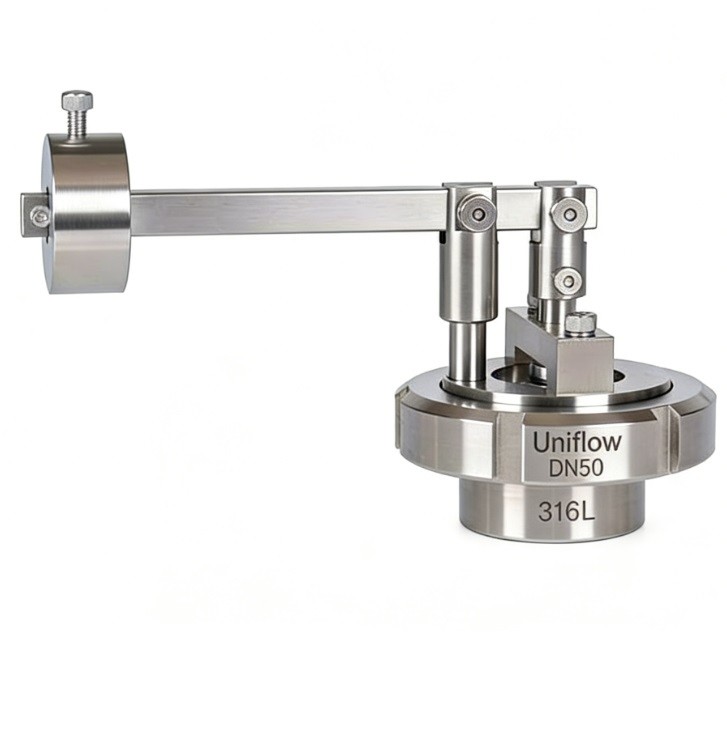

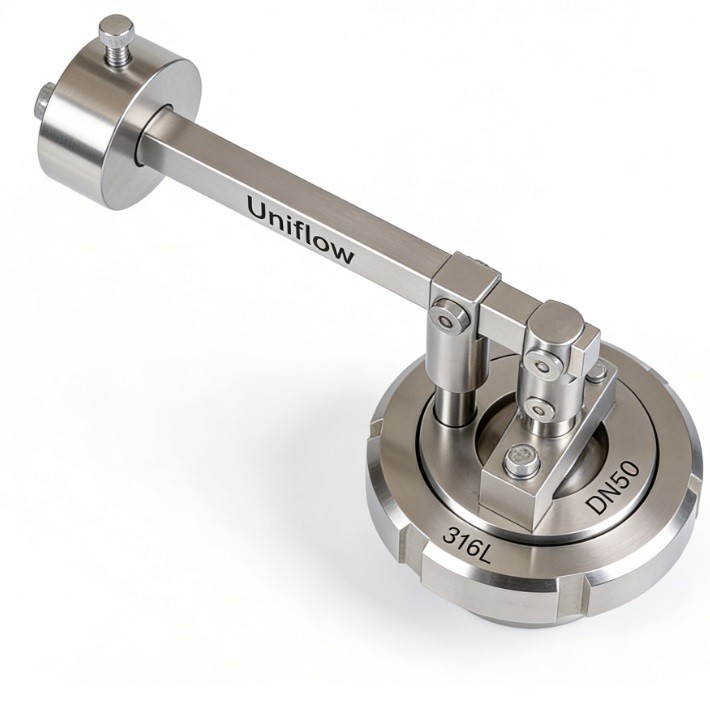

Hygienic DIN Vacuum Valve (50mbar)
This safety valve is designed to prevent tank collapse by breaking vacuum during rapid cooling or emptying. Pre-set at 50mbar, it opens to allow filtered air into the vessel when internal pressure drops. The DIN 11851 union set ensures a hygienic, leak-proof connection to metric piping systems.
Protection: Essential for thin-walled tanks prone to implosion.
Standards: Metric DIN sizing for European process lines.
Cleanliness: 316L stainless steel, fully CIP-compatible.
Technical Attributes: Hygienic DIN Vacuum Valve (50mbar)
1,Primary Function,Vacuum Relief; prevents tank implosion by allowing air intake.
2,Set Vacuum Pressure,Fixed at 50mbar (0.05 bar) negative pressure.
3,Connection Interface,"Complete DIN 11851 Union (Nut, Liner, and Seal)."
4,Standardization,Metric DN sizes (DN25 to DN100) per DIN standards.
5,Body Material,AISI 316L (1.4404) forged or machined stainless steel.
6,Seal Material,EPDM or FKM (Viton); FDA 21 CFR 177.2600 compliant.
7,Operation Logic,Weight-loaded or Spring-loaded depending on orientation.
8,Surface Finish,Internal Ra ≤ 0.4 μm; External mirror or satin polish.
9,Temperature Range,Designed for temperatures up to 140°C (SIP compatible).
10,Hygiene Grade,Sanitary Design; minimal dead spaces to prevent bacteria.
11,Air Intake Filter,Often equipped with a stainless steel mesh to block debris.
12,Installation,Must be installed vertically on the top of the vessel.
13,Closing Mechanism,Automatically reseals once internal/external pressure equalizes.
14,Union Thread,DIN 405 Standard round threads for easy hand-tightening.
15,Cleaning,Fully compatible with CIP (Clean-In-Place) cycles.
