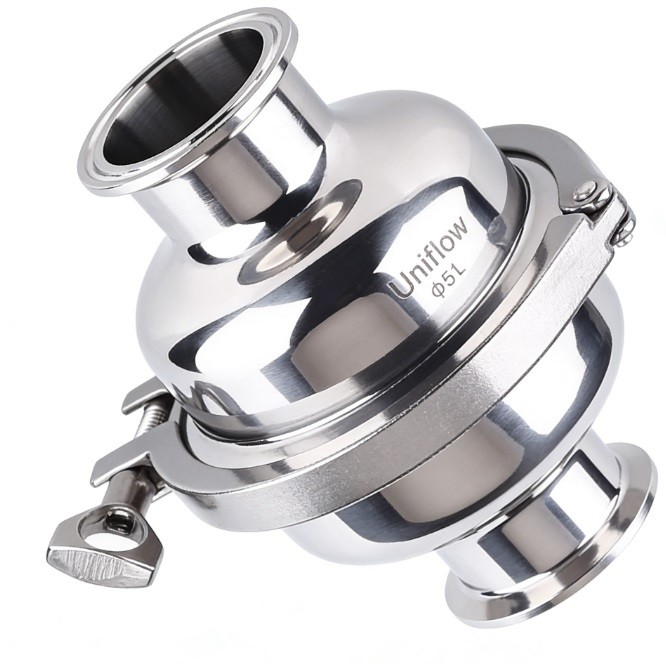

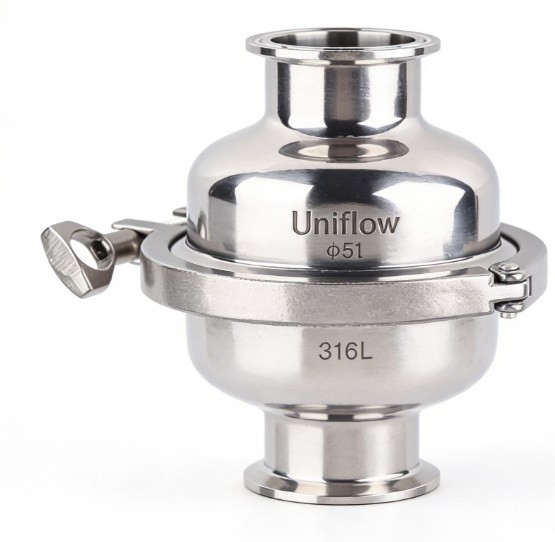

Hygienic Ball-Shape Filter
The Hygienic Ball-Shape Filter (or Spherical Strainer) is designed to remove particulates while maintaining high-purity standards. Its unique spherical body eliminates dead corners, ensuring superior flow dynamics and easier cleaning compared to standard Y-strainers.
Design: Curved interior prevents "dead zones" where bacteria could grow.
Hygiene: Typically features Tri-Clamp ends for quick-strip cleaning.
Material: 316L stainless steel with a high-mirror polish (Ra ≤ 0.4 μm).
Technical Attributes: Hygienic Ball-Shape Filter
1,Body Design,Spherical/Ball shape to eliminate dead zones and entrapment.
2,Body Material,ASTM 316L (1.4404) Stainless Steel for high corrosion resistance.
3,Connection Type,"Tri-Clamp (TC), DIN Union, or Butt-weld ends."
4,Filter Element,Perforated plate or Wedge wire mesh screen inserts.
5,Filtration Grade,Ranges from 30 mesh to 400 mesh (or 0.5mm to 2mm perforations).
6,Surface Finish,Internal Ra ≤ 0.4 μm (Mirror Polish); EP (Electropolish) optional.
7,Cleaning Method,Designed for full CIP (Clean-In-Place) and SIP compatibility.
8,Seal Material,"EPDM, FKM (Viton), or Silicone (FDA & USP Class VI compliant)."
9,Working Pressure,Typically rated up to 10 bar (145 psi).
10,Operating Temp.,Suitable for ranges from −10°C to +140°C.
11,Flow Direction,In-to-Out flow to trap particles inside the basket for easy removal.
12,Housing Access,Heavy-duty center clamp for rapid disassembly without tools.
13,Installation,Flexible; can be installed in horizontal or vertical pipelines.
14,Certifications,"Meets 3-A Sanitary Standards, FDA, and ASME BPE criteria."
15,Application,"Ideal for high-viscosity fluids like syrups, creams, and juices."
