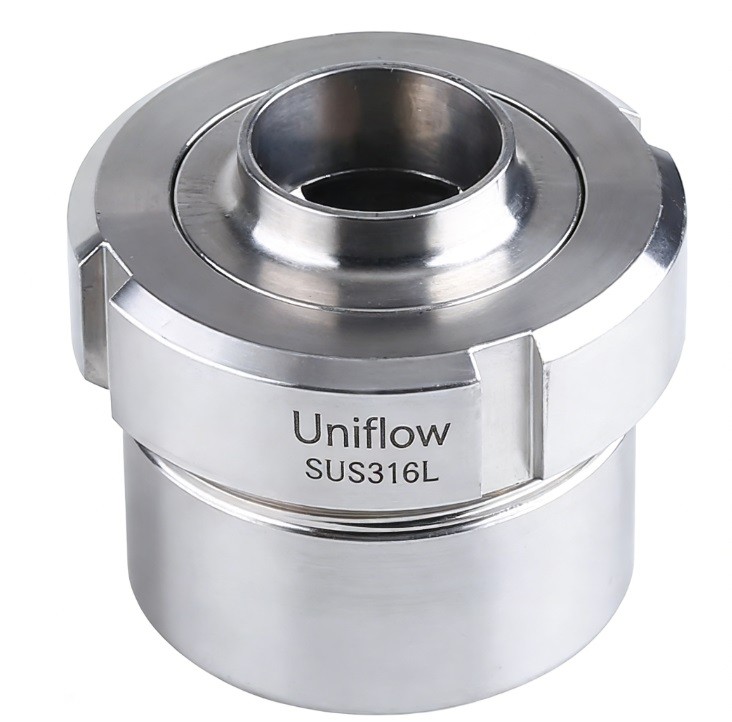

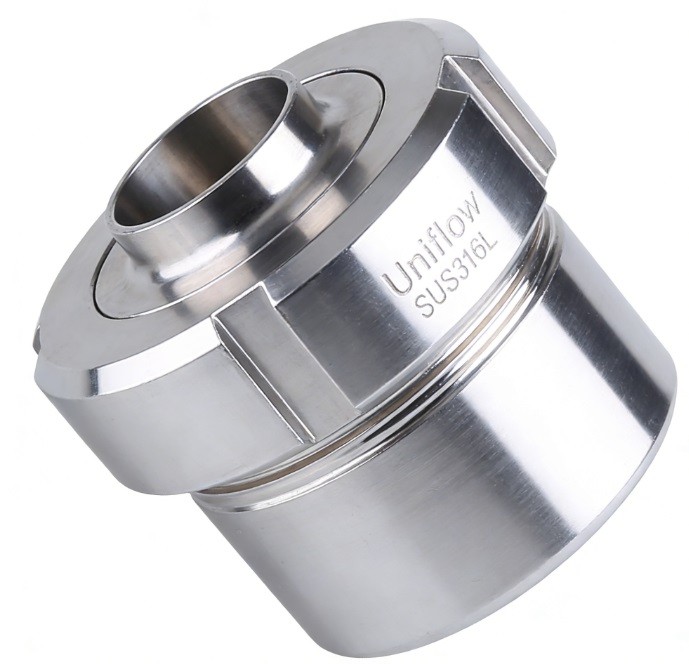

This valve is designed specifically for the SMS (Swedish Manufacturing Standard), common in European hygienic systems. It features a threaded union connection, consisting of a liner, nut, and seal, allowing for quick manual disconnection. It combines the security of a threaded joint with the ease of a modular setup.
Connection: SMS 1145 threaded union for easy breakdown.
Application: Widely used in liquid food and beverage processing.
Benefit: Allows rapid maintenance in tight spaces.
Technical Attributes: Hygienic SMS Union Non-Return Valve
1,Connection Standard,"SMS 1145 Threaded Union (Nut, Liner, and Gasket)."
2,Body Material,AISI 316L (1.4404) for process wetted parts.
3,Disassembly,Quick-release round nut with slots for C-spanners.
4,Surface Finish,Internal polish Ra < 0.8 μm; External satin or bright finish.
5,Seal Geometry,L-style or D-style SMS gaskets for crevice-free sealing.
6,Seal Material,"FDA-compliant EPDM (standard), FKM, or Silicone."
7,Mechanism,Spring-loaded plunger/poppet for instantaneous shutoff.
8,Cracking Pressure,Ranges from 0.05 to 0.2 bar for sensitive flow control.
9,Nominal Pressure,Safe operating pressure up to 10 bar (145 psi).
10,Temp. Performance,Suitable for −10°C to +140°C (SIP compatible).
11,Drainability,Eccentric or streamlined design options for horizontal/vertical use.
12,Interchangeability,Components (Springs/Plugs) often interchangeable across SMS ranges.
13,Flow Path,Fully unobstructed internal bore to minimize product shearing.
14,Certifications,"Meets 3-A, FDA, and European hygienic guidelines."
15,Vibration Resistance,Threaded union design offers superior stability in high-vibration lines.
