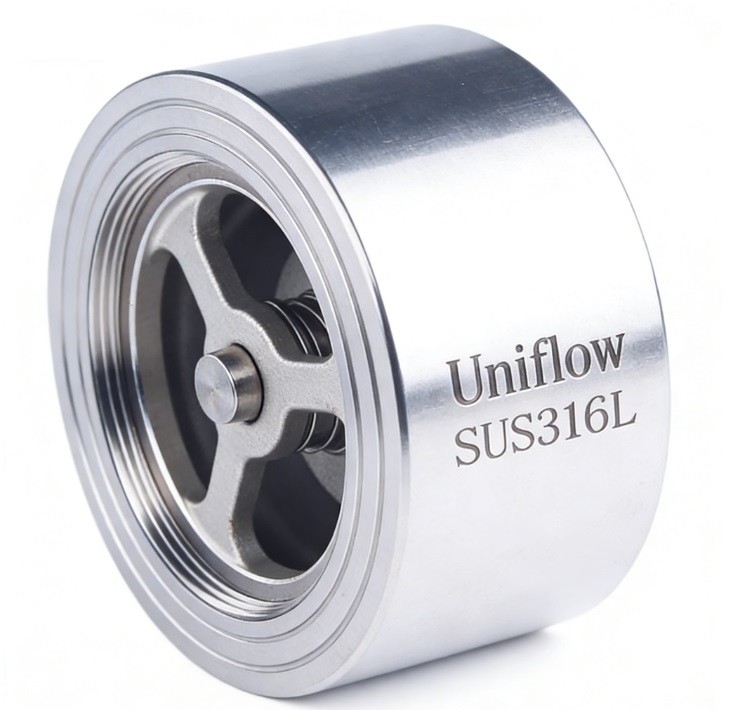

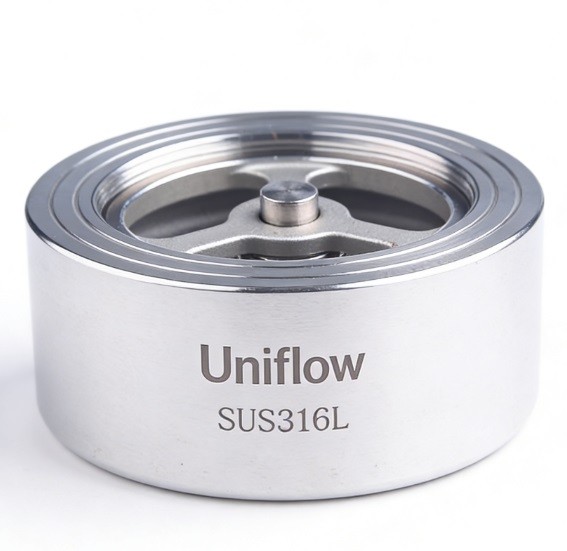

Hygienic Wafer Type Resilient Check Valve

Technical Attributes: Hygienic Wafer Type Resilient Check Valve

1,Body Design,Ultra-slim wafer profile for installation between flanges.

2,Body Material,316L Stainless Steel (CF3M) for chemical compatibility.

3,Seating Type,"Resilient Soft Seat (EPDM, FKM, or Silicone) for bubble-tight shutoff."

4,Space Efficiency,"Short ""face-to-face"" dimensions reduce overall piping footprint."

5,Centering,Self-centering body design for easy alignment between bolts.

6,Internal Finish,Ra ≤ 0.8 μm hygienic polish on all wetted surfaces.

7,Pressure Rating,Typically rated for PN10 to PN16 operations.

8,Spring Mechanism,Low-friction guided disc with 316L return spring.

9,Temperature Range,−20°C to +135°C (dependent on the resilient seat material).

10,Cracking Pressure,"Extremely low opening pressure, often <0.03 bar."

11,Installation,"Fits between DIN, ANSI, or JIS standard flanges."

12,Weight,Significantly lighter than flanged or welded body types.

13,Cleanability,"Designed for CIP/SIP with minimal ""dead zones."""

14,Application,Ideal for gas/air lines and low-viscosity liquid processing.

15,Compliance,Materials are FDA 21 CFR 177.2600 and 3-A compliant.
