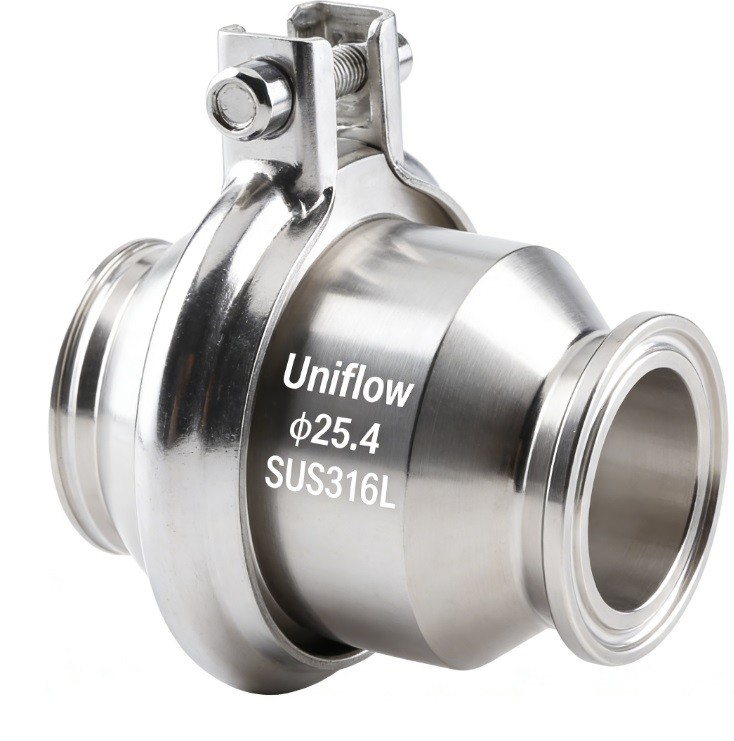

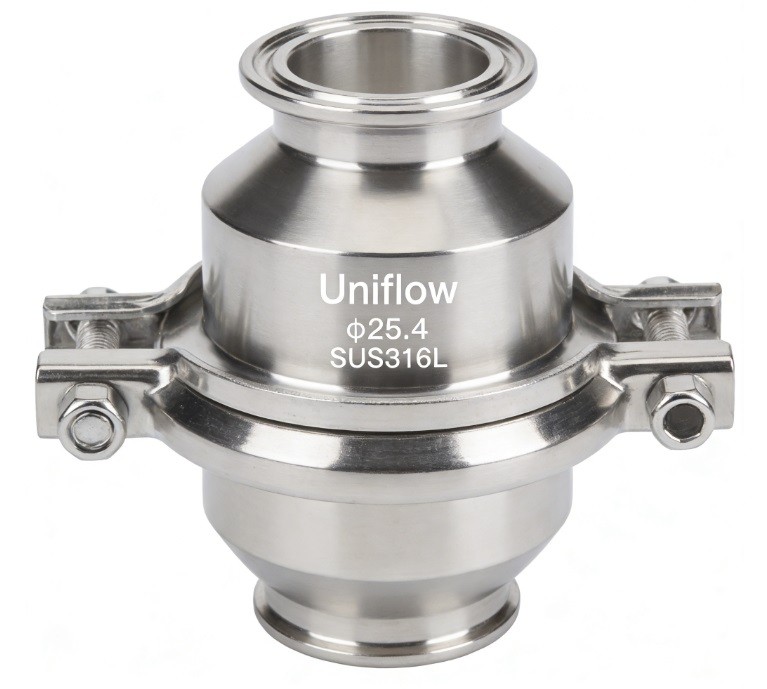

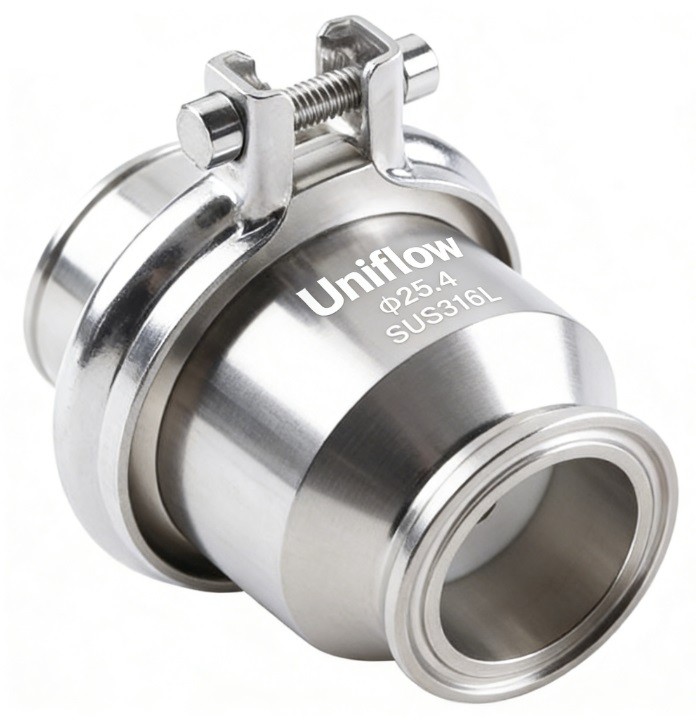

Hygienic Tri-Clamp PTFE Sealing Non return Valve

Technical Attributes: Hygienic Tri-Clamp PTFE Sealing Non-Return Valve

1,Primary Material,AISI 316L Stainless Steel to complement PTFE's corrosion resistance.

2,Seat Material,Virgin PTFE or TFM for superior chemical inertness and durability.

3,Connection Type,"Tri-Clamp (TC) Ferrules for rapid, tool-free installation/removal."

4,Chemical Range,"Resistant to almost all acids, alkalis, and organic solvents (pH 0-14)."

5,Friction Coeff.,Ultra-low friction PTFE allows for a smooth plunger stroke and less wear.

6,Temperature Max,"Can withstand higher continuous temperatures, often up to +180°C."

7,Surface Quality,Internal finish mirror-polished to Ra ≤ 0.4 μm to ensure sterility.

8,Non-Stick Prop.,"PTFE prevents viscous or sugary products from ""gumming"" the seal."

9,Compliance,Fully compliant with USP Class VI and FDA 21 CFR 177.1550.

10,Spring Force,Specifically calibrated to ensure a tight seal against the harder PTFE seat.

11,Cold Flow Res.,Design includes a metal housing to prevent PTFE deformation under pressure.

12,Sterilization,Ideal for high-pressure steam sterilization (SIP) without seal swelling.

13,Leak Class,Engineered for bubble-tight shutoff (Class VI) at specified backpressures.
