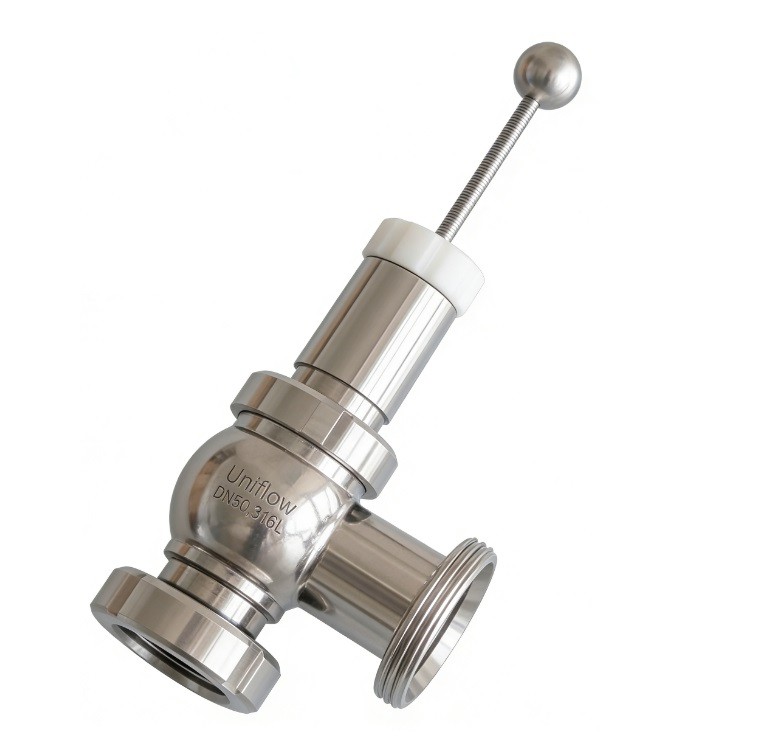

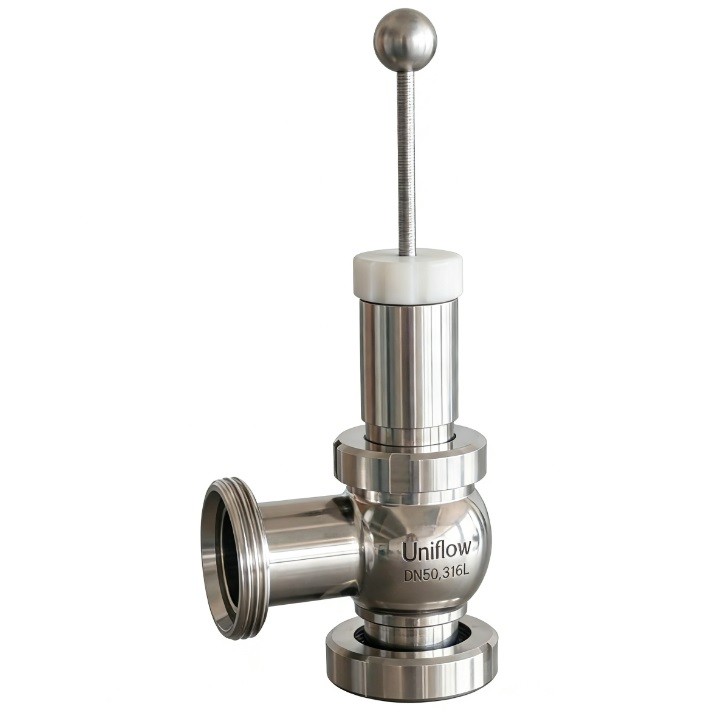

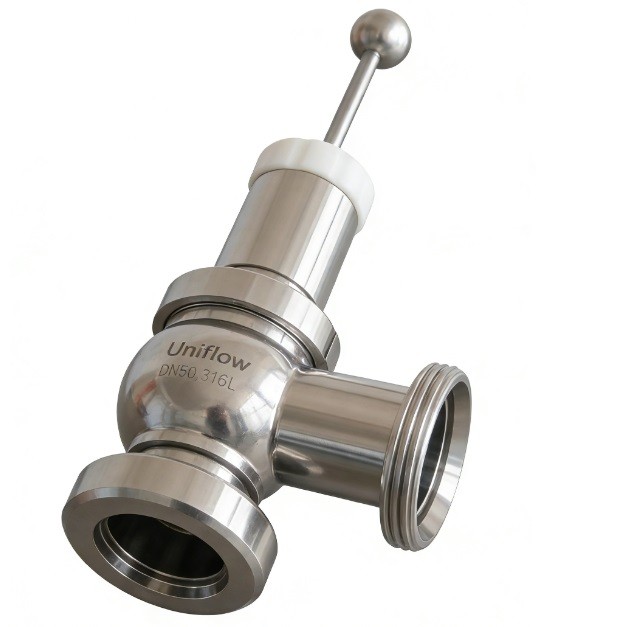

Hygienic DIN Metric Safety Valve (0.3 bar)
This specialized safety valve is designed for low-pressure protection in metric-standard systems. It comes with a complete DIN union set (liner, nut, and seal) for seamless integration into DIN 11851 piping. Factory-set at 0.3 bar, it is ideal for protecting thin-walled atmospheric tanks or fermenters from overpressure during filling or thermal expansion.
Standard: DIN metric sizing for global compatibility.
Safety: Pre-set 0.3 bar crack pressure for delicate vessels.
Hygiene: 316L stainless steel with a high-polish, crevice-free finish.
Technical Attributes: Hygienic DIN Metric Safety Valve (0.3 bar)
1,Connection Type,"Complete DIN 11851 Union (Liner, Nut, and Gasket)."
2,Set Pressure,Factory-calibrated at 0.3 bar (approx. 4.35 psi).
3,Sizing Standard,"Metric (DN) standard (e.g., DN25, DN40, DN50)."
4,Body Material,AISI 316L (1.4404) Stainless Steel.
5,Gasket Material,EPDM (Standard) or FKM (Viton); FDA-approved.
6,Pressure Handling,Low-pressure sensitive; designed for delicate vessels.
7,Surface Treatment,Internals Ra ≤ 0.5 μm; Polished finish.
8,Manual Lift,Optional manual pull-rod for CIP cleaning of seat.
9,Operating Temp.,Continuous use up to 120°C; SIP peaks up to 140°C.
10,Closing Logic,Spring-loaded; automatic reset when pressure <0.3 bar.
11,Vent Direction,90∘ Angle Discharge (Side outlet) to manage exhaust.
12,Hygiene Grade,Sanitary Grade; no dead corners or exposed threads in media.
13,Union Thread,Consistent with DIN 405 round thread standard.
14,Maintenance,Easily dismantled by unscrewing the DIN nut for seal check.
15,Traceability,Material certificates (EN 10204 3.1) provided upon request.
