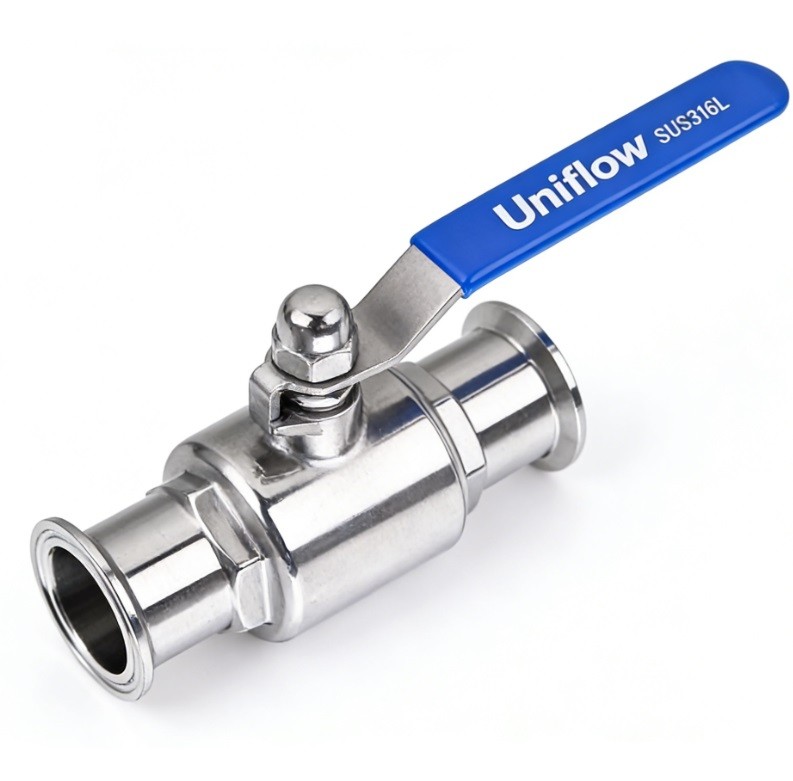

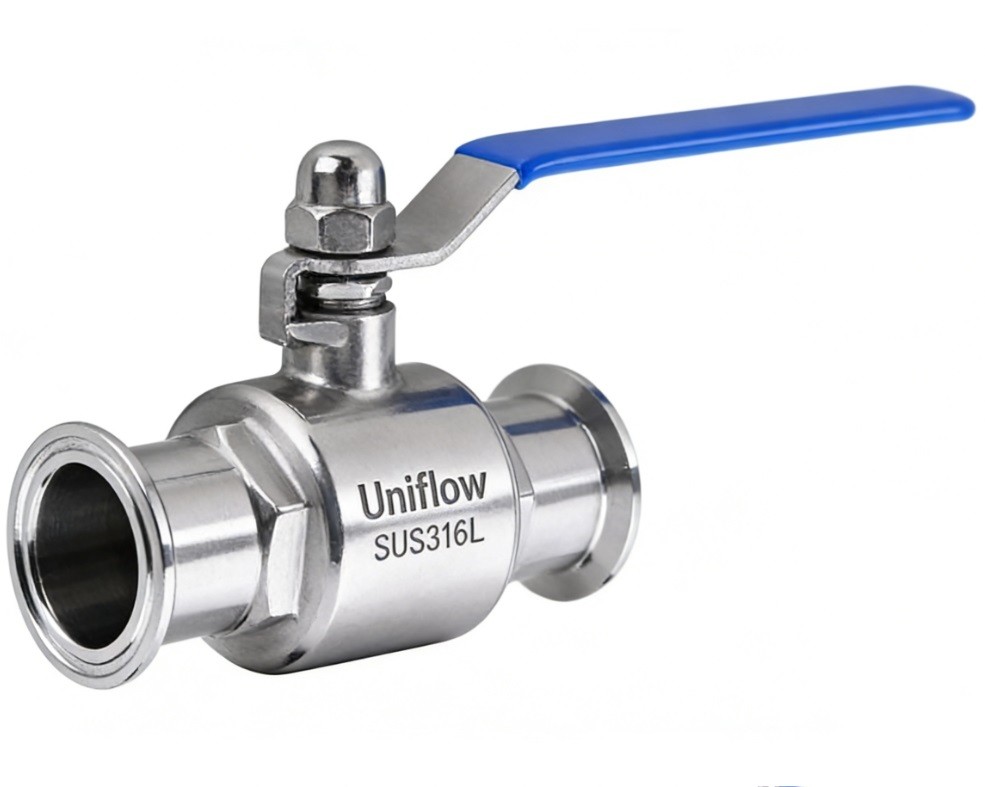

The Hygienic 316L Tri-Clamp Ball Valve is a high-purity flow control device featuring a full-bore design to ensure zero flow restriction. Constructed from SS316L, it utilizes Tri-Clamp ends for rapid assembly and disassembly. Its most critical feature is the encapsulated PTFE seat (cavity filler), which eliminates dead spaces where bacteria could grow. 3A and FDA compliant, it is the gold standard for handling viscous fluids or high-pressure lines in pharma and food sectors.
Technical Attributes: Hygienic 316L Tri-Clamp Ball Valve
1,Size Range,1/2" to 4" (Standard Sanitary Sizes)
2,Body Material,ASTM A351 CF3M / Stainless Steel 316L
3,Connection Type,Tri-Clamp (ASME BPE / BS 4825-3)
4,Flow Design,Full Bore (unobstructed flow path)
5,Seat Design,Fully Encapsulated PTFE (Cavity Filler)
6,Internal Finish,Mirror Polish Ra≤0.4μm
7,External Finish,Bright/Satin Polish Ra≤0.8μm
8,Max Pressure,1000 psi (64 bar) depending on size/temp
9,Temp. Range,−20∘C to +150∘C (Continuous)
10,Stem Seal,Live-loaded self-adjusting PTFE packing
11,Operation,Locking Manual Handle or ISO 5211 Pad
12,Compliance,"3-A Sanitary, FDA 177.1550, USP Class VI"
13,Cleaning,CIP/SIP compatible
14,Structure,3-Piece Bolted Body (Easy maintenance)
15,Bore Type,True Port (Matches Tube ID exactly)
