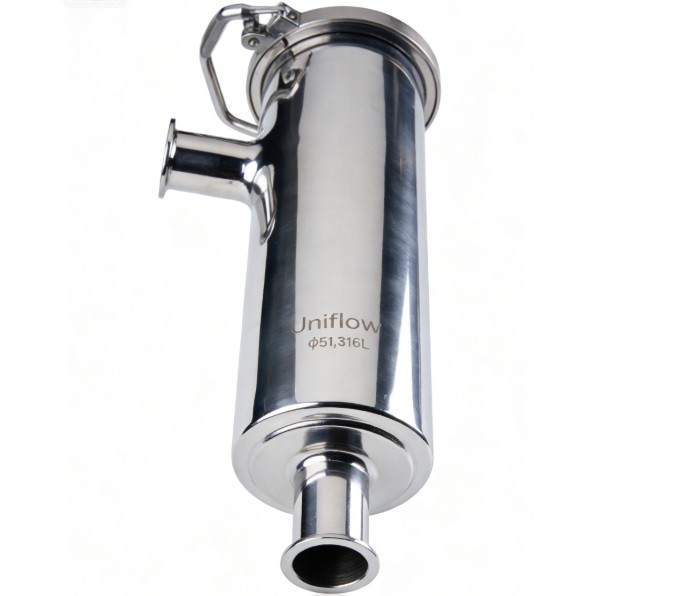

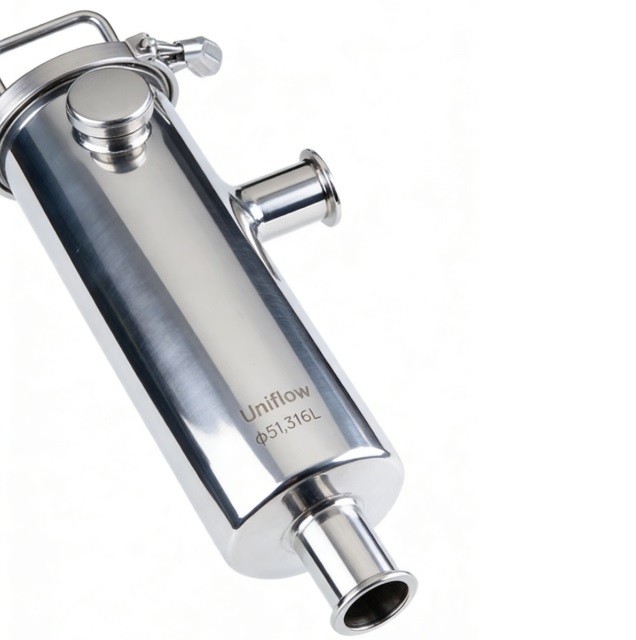

Hygienic Tri-Clamp Stainless Steel Angle Filter

Technical Attributes: Hygienic Tri-Clamp Stainless Steel Angle Filter

1,Body Configuration,L-Type (90-degree angle); serves as both a filter and a pipe elbow.

2,Body Material,AISI 316L (1.4404) Stainless Steel for maximum purity.

3,Connection Type,"Tri-Clamp (TC) ferrules for rapid, tool-free assembly."

4,Filter Element,Removable perforated backup tube with fine mesh overlay.

5,Mesh Sizes,Range from 20 mesh (915μm) to 400 mesh (38μm).

6,Surface Finish,Internal Ra ≤ 0.4–0.8 μm; mirror-polished or satin exterior.

7,Seal Material,"EPDM (Standard), FKM (Viton), or Silicone (FDA approved)."

8,Working Pressure,Designed for operating pressures up to 10 bar (145 psi).

9,Operating Temp.,Suitable for high-temp processing from −10°C to +140°C.

10,Maintenance Access,Top-entry clamp allows mesh removal without disturbing pipework.

11,Flow Direction,Typically Outside-to-Inside (solids trapped on exterior of mesh).

12,Sterilization,Fully compatible with CIP (Clean-in-Place) and SIP cycles.

13,Area Ratio,Large filtration area relative to pipe diameter to minimize pressure drop.

14,Standard Compliance,"Manufactured to 3-A, DIN, SMS, or ISO sanitary standards."

15,Application,"Protection for pumps, homogenizers, and spray nozzles."
