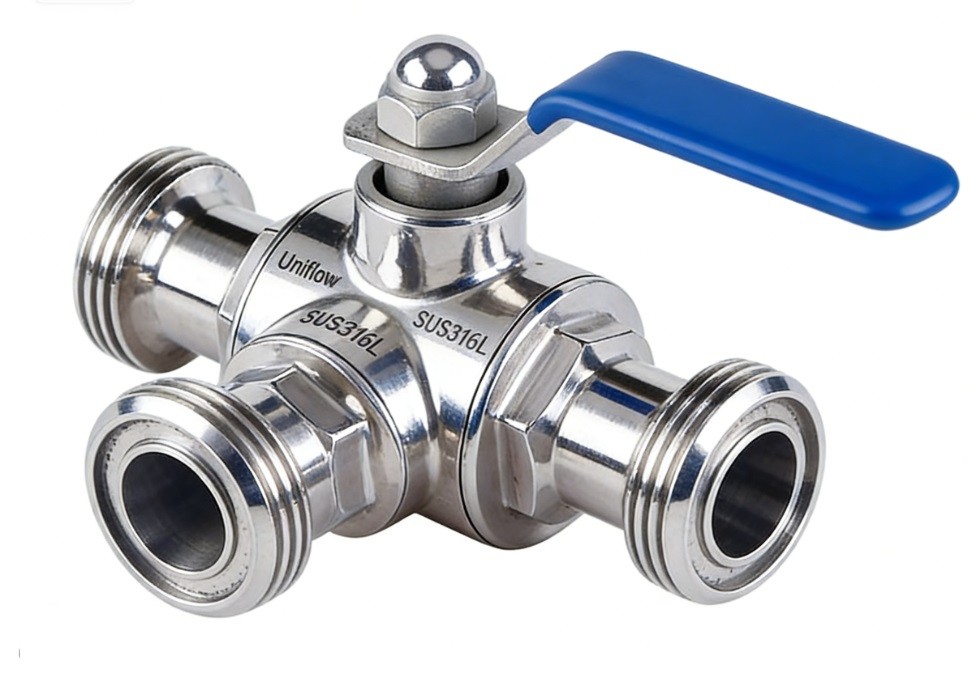

The Hygienic SMS Male Threaded 3-Way Ball Valve is designed for the Swedish Manufacturing Standard (SMS), widely used in European food and dairy sectors. It features a 316L stainless steel body with external metric threads for quick-release union connections. The L-bore or T-bore configuration allows for fluid diversion or mixing, while fully encapsulated PTFE seats eliminate dead zones. It is FDA compliant and highly resistant to high pressures and viscous media.
Technical Attributes: Hygienic SMS 3-Way Ball Valve
1,Size Range,SMS 25, 38, 51, 63, 76, 101 (approx. 1" to 4")
2,Standard,SMS 1145 (Swedish Manufacturing Standard)
3,Bore Type,T-Bore (Mixing/Diversion) or L-Bore (90° Diversion)
4,Connection,SMS Male Threaded (External metric threads)
5,Body Material,Stainless Steel 316L (EN 1.4404)
6,Ball Seats,Fully Encapsulated PTFE (Cavity Fillers)
7,Internal Finish,Mirror Polish Ra≤0.4μm
8,External Finish,Satin or Bright Polish Ra≤0.8μm
9,Working Pressure,10 bar (145 psi) standard; 16 bar optional
10,Temp. Range,−20∘C to +150∘C
11,Seal Material,FDA EPDM or FKM (Viton) for stem/body seals
12,Operation,304SS Manual Handle or ISO 5211 Actuator Mount
13,Cleaning,Fully CIP (Clean-in-Place) compatible
14,Compliance,"FDA 21CFR177.1550, 3-A Sanitary, CE"
15,Handle Rotation,"90°, 180°, or 360° with locking capability"
