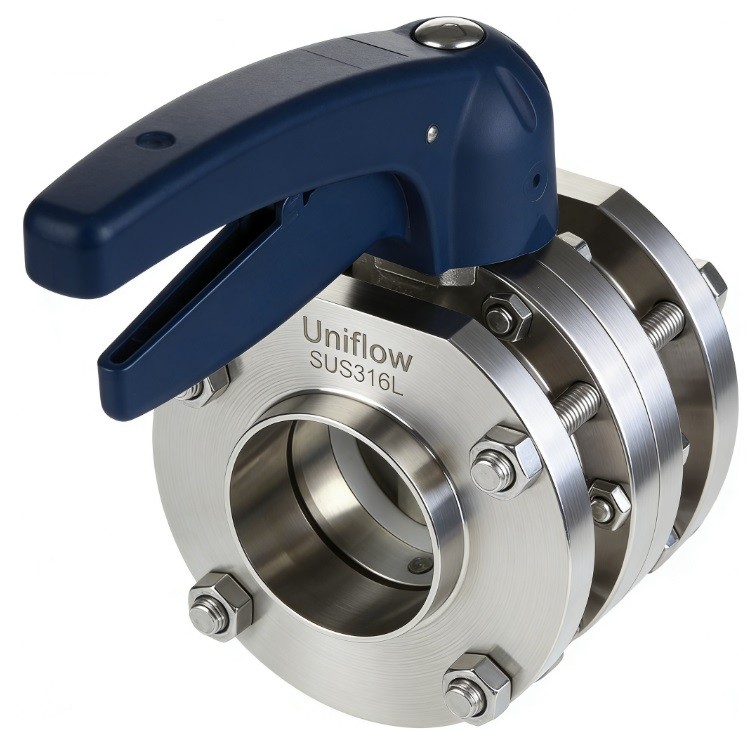

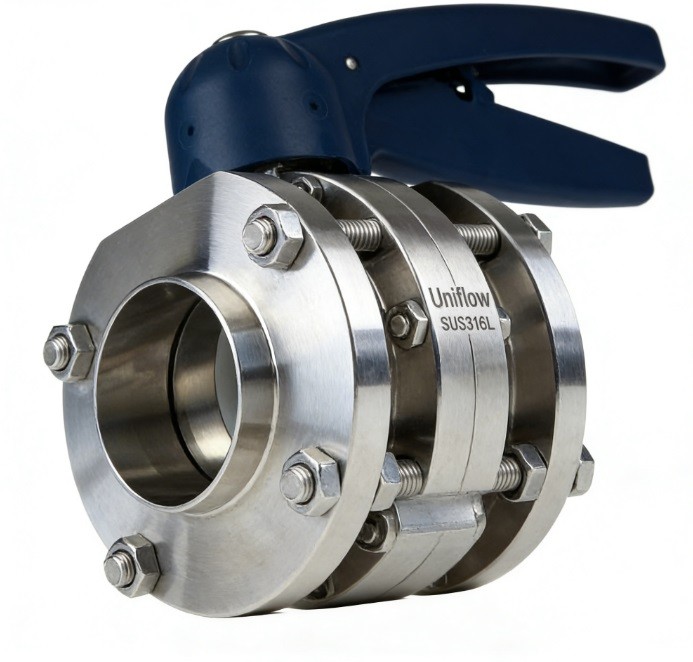

The Wafer-Type Plain End Hygienic Butterfly Valve is a space-saving, high-purity valve designed to be "sandwiched" between two pipe ends. Unlike standard welded valves, the wafer body is held in place by bolts connecting two separate plain (butt-weld) flanges. This allows the central valve body to be removed for maintenance without cutting the line. Made of SS316L, it is 3A/FDA compliant, featuring a mirror-polished finish ideal for compact pharmaceutical and food skids.
Technical Attributes: 4-Bolt Wafer Plain End Valve
1,Size Range,1" to 6" (DN25 – DN150)
2,Design Type,Wafer (Sandwich) style with 4-bolt alignment
3,End Connection,Plain Butt-Weld ends (Matches ASME BPE or DIN)
4,Body Material,Forged Stainless Steel 316L (1.4404)
5,Internal Surface,High-precision Mirror Polish Ra≤0.4μm
6,External Surface,Machined or Satin Finish Ra≤0.8μm
7,Seal Material,"FDA EPDM (Standard), Silicone, or FKM (Viton)"
8,Working Pressure,10 bar (145 psi)
9,Temp. Range,−10∘C to +135∘C (Subject to seal choice)
10,Cleanability,100% CIP/SIP compatible; no dead legs
11,Compliance,"3-A Sanitary, FDA 21CFR177.2600, CE/PED"
12,Handle Type,Multi-position Trigger or Pull Handle (304SS)
13,Disk Design,Streamlined 316L disk for minimal pressure drop
14,Assembly,4 x Hex bolts with lock-nuts for vibration resistance
15,Maintenance,"""Drop-out"" design; body slides out after bolt removal"
