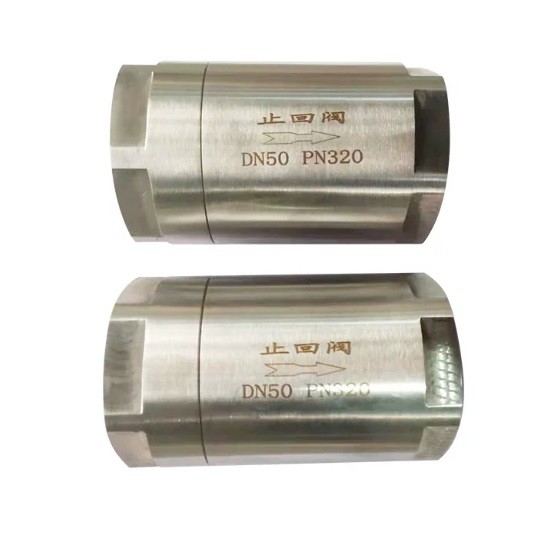

High pressure stainless steel in-line check valve PN320

This heavy-duty high-pressure stainless steel in-line check valve (PN320) is engineered for reliable backflow prevention in high-pressure piping systems. Featuring a robust forged stainless steel body and female threaded connections, it ensures unidirectional fluid flow, minimal pressure drop, and exceptional durability under severe working conditions up to 320 bar.

Download

Technical Specifications

Valve Type: In-line Spring Loaded Check Valve / Non-Return Valve
Nominal Diameter: DN50 (2 Inch)
Nominal Pressure: PN320 (32 MPa / 320 Bar / Approx. 4640 PSI)
Body Material: Stainless Steel 316 (CF8M) / 304 (CF8) / Forged SS316L
Poppet/Disc Material: Stainless Steel 316 / Stellite faced
Spring Material: Stainless Steel 316 / Inconel (for high-temperature resilience)
Seal Type: Metal-to-Metal Seal / PEEK / Viton (Depending on temperature requirement)
Connection Type: Female Threaded (NPT, BSPT, or G thread)
Flow Direction: Unidirectional (Indicated by the permanent arrow etched on body)
Cracking Pressure: 0.5 bar to 2.0 bar (Standard spring setting, customizable)
Maximum Operating Temperature: -20°C to +200°C (with soft seals) / up to +400°C (with full metal-to-metal seating)
Applicable Medium: High-pressure water, steam, hydraulic oil, oil & gas, and mild corrosive chemicals
Structure Design: Two-piece threaded body construction with high-tensile thread engagement
Flow Coefficient (Cv): High-flow efficiency design with minimized turbulence
Leakage Class: ANSI Class V (Metal seat) or Zero Leakage / Bubble Tight (Soft seat)
Shell Test Pressure: 48.0 MPa (1.5 times nominal pressure for safety validation)
Sealing Test Pressure: 35.2 MPa (Hydraulic testing standard)
Design Standards: Machined and tested in accordance with DIN 3230, ASME B16.34
Surface Finish: Fine brushed stainless steel exterior, burr-free interior finish
Features: Hexagonal or flat-slotted ends for easy wrench tightening and installation
