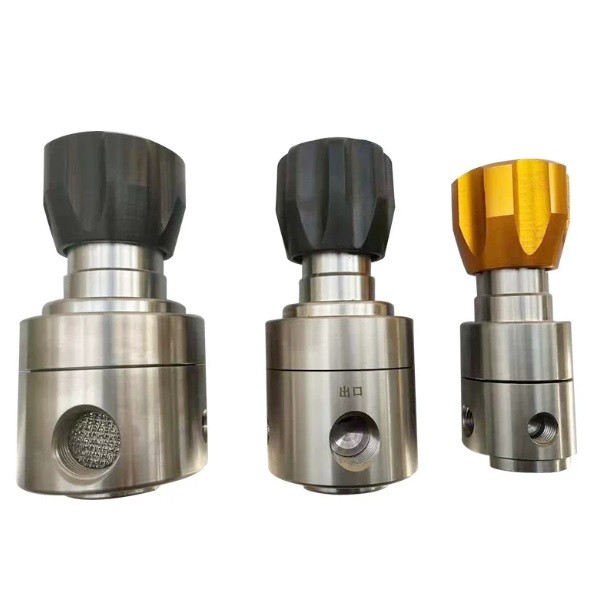

Stainless steel high pressure regulator for gas cylinder

Technical Specifications

1. Product Type: High Pressure Gas / Fluid Pressure Regulator

2. Structure Type: Single-Stage (or Two-Stage) Diaphragm/Piston Type

3. Body Material: Stainless Steel 316L / 316 / 304

4. Seat Material: PCTFE / PEEK / PTFE (Depending on pressure requirements)

5. Diaphragm/Piston Material: Stainless Steel 316L / Hastelloy (for high flexibility and purity)

6. Inlet Protection: Built-in Stainless Steel Sintered Mesh Filter (protects internal components)

7. Maximum Inlet Pressure: 3000 PSI / 4000 PSI (approx. 250 - 300 bar)

8. Outlet Pressure Ranges: 0–25, 0–50, 0–100, 0–250, 0–500 PSI (Multiple adjustable ranges)

9. Inlet/Outlet Port Size: 1/4" NPT (Female), 1/8" NPT, or customized compression fittings

10. Gauge Ports: Dual 1/4" NPT ports for inlet and outlet pressure gauges (standard configurations)

11. Flow Coefficient (Cv): 0.06 / 0.15 / 0.2 (Optimized for instrumentation and high purity lines)

12. Operating Temperature: -40°F to +165°F (-40°C to +74°C)

13. Applicable Medium: High purity gases, corrosive gases, specialty gases (O2, N2, Ar, He, H2), and liquids

14. Adjustment Mechanism: Manual handknob with fine-pitch thread for precise control

15. Handknob Material: Anodized Aluminum (Gold/Black) or Heavy-duty Engineering Plastic

16. Inboard Leak Rate: ≤ 2 x 10⁻⁸ atm cc/sec Helium (Ensures high purity standard)

17. Outboard Leak Rate: ≤ 2 x 10⁻⁹ atm cc/sec Helium

18. Design Standards: Compliant with CGA, ASME, and high-purity piping regulations

19. Mounting Options: Panel mounting capability or pipeline mounting

20. Cleaning and Packaging: Oxygen-clean standard / Cleanroom assembled and vacuum-bagged
