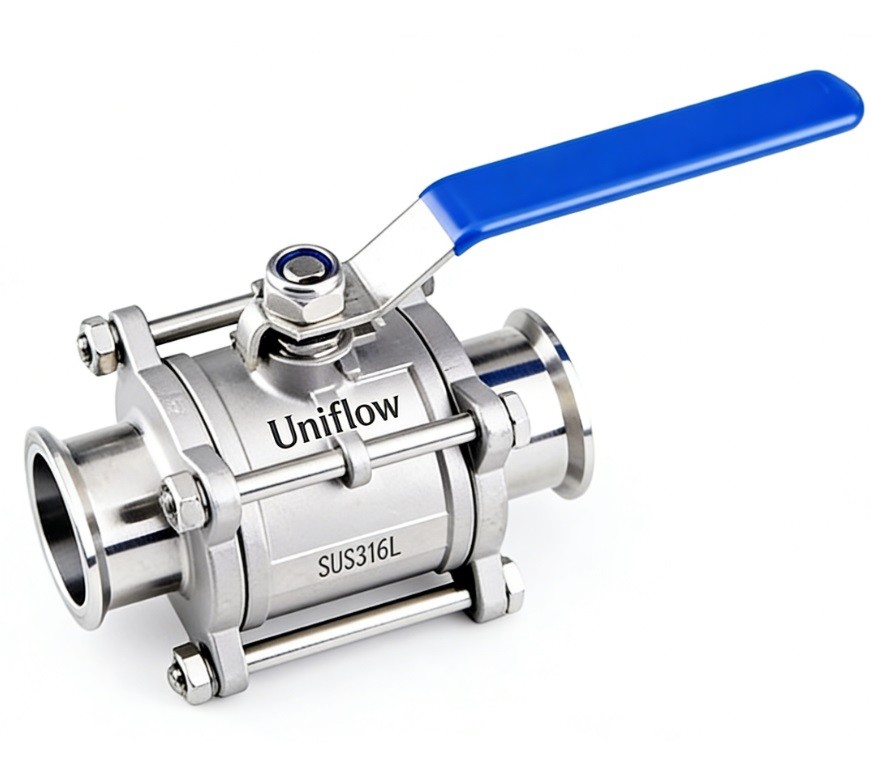

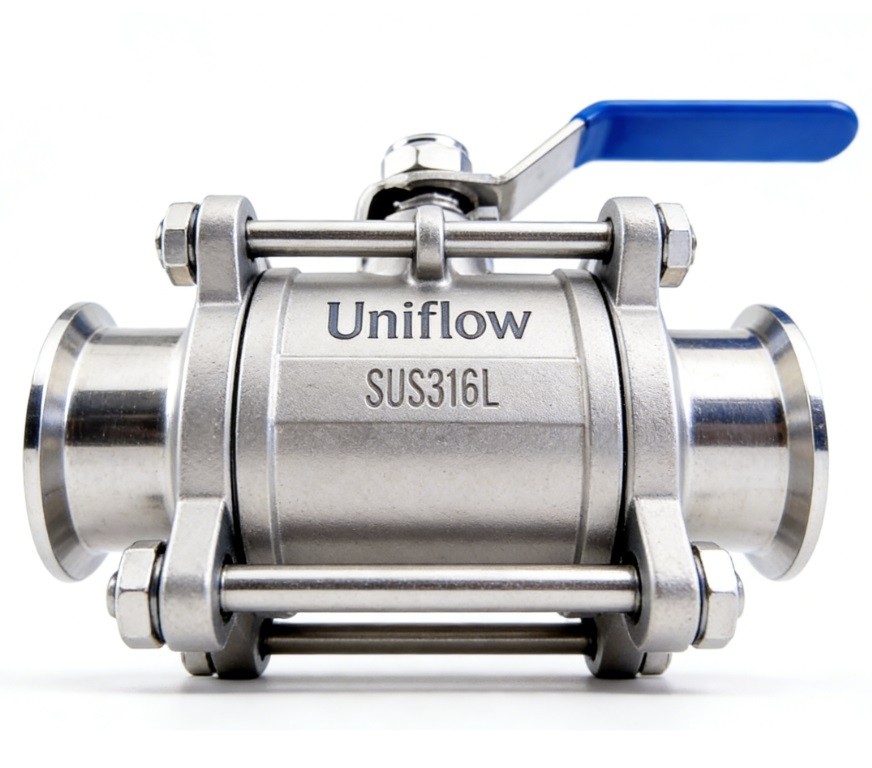

The 3-Piece Tri-Clamp Ball Valve is the sanitary industry standard for high-pressure and high-purity flow control. Its signature feature is a "swing-out" body; by removing a few bolts, the center section containing the ball and seats can be serviced without removing the Tri-Clamp ends from the pipe. Made of SS316L, it uses encapsulated PTFE seats to eliminate bacterial traps. It is 3A/FDA compliant, offering a full-bore path ideal for food, dairy, and biotech.
Technical Attributes: 3-Piece Tri-Clamp Ball Valve
1,Size Range,1/2" to 4" (Standard Sanitary Tube Sizes)
2,Material,Forged or Investment Cast Stainless Steel 316L
3,Connection,"Tri-Clamp (ASME BPE, ISO 2852, or DIN 32676)"
4,Body Design,3-Piece Bolted (Allows inline maintenance)
5,Bore Type,Full Bore (Internal diameter matches pipe ID)
6,Seat Material,Fully Encapsulated PTFE (Cavity Fillers)
7,Internal Finish,Mirror Polish Ra≤0.4μm (20 Ra)
8,External Finish,Satin or Bright Polish Ra≤0.8μm (32 Ra)
9,Working Pressure,"1000 psi (64 bar) WOG (Water, Oil, Gas)"
10,Temp. Range,−20∘C to +150∘C (Sterilization to +180∘C)
11,Compliance,"3-A Sanitary, FDA 21CFR177.1550, USP Class VI"
12,Operation,Lockable Manual Handle or ISO 5211 Mounting Pad
13,Stem Design,Blow-out proof stem with live-loaded packing
14,Cleaning,100% CIP/SIP compatible
15,Sealing,Multi-layer PTFE stem seals + body O-rings
