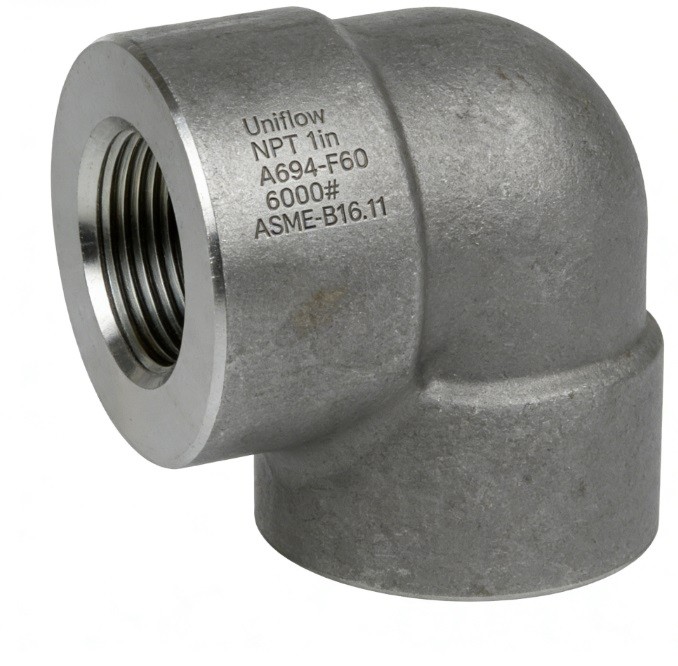

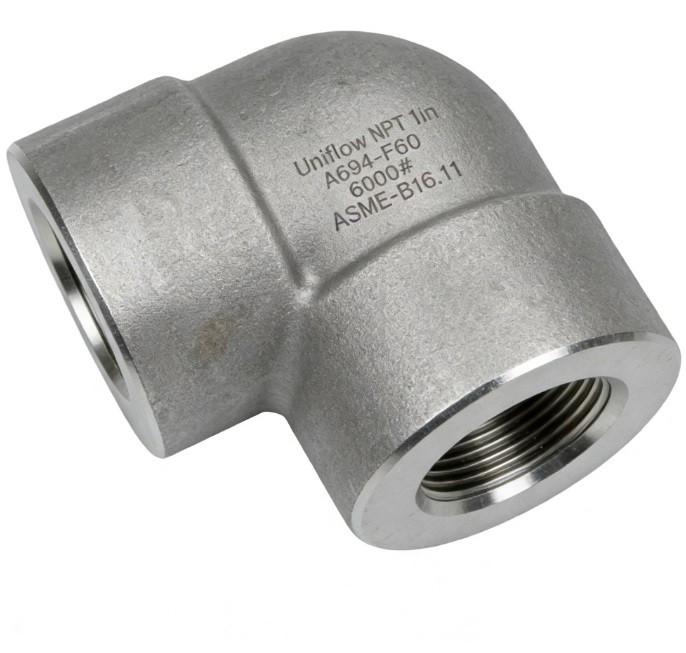

The ASME B16.11 A694 High-Yield Threaded Elbow is a specialized fitting for high-pressure transmission and cryogenic service. Forged in grades from F42 to F80, it offers a superior strength-to-weight ratio, maintaining structural integrity under extreme stress. Precision NPT or BSP threads allow for secure, weld-free assembly in remote or hazardous zones. Rated for 3000 PSI, it is the preferred choice for arctic pipelines and gas manifolds requiring both high yield strength and low-temperature toughness.
Technical Attributes: A694 3000# Threaded Elbow
Standard,ASME B16.11 / ASTM A694
Material Grades,"F42, F52, F60, F65, F70, F80"
Fitting Type,90° or 45° Threaded Elbow
Pressure Class,3000 LBS (Class 3000)
Size Range,1/8" to 4" (NPS)
Thread Type (NPT),ASME B1.20.1 (Tapered)
Thread Type (BSP),BS 21 / ISO 7-1 (Tapered or Parallel)
Yield Strength (F65),≥450 MPa (65 ksi)
Yield Strength (F80),≥550 MPa (80 ksi)
Tensile Strength,≥415–690 MPa (Grade dependent)
Service Temp,Suitable for Cryogenic/Arctic Service
Impact Testing,Charpy V-Notch (per project requirements)
Manufacturing,"Forged, Heat Treated, Fully Machined"
Heat Treatment,Normalizing / Quenching & Tempering
Testing Standard,"UT, MT, Hardness, Thread Gauging"
Surface Finish,Anti-rust Oil / Galvanized / Epoxy Coated
Hardness,≤197–235 HBW
Certification,EN 10204 3.1 / MTR
Primary Use,High-Pressure Gas & Arctic Transmission
