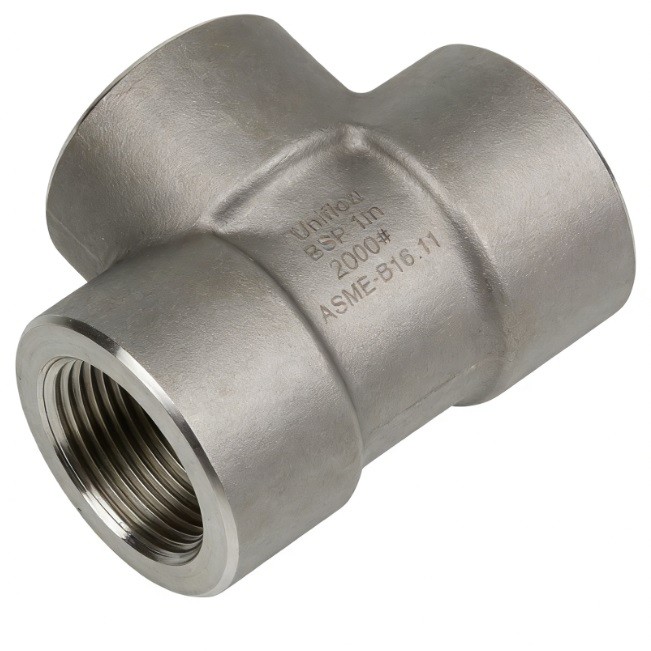

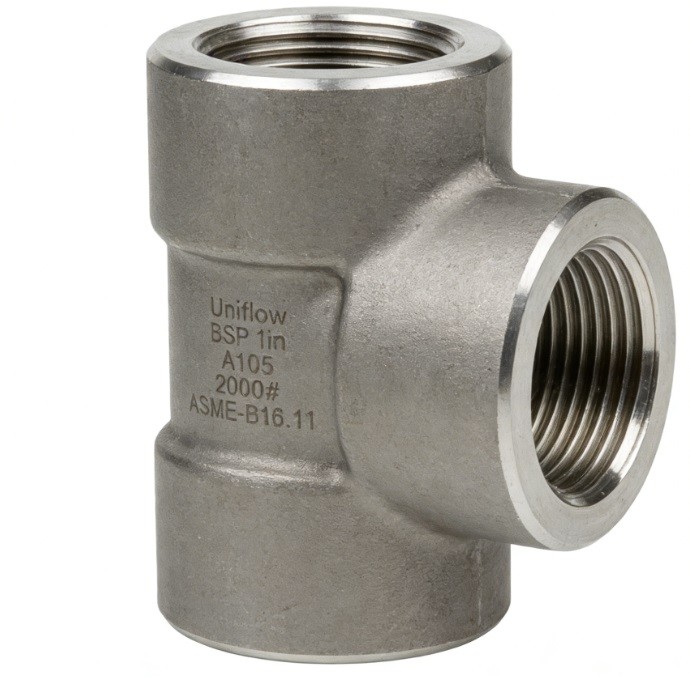

The ASME B16.11 A105 2000# Threaded Tee is a forged branching fitting for medium to high-pressure piping. Forged from ASTM A105 carbon steel, it features precision-machined NPT or BSP threads for secure, weld-free connections. The 2000# class offers a lighter, cost-effective alternative to 3000# fittings while maintaining high structural integrity. It is ideal for steam, air, and oil lines where rapid assembly and reliable 90-degree branch distribution are required.
Technical Attributes: A105 2000# Threaded Tee
Standard,ASME B16.11 / BS 3799
Material Grade,ASTM A105 / A105N (Normalized)
Fitting Type,Straight Tee (Equal Tee)
Pressure Class,2000 LBS (Class 2000)
Size Range,1/8" to 4" (NPS)
Thread Type (NPT),ASME B1.20.1 (Tapered)
Thread Type (BSP),BS 21 / ISO 7-1 (Tapered or Parallel)
Manufacturing,"Forged, Heat Treated, Machined"
Carbon Content,≤0.35%
Manganese Content,0.60%–1.05%
Tensile Strength,≥485 MPa (70 ksi)
Yield Strength,≥250 MPa (36 ksi)
Elongation,≥22%
Heat Treatment,Normalizing (A105N)
Testing Standard,"Dimensional, Hardness, Thread Gauging"
Surface Finish,Anti-rust Oil / Galvanized / Black Paint
Hardness,≤187 HBW
Certification,EN 10204 3.1 / MTR
Primary Use,"Medium-Pressure Oil, Gas, & Steam"
