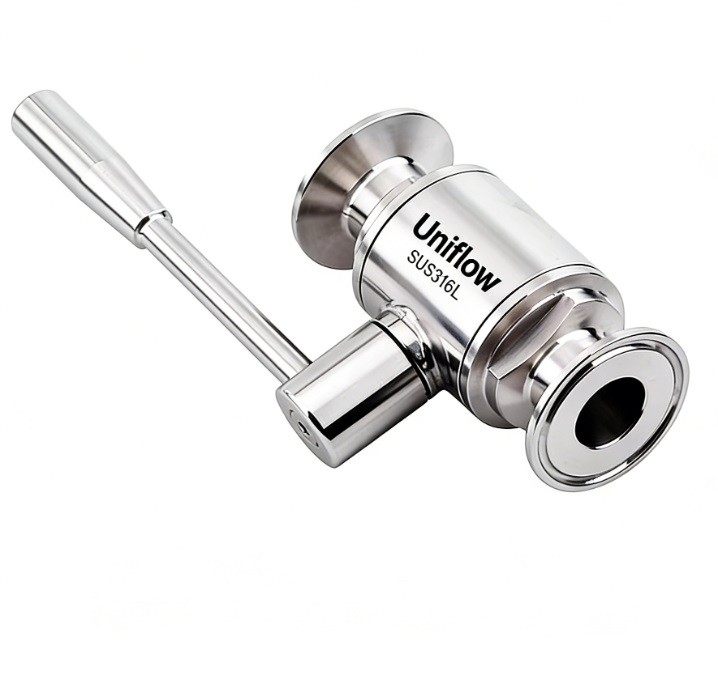

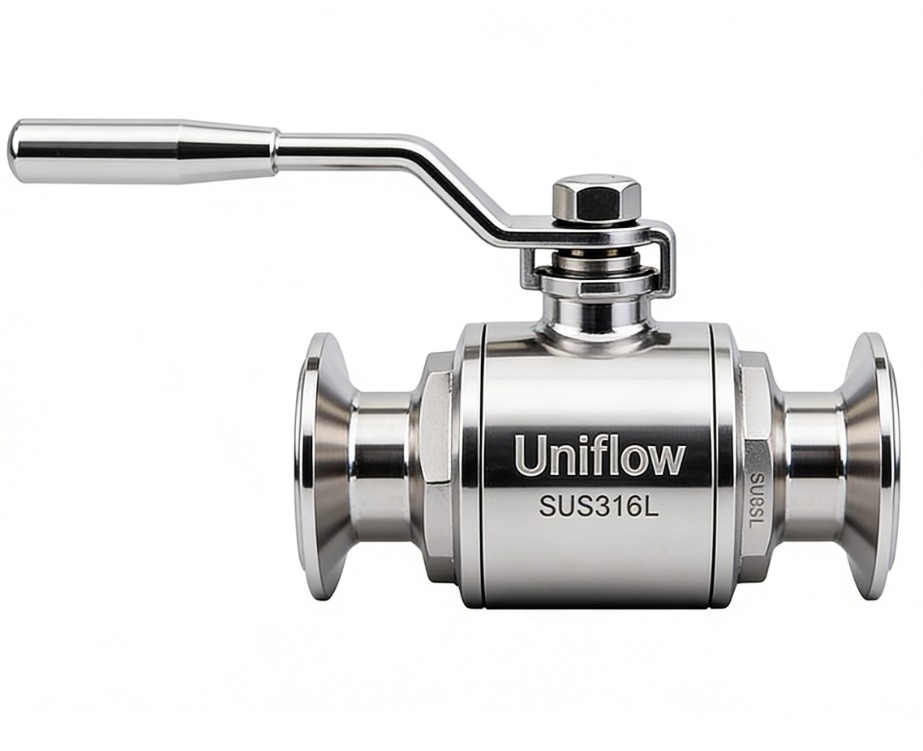

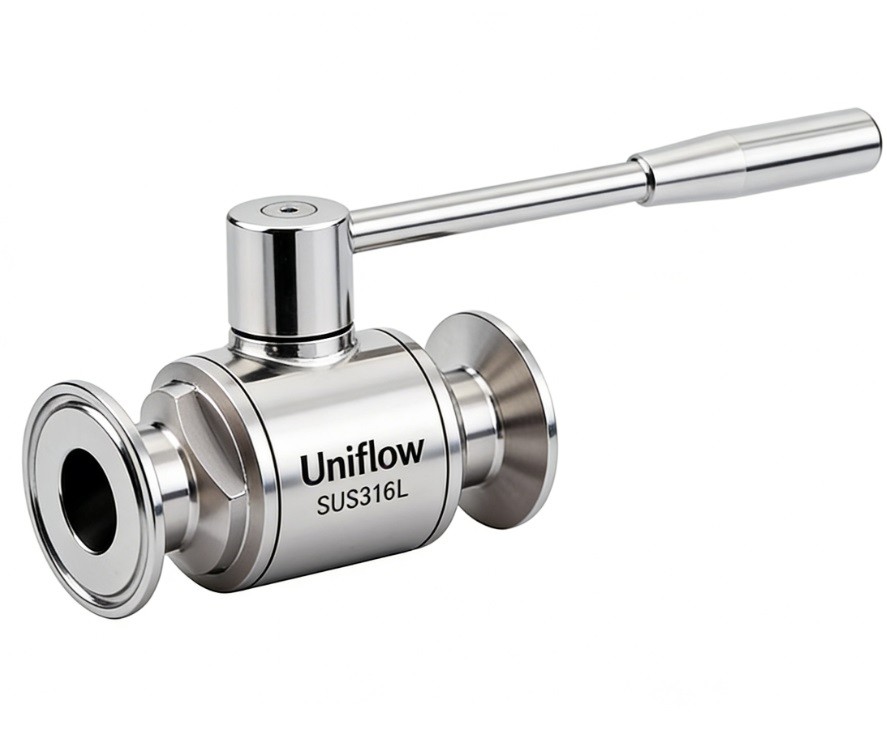

This Complete Set is a comprehensive assembly designed to provide a "plug-and-play" solution for sanitary piping. By bundling the 316L Ball Valve with its mating Ferrules, High-Pressure Clamps, and Union components, it ensures that all tolerances match perfectly, eliminating the common issue of mismatched flange faces or gasket seats. The inclusion of the Union Nut allows for a transition between standard Tri-Clamp piping and DIN/SMS threaded systems, offering maximum installation flexibility.
Technical Attributes: Complete Set Sanitary Ball Valve Assembly
1,Size Range,1/2" to 4" (Full set components sized to match)
2,Valve Body,3-Piece 316L Stainless Steel (1.4404)
3,Included Ferrules,2x Matching Weld-on or Hose-shank Ferrules
4,Included Clamps,2x Heavy-Duty Double-Bolt or Single-Pin Clamps
5,Union Nut/Adapter,"SMS, DIN, or RJT Threaded Union Nut included"
6,Seat Design,Fully Encapsulated PTFE (Cavity Filler)
7,Gasket Material,"FDA-Grade EPDM, PTFE, or FKM (Viton)"
8,Bore Type,Full Bore (ID matches ferrule and tube ID)
9,Internal Finish,Mirror Polish Ra≤0.4μm
10,External Finish,Bright/Satin Polish Ra≤0.8μm
11,Max Pressure,10 Bar (145 psi) for the entire assembly
12,Temp. Range,−20∘C to +150∘C (Based on gasket/seat)
13,Operation,304SS Manual Handle with Locking Device
14,Mounting,ISO 5211 Pad for future automation
15,Compliance,"3-A Sanitary, FDA 21CFR, USP Class VI"
