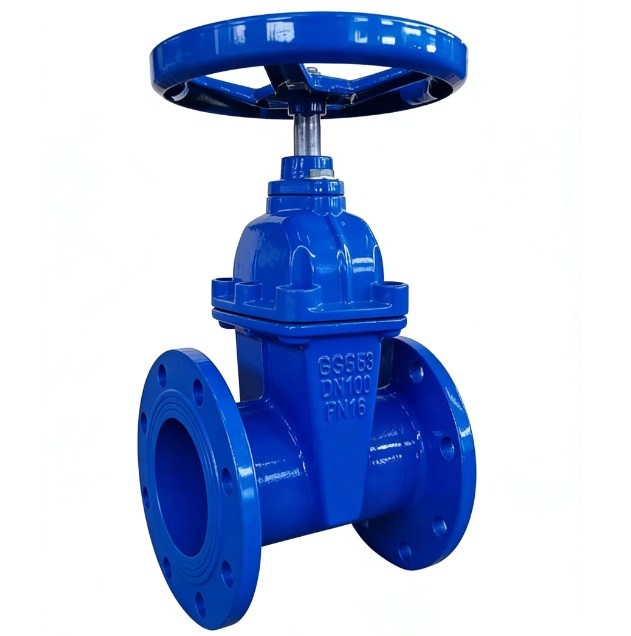

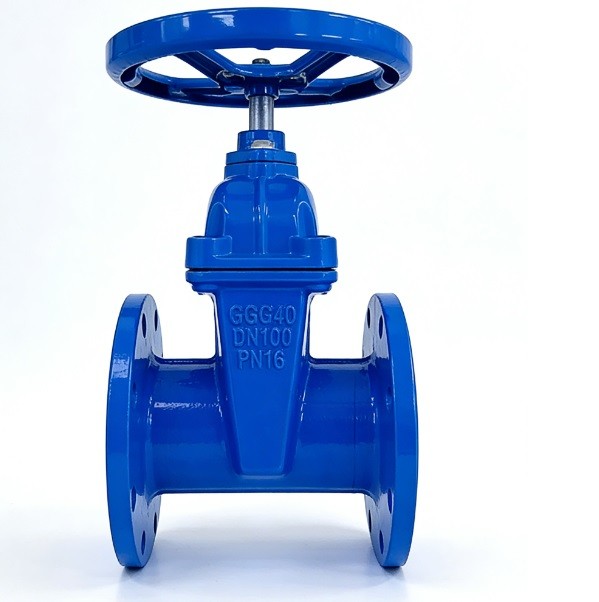

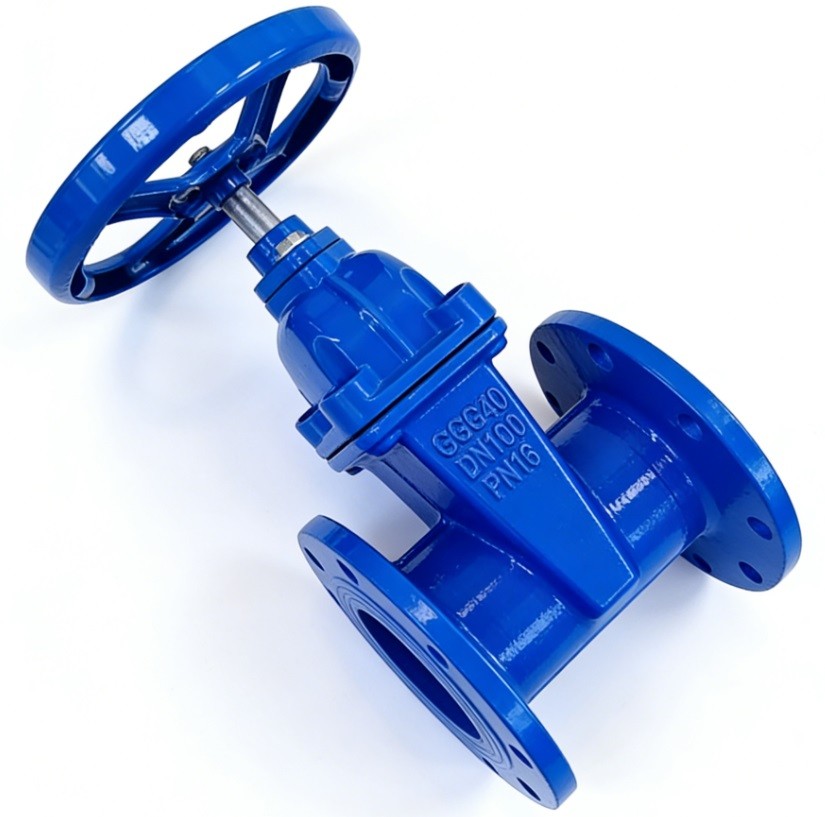

A BS5163 Resilient Seated Gate Valve is a modern, high-efficiency isolation valve designed primarily for potable water, wastewater, and irrigation systems. Manufactured according to British Standards, it replaces the traditional metal-seated design with a rubber-encapsulated wedge to ensure a "bubble-tight" seal even at low pressures.
1. Key Characteristics
BS 5163 Standard: This is the primary British Standard for gate valves in waterworks. It ensures the valve meets specific wall thickness, material strength, and testing requirements for municipal use.
Resilient Seated: The internal wedge (gate) is fully encapsulated in a high-grade elastomer (usually EPDM). When the valve closes, the rubber deforms to create a perfect seal against the smooth, epoxy-coated body.
NRS (Non-Rising Stem): Standard versions feature a stem that rotates but does not move vertically. This is ideal for buried service (using a surface box) or for use in chambers with limited height.
Full Bore Design: The valve has a straight-through passage with no "sump" or pocket at the bottom, preventing debris accumulation and minimizing pressure loss.
Technical Attributes incluld
1,Design Standard,BS 5163-1 / EN 1074-1 & 2 / EN 1171
2,Size Range,"DN50 to DN1200 (2"" to 48"")"
3,Stem Type,NRS (Non-Rising Stem)
4,Pressure Class,PN10 / PN16 (Standard) / PN25
5,Sealing Type,Resilient Seat (Soft Seal / Zero Leakage)
6,Body Material,Ductile Iron (GGG50 / EN-GJS-500-7)
7,Bonnet Material,Ductile Iron GGG50
8,Wedge Material,Ductile Iron + Full EPDM Encapsulation
9,Face-to-Face Dim.,BS EN 558 Series 3 (Standard BS 5163)
10,Stem Material,Stainless Steel AISI 420 / 431 / 316
11,Stem Nut,Brass (MS58) / Bronze
12,Stem Sealing,Triple O-ring system (Replaceable under pressure)
13,Coating,"Fusion Bonded Epoxy (FBE), Blue RAL 5005/5017"
14,Coating Thickness,≥ 250 Microns (Internal & External)
15,Bore Design,Full Bore / Flat Bottom (No pocket for debris)
16,Flange Drilling,BS EN 1092-2 (Formerly BS 4504)
17,Tightness Class,EN 12266-1 Rate A (Bubble-tight)
18,Operation,Square Cap (for T-key) or Handwheel
19,Temperature Range,0°C to +70°C (Potable Water Standard)
20,Closing Direction,Clockwise Close (CTC) or Anti-Clockwise (ACC)
21,Applicable Media,"Potable Water, Sewage, Neutral Liquids"
