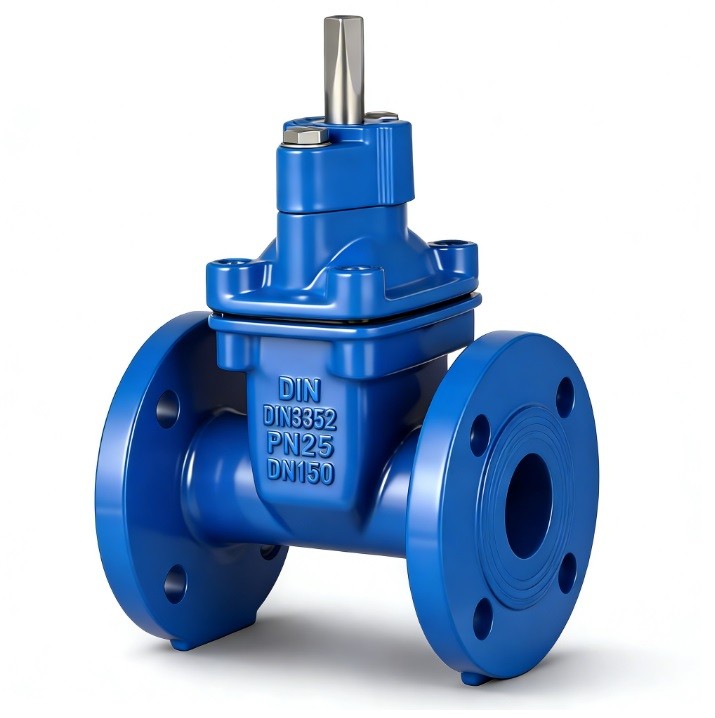

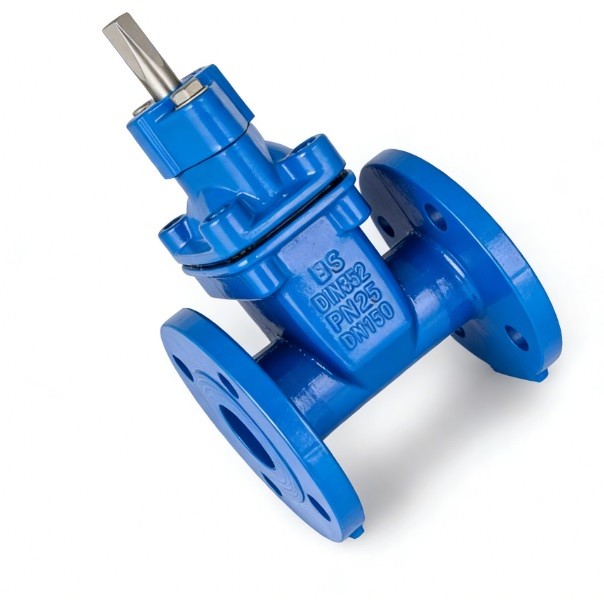

A DIN NRS Resilient Seated Gate Valve PN25 is a heavy-duty isolation valve designed for high-pressure water and wastewater applications. While most resilient seated valves are rated for PN10 or PN16, the PN25 rating signifies a reinforced design capable of withstanding a working pressure of up to 25 bar (362 psi).
1. Key Characteristics
High Pressure (PN25): Specifically engineered with a thicker ductile iron body and reinforced components to handle 2.5 MPa of pressure.
NRS (Non-Rising Stem): The stem rotates to move the internal wedge but does not move vertically. This is ideal for space-constrained or underground installations.
Resilient Seated: The internal gate (wedge) is fully encapsulated in high-grade elastomer (typically EPDM for water or NBR for sewage), providing a bubble-tight seal even if small debris is present in the pipeline.
DIN Standard: Manufactured to German/European engineering standards (typically DIN 3352 or EN 1074), ensuring interoperability with European-spec piping.
Technical Attributes：
1,Design Standard,DIN 3352-4 / EN 1074-1 & 2 / EN 1171
2,Pressure Rating,PN25 (Working Pressure: 2.5 MPa / 25 Bar)
3,Face-to-Face Standard,DIN 3202 F4 (Short Series) / EN 558 Series 14
4,Flange Connection,EN 1092-2 PN25 (Standard Drilling)
5,Stem Type,NRS (Non-Rising Stem)
6,Body Material,Ductile Iron EN-GJS-500-7 (GGG50)
7,Bonnet Material,Ductile Iron GGG50 (Reinforced for PN25)
8,Wedge Material,"Ductile Iron core, fully encapsulated in Elastomer"
9,Resilient Seat (Rubber),EPDM (Potable Water) or NBR (Sewage/Oil)
10,Stem Material,Stainless Steel AISI 420 / 431 / 316
11,Stem Nut Material,High-strength Brass or Bronze (CZ122 / CC499K)
12,Shell Test Pressure,37.5 Bar (1.5×PN)
13,Seat Test Pressure,27.5 Bar (1.1×PN)
14,Corrosion Protection,"Fusion Bonded Epoxy (FBE), Min. 250 Microns"
15,Sealing System,Triple O-ring stem seal (replaceable under pressure)
16,Temperature Range,−10°C to +80°C (standard); up to +120°C with special EPDM
17,Bore Type,"Full Bore (Straight passage, no debris pockets)"
18,Operation Options,"Handwheel, Square Nut (Cap), Gearbox, or Actuator"
19,Closing Direction,Clockwise to Close (CTC) as standard
20,Bolt & Nut Material,Carbon Steel 8.8 (Galvanized) or Stainless Steel A2/A4
21,Top Flange Mounting,Optional ISO 5211 flange for easy automation
